FRONT FRAME INNER ELEMENTS of Lamborghini Lamborghini Huracan LP610 Coupe

View All

Lamborghini Huracan LP610 Coupe - FRONT FRAME INNER ELEMENTS

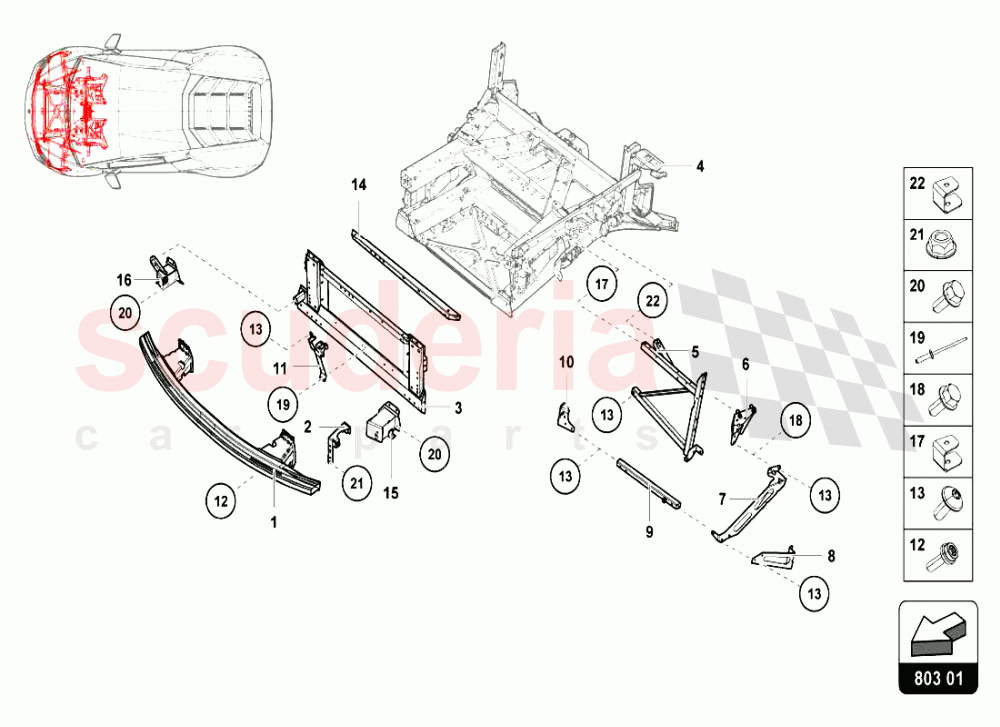

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	4T0807109D	STORAGE FRAME	4T0807109D STORAGE FRAME	$4,301.07	1
002	4T0805178B	MOUNTING BAR IN STOCK	4T0805178B MOUNTING BAR IN STOCK	$250.60	1
002	4T0805177B	MOUNTING BAR IN STOCK	4T0805177B MOUNTING BAR IN STOCK	$250.60	1
003	4T0805851B	FRONT BUMPERS CROSS MEMBER (CONTACT YOUR AREA MANAGER)	4T0805851B FRONT BUMPERS CROSS MEMBER (CONTACT YOUR AREA MANAGER)	$924.74	1
004	4T0805028K	FRONT END IN STOCK	4T0805028K FRONT END IN STOCK	$8,400.52	1
005	4T0806192B	BRACE	4T0806192B BRACE	$672.04	1
005	4T0806191B	BRACE	4T0806191B BRACE	$672.04	1
006	4T0806126D	SUPPORT	4T0806126D SUPPORT	$70.84	1
006	4T0806126C	LH Bracket	4T0806126C LH Bracket	$70.84	1
007	4T0805328C	ARM	4T0805328C ARM	$67.21	1
007	4T0805327C	ARM	4T0805327C ARM	$69.37	1
008	4T0805380C	ARM	4T0805380C ARM	$60.10	1
008	4T0805379C	ARM	4T0805379C ARM	$60.10	1
009	4T0805667D	FRONT LH REINFORCEMENT IN STOCK	4T0805667D FRONT LH REINFORCEMENT IN STOCK	$104.95	1
009	4T0805668D	BRACKET RIGHT IN STOCK	4T0805668D BRACKET RIGHT IN STOCK	$105.23	1
010	4T0805255D	REINFORCEMENT IN STOCK	4T0805255D REINFORCEMENT IN STOCK	$47.16 MSRP: ~~80.30~~ (41.3% off)	1
010	4T0805256D	REINFORCEMENT	4T0805256D REINFORCEMENT	$45.66	1
011	4T0805532B	ARM	4T0805532B ARM	$69.92	1
012	N91104901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) IN STOCK	N91104901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) IN STOCK	$19.26	4
013	N91042302	OVAL HEXAGON SOCKET HEAD BOLT M6 X 16 IN STOCK	N91042302 OVAL HEXAGON SOCKET HEAD BOLT M6 X 16 IN STOCK	$1.60	22
014	4T0805563B	LOCK CARRIER	4T0805563B LOCK CARRIER	$104.98	1
015	4T0807551E	ARM	4T0807551E ARM	$272.19	1
016	4T0807552E	ARM	4T0807552E ARM	$329.30	1
017	4S0806508B	RETAINING PLATE IN STOCK	4S0806508B RETAINING PLATE IN STOCK	$29.24	1
017	4S0806507B	RETAINING PLATE	4S0806507B RETAINING PLATE	$16.70	1
018	N90533005	HEXAGON HEAD BOLT (COMBI) IN STOCK	N90533005 HEXAGON HEAD BOLT (COMBI) IN STOCK	$1.96 MSRP: ~~7.27~~ (73% off)	8
019	N90692402	POP RIVET IN STOCK	N90692402 POP RIVET IN STOCK	$1.68 MSRP: ~~7.14~~ (76.5% off)	2
020	N10049308	HEXAGON HEAD BOLT (COMBI) IN STOCK	N10049308 HEXAGON HEAD BOLT (COMBI) IN STOCK	$1.74	7
021	N10609201	HEXAGON COLLAR NUT IN STOCK	N10609201 HEXAGON COLLAR NUT IN STOCK	$0.43 MSRP: ~~7.34~~ (94.1% off)	4
022	4S0805371B	RETAINING PLATE	4S0805371B RETAINING PLATE	$26.49	1
022	4S0805372B	RETAINING PLATE	4S0805372B RETAINING PLATE	$26.49	1
