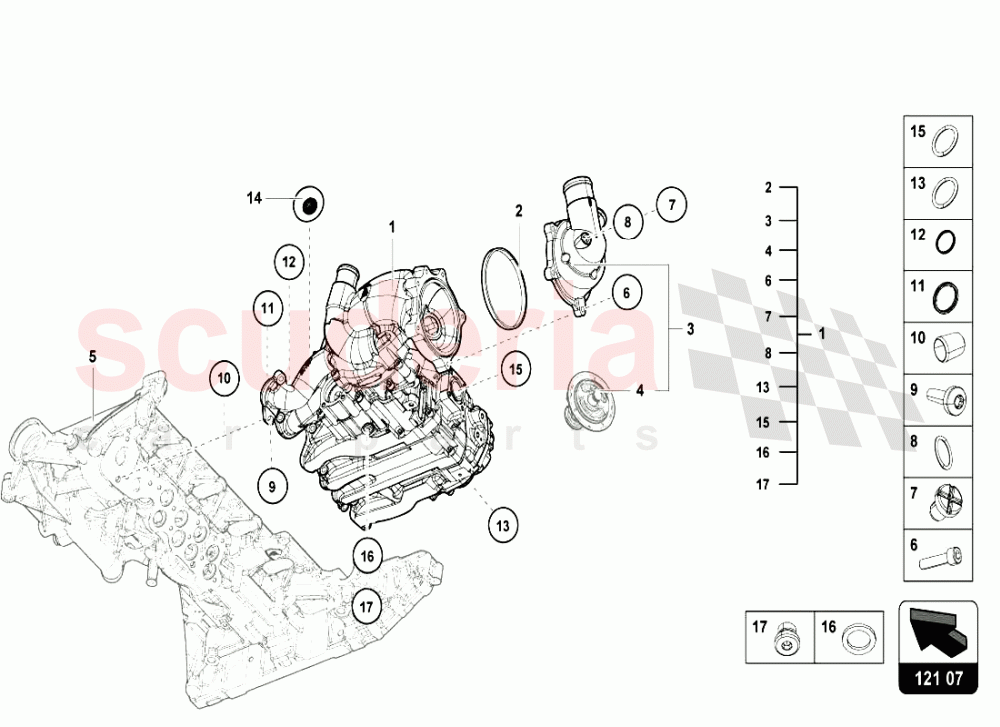

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7L115009AL	PUMP ASSEMBLY	7L115009AL PUMP ASSEMBLY	$5,618.26	1
002	79121119C	SEAL IN STOCK	79121119C SEAL IN STOCK	$18.20	1
003	79121115AT	WATER THERMOSTAT BODY	79121115AT WATER THERMOSTAT BODY	$678.76	1
006	WHT003868	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	WHT003868 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	$21.91	1
007	WHT003874	SEAL BOLT WITH SEALING RING	WHT003874 SEAL BOLT WITH SEALING RING	$5.72	1
009	N10700201	HEXAGON SOCKET HEAD BOLT IN STOCK	N10700201 HEXAGON SOCKET HEAD BOLT IN STOCK	$2.96 MSRP: ~~7.25~~ (59.2% off)	1
010	N91020803	DOWEL SLEEVE IN STOCK	N91020803 DOWEL SLEEVE IN STOCK	$2.50 MSRP: ~~7.07~~ (64.6% off)	1
011	7L121119B	O-RING IN STOCK	7L121119B O-RING IN STOCK	$49.16	1
012	7L115446A	ENGINE OIL PUMP SEAL IN STOCK	7L115446A ENGINE OIL PUMP SEAL IN STOCK	$31.78	1
013	WHT003731	O-RING 27 X 3.5 IN STOCK	WHT003731 O-RING 27 X 3.5 IN STOCK	$27.78	1
014	7L103081	OIL STRAINER IN STOCK	7L103081 OIL STRAINER IN STOCK	$28.05	1
015	WHT003732	O-RING IN STOCK	WHT003732 O-RING IN STOCK	$27.78	1
016	N0138115	SEAL RING IN STOCK	N0138115 SEAL RING IN STOCK	$5.57 MSRP: ~~7.29~~ (23.6% off)	1
017	N0160243	SEALING PLUG	N0160243 SEALING PLUG	$5.45	1
