Rear Frame Outer Elements

Lamborghini Huracan LP610 Coupe

Find Your Part

Lamborghini Huracan LP610 Coupe - REAR FRAME OUTER ELEMENTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

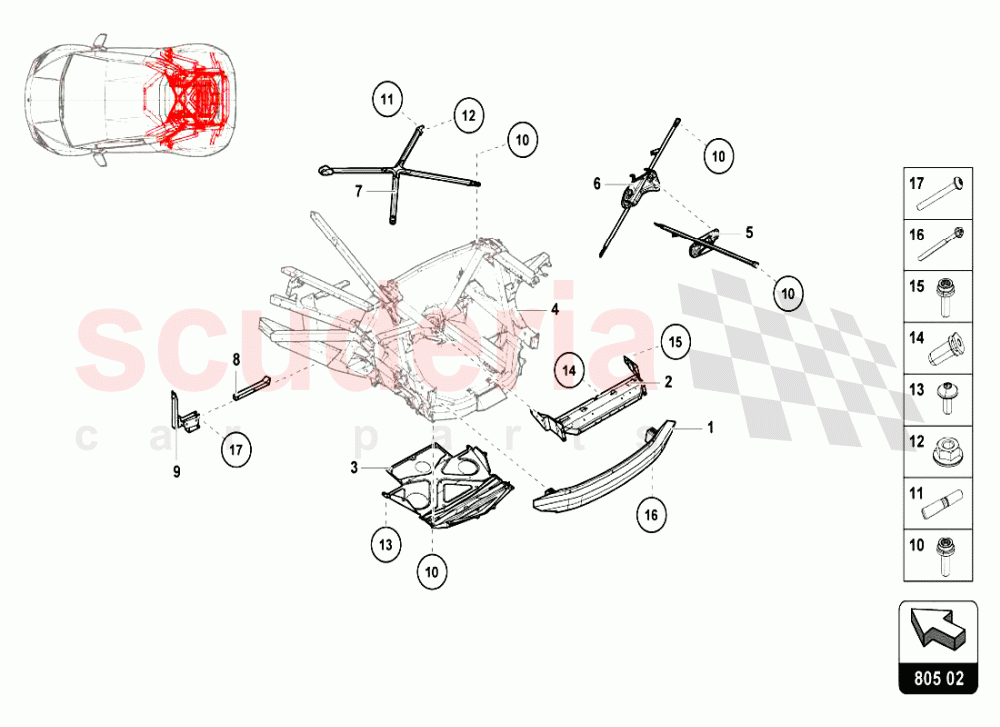

REAR FRAME OUTER ELEMENTS of Lamborghini Lamborghini Huracan LP610 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4T0807313B
CROSS MEMBER (CONTACT YOUR AREA MANAGER) 		$3,817.19 1
002 4T8813335B
CROSS MEMBER (CONTACT YOUR AREA MANAGER) 		$1,057.79 1
003 4S0825203B
COVER (CONTACT YOUR AREA MANAGER) 		$358.87 1
005 4S0813905B
Brace (contact Your Area Manager) 		$183.47 1
006 4S0813906B
Brace (contact Your Area Manager) 		$204.99 1
007 4T8814587C
Trim Frame Rear Part (contact Your Area Manager) 		$470.44 1
008 4T0801781B
SUPPORT 		$79.86 1
008 4T0801782B
SUPPORT 		$79.86 1
009 4T0814541B
Bracket (contact Your Area Manager-left) 		$268.15 1
009 4T0814542B
BRACKET 		$146.51 1
010 N91128001
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
IN STOCK 		$1.43 (80.2% off) 6
011 N91145002
THREADED PIN
IN STOCK 		$6.40 2
012 N90798805
HEXAGON COLLAR NUT
IN STOCK 		$2.08 (71.5% off) 2
013 N91042302
OVAL HEXAGON SOCKET HEAD BOLT M6 X 16
IN STOCK 		$1.60 13
014 8H0806221
COMPENSATING PIECE 		$11.16 4
015 N91176701
INNER MULTIPOINT FITTING SCREW
IN STOCK 		$2.50 (65.2% off) 4
016 N10714501
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
IN STOCK 		$3.55 2
017 N91097301
HEXAGON SOCKET FLAT HEAD BOLT
IN STOCK 		$1.96 (73% off) 4
