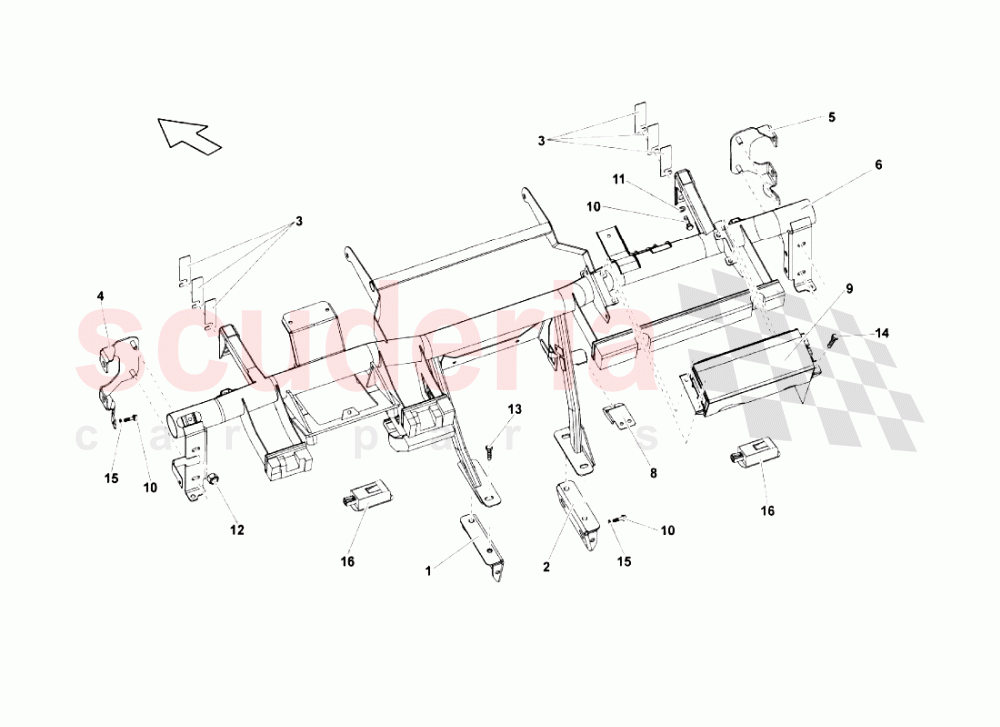

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400857195A	LH BRACKET	400857195A LH BRACKET	$41.33	1
002	400857196A	RH BRACKET	400857196A RH BRACKET	$41.33	1
004	400857245B	LH BRACKET	400857245B LH BRACKET	$45.91	1
005	400857246B	RH BRACKET	400857246B RH BRACKET	$45.91	1
006	404857017C	CROSS MEMBER	404857017C CROSS MEMBER	$1,559.13	1
006	402857017F	CROSS MEMBER (ADDITIONAL LIGHTS)	402857017F CROSS MEMBER (ADDITIONAL LIGHTS)	$1,451.61	1
008	402857690	BRACKET	402857690 BRACKET	$13.19	1
009	3D0880204D	AIR BAG MODULE	3D0880204D AIR BAG MODULE	$2,493.28	1
010	N91048802	SCREW WITH INT. SERRATIONS	N91048802 SCREW WITH INT. SERRATIONS	$34.48	10
011	N90536602	WASHER	N90536602 WASHER	$0.28 MSRP: ~~7.36~~ (96.2% off)	2
012	N10609202	HEXAGON COLLAR NUT	N10609202 HEXAGON COLLAR NUT	$0.37	4
013	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	$1.74	4
014	N90708003	SCREW M6X14	N90708003 SCREW M6X14	$0.95 MSRP: ~~7.24~~ (86.9% off)	4
015	N90899502	WASHER	N90899502 WASHER	$0.98 MSRP: ~~7.23~~ (86.4% off)	8
016	4E0947415	LIGHT	4E0947415 LIGHT	$26.24	2
