Windows of Lamborghini Lamborghini Gallardo LP570 4 SL

View All

Lamborghini Gallardo LP570 4 SL - Windows

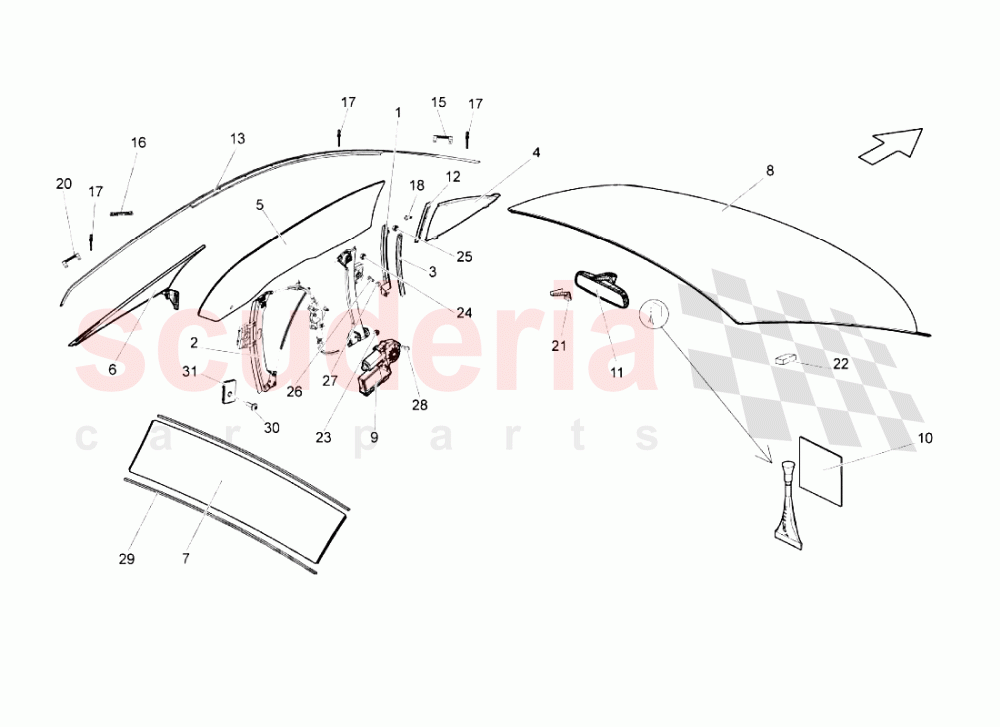

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400831619B	LH GUIDE	400831619B LH GUIDE	$587.37	1
001	400831620B	RH GUIDE	400831620B RH GUIDE	$587.37	1
002	400837462	RIGHT DOOR POWER WINDOW ASSEMBLY IN STOCK	400837462 RIGHT DOOR POWER WINDOW ASSEMBLY IN STOCK	$969.10	1
002	400837461	LH POWER WINDOW ASSEMBLY IN STOCK	400837461 LH POWER WINDOW ASSEMBLY IN STOCK	$1,000.97	1
003	400837933	LH GASKET	400837933 LH GASKET	$41.13	1
003	400837934	RH GASKET	400837934 RH GASKET	$41.13	1
004	400845115A	FIXED FRONT LEFT WINDOW GLASS	400845115A FIXED FRONT LEFT WINDOW GLASS	$752.69	1
004	400845116A	FIXED FRONT RIGHT WINDOW GLASS	400845116A FIXED FRONT RIGHT WINDOW GLASS	$752.69	1
005	400845202A	RIGHT DOOR WINDOW	400845202A RIGHT DOOR WINDOW	$1,431.45	1
005	400845201A	Left Door Window	400845201A Left Door Window	$1,431.45	1
006	403845299	LH REAR WINDOW	403845299 LH REAR WINDOW	$7,883.05	1
006	403845300	RH REAR WINDOW	403845300 RH REAR WINDOW	$7,883.05	1
007	403845501	REAR WINDOW	403845501 REAR WINDOW	$5,712.36	1

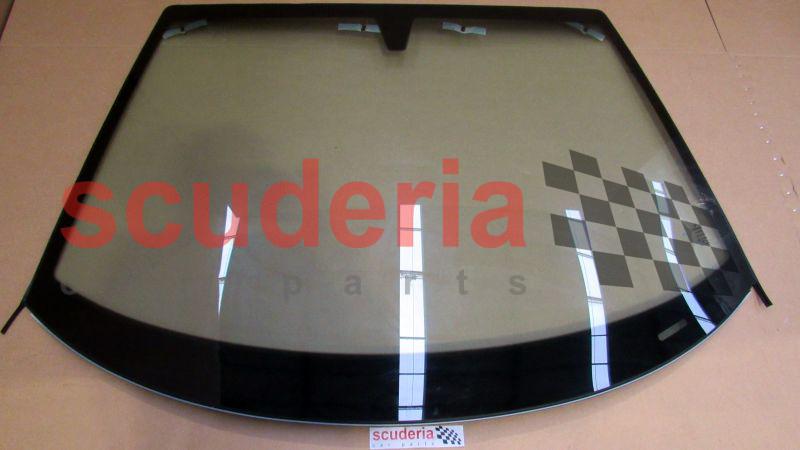

008	403845099A	WINDSCREEN IN STOCK	403845099A WINDSCREEN IN STOCK	$6,270.16	1
009	402959801D	LEFT MOTOR (FOR GDX CARS)	402959801D LEFT MOTOR (FOR GDX CARS)	$927.43	1
009	402959802D	RIGHT MOTOR (FOR GDX CARS)	402959802D RIGHT MOTOR (FOR GDX CARS)	$927.43	1
011	8D0857511A	REAR VIEW MIRROR	8D0857511A REAR VIEW MIRROR	$131.90	1
012	400837440	RH GUIDE	400837440 RH GUIDE	$377.70	1
012	400837439	LH GUIDE	400837439 LH GUIDE	$377.70	1
013	408853704B	RH GUIDE	408853704B RH GUIDE	$615.60	1
013	408853703B	LH GUIDE	408853703B LH GUIDE	$615.60	1
015	400853929A	CLIP	400853929A CLIP	$55.85	2
016	8N8853707	CLIP IN STOCK	8N8853707 CLIP IN STOCK	$2.42 MSRP: ~~7.10~~ (65.9% off)	6
017	N91019701	POP RIVET IN STOCK	N91019701 POP RIVET IN STOCK	$0.82 MSRP: ~~7.28~~ (88.7% off)	24
018	N90986803	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90986803 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$1.01	8
020	400853930A	CLIP	400853930A CLIP	$55.85	2
022	400845235	SPACER IN STOCK	400845235 SPACER IN STOCK	$0.67 MSRP: ~~7.29~~ (90.8% off)	14
023	N02300212	NUT M6	N02300212 NUT M6	$0.30 MSRP: ~~7.36~~ (95.9% off)	6
024	WHT000127	HEXAGON NUT	WHT000127 HEXAGON NUT	$17.13	2
025	WHT003112	NUT M5	WHT003112 NUT M5	$0.70	2
026	N90944603	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90944603 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.07	2
027	WHT000778	WASHER IN STOCK	WHT000778 WASHER IN STOCK	$0.64	2
028	8Z0837691C	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	8Z0837691C HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	6
029	403845123A	RUBBER SHIM	403845123A RUBBER SHIM	$3.09	2
030	WHT001418	SCREW M8X20	WHT001418 SCREW M8X20	$1.68	2
031	8H0845233	BRACKET	8H0845233 BRACKET	$5.51	2
