Doors 3 of Lamborghini Lamborghini Gallardo LP570 4 SL

View All

Lamborghini Gallardo LP570 4 SL - Doors 3

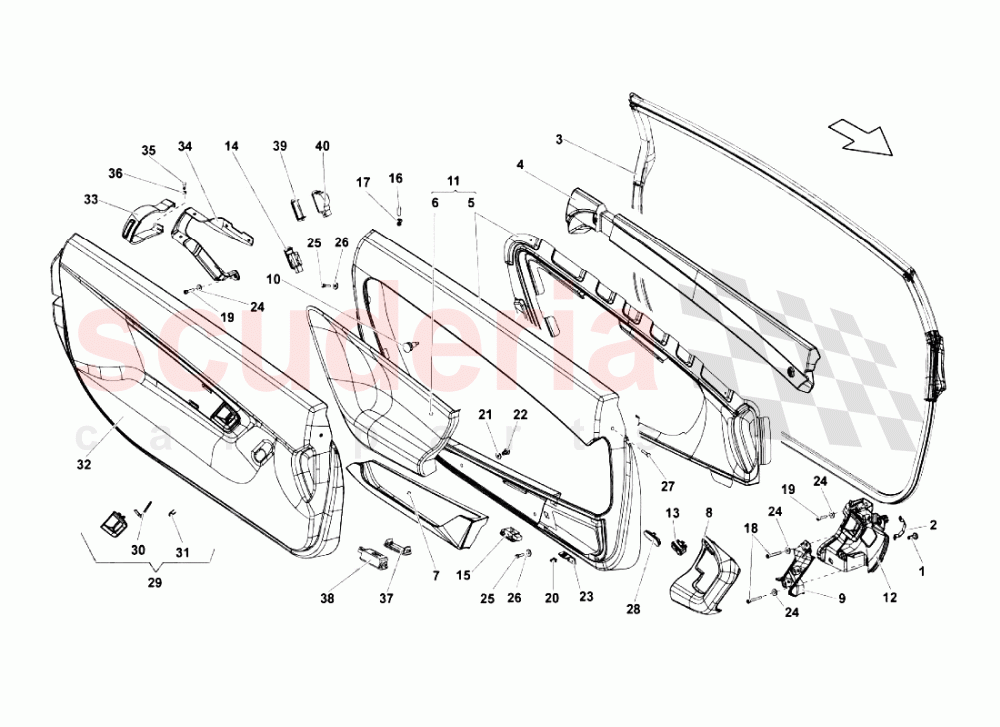

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT000767	SCREW	WHT000767 SCREW	$0.09 MSRP: ~~7.38~~ (98.8% off)	4
002	400035243	TWEETER SUPPORT BRACKET	400035243 TWEETER SUPPORT BRACKET	$11.41	2
003	400831707	LEFT DOOR WEATHERSTRIP, INNER	400831707 LEFT DOOR WEATHERSTRIP, INNER	$1,024.19	1
003	400831708	RIGHT DOOR WEATHERSTRIP, INNER	400831708 RIGHT DOOR WEATHERSTRIP, INNER	$1,024.19	1
004	400837967C	DOOR CRASH PAD	400837967C DOOR CRASH PAD	$70.02	1
004	400837968C	DOOR CRASH PAD	400837968C DOOR CRASH PAD	$70.02	1
013	400962107A	DOOR LOCK/UNLOCK SWITCH (WITH SERIGRAPHY)	400962107A DOOR LOCK/UNLOCK SWITCH (WITH SERIGRAPHY)	$418.01	2
013	400962107B	DOOR LOCK/UNLOCK SWITCH (WITHOUT SERIGRAPHY)	400962107B DOOR LOCK/UNLOCK SWITCH (WITHOUT SERIGRAPHY)	$37.62	2
016	8N0919238	WARNING LAMP	8N0919238 WARNING LAMP	$54.85	1
017	8Z0919424A4PK	SLEEVE DWA	8Z0919424A4PK SLEEVE DWA	-	2	Enquire
019	N10544302	SOCKET HEAD BOLT	N10544302 SOCKET HEAD BOLT	$0.98 MSRP: ~~7.27~~ (86.5% off)	2
025	WHT003111	SCREW M5X16	WHT003111 SCREW M5X16	$1.13 MSRP: ~~7.21~~ (84.3% off)	2
026	WHT000778	WASHER	WHT000778 WASHER	$0.64	2
027	N10621601	HEX SOCKET OVAL HEAD COLLARED	N10621601 HEX SOCKET OVAL HEAD COLLARED	$2.29	2
028	402837232C	PLUG	402837232C PLUG	$34.54	1
029	400837116B	RH HANDLE KIT (DECORLACK PAINTED)	400837116B RH HANDLE KIT (DECORLACK PAINTED)	$799.73	1
029	400837116A	RH HANDLE KIT (CARBON INTERIOR)	400837116A RH HANDLE KIT (CARBON INTERIOR)	$1,713.73	1
029	400837115A	LH HANDLE KIT (CARBON INTERIOR)	400837115A LH HANDLE KIT (CARBON INTERIOR)	$1,713.73	1
029	400837115B	LH HANDLE KIT (DECORLACK PAINTED)	400837115B LH HANDLE KIT (DECORLACK PAINTED)	$799.73	1
032	404867105E	LH DOOR PANEL ASSEMBLY (WITH PREDISPOSITION FOR LOUDSPEAKER)	404867105E LH DOOR PANEL ASSEMBLY (WITH PREDISPOSITION FOR LOUDSPEAKER)	$14,825.24	1
032	404867106E	RH DOOR PANEL ASSEMBLY (WITH PREDISPOSITION FOR LOUDSPEAKER)	404867106E RH DOOR PANEL ASSEMBLY (WITH PREDISPOSITION FOR LOUDSPEAKER)	$14,825.24	1
033	403837221	LH HANDLE	403837221 LH HANDLE	$905.93	1
033	403837222	RH HANDLE	403837222 RH HANDLE	$905.93	1
034	403837896	RH BRACKET	403837896 RH BRACKET	$853.50	1
034	403837895	LH BRACKET	403837895 LH BRACKET	$853.50	1
035	N90807405	HEX SOCKET OVAL HEAD COLLARED	N90807405 HEX SOCKET OVAL HEAD COLLARED	$0.64	4
036	N10017304	HEXAGON COLLAR NUT	N10017304 HEXAGON COLLAR NUT	$1.81	4
037	8E0867443	DUMMY COVER	8E0867443 DUMMY COVER	$10.49	2
038	4E0947415	LIGHT	4E0947415 LIGHT	$26.24	2
039	8P0947412	REAR LIGHT REFLECTOR	8P0947412 REAR LIGHT REFLECTOR	$8.62	2
040	6Y0947411	DOOR WARNING LIGHT	6Y0947411 DOOR WARNING LIGHT	$28.90	2
