Rear Fender

Find Your Part

Lamborghini Gallardo LP570 4 SL - Rear Fender

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

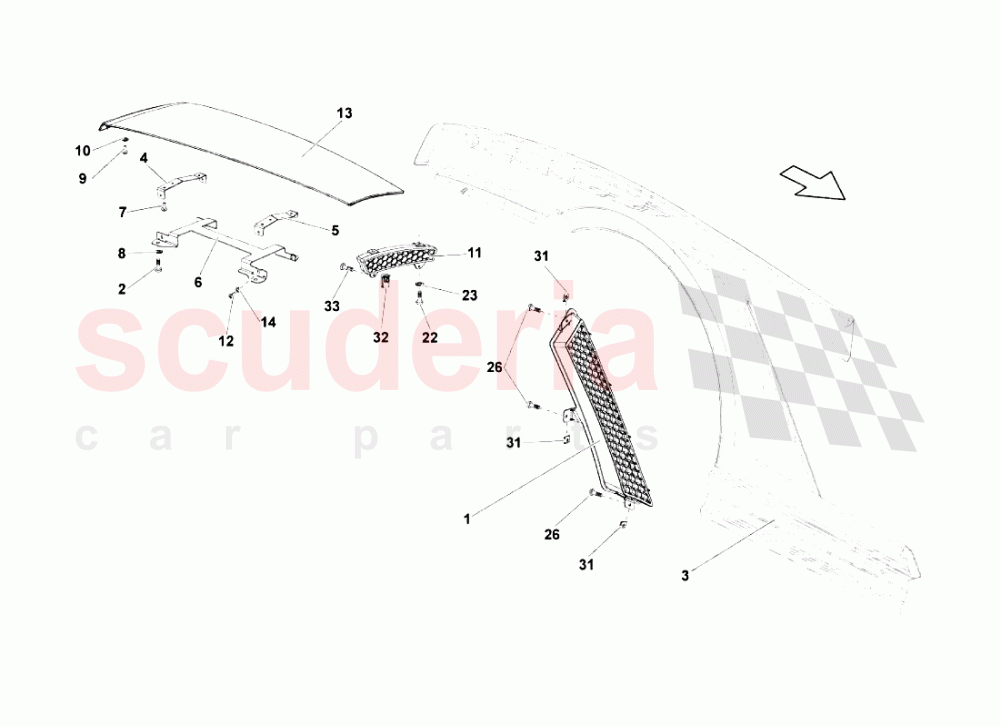

Rear Fender of Lamborghini Lamborghini Gallardo LP570 4 SL Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 400317115
AIR INTAKE GRID, LH 		$603.51 1
001 400317116
AIR INTAKE GRID, RH 		$603.51 1
002 N0402936
HEXAGON BOLT 		$1.89 (74% off) 8
004 408827588A
RH BRACKET 		$24.72 1
004 408827587A
LH BRACKET 		$24.72 1
005 408827587
LH BRACKET 		$24.72 1
005 408827588
RH BRACKET 		$24.72 1
006 408827606
RH BRACKET 		$59.36 1
006 408827605
LH BRACKET 		$59.36 1
007 N10335202
OVAL HEXAGON SOCKET HEAD BOLT 		$1.04 (85.7% off) 8
008 N10612001
WASHER 		$0.48 8
009 N10335202
OVAL HEXAGON SOCKET HEAD BOLT 		$1.04 (85.7% off) 4
010 N0115478
WASHER 		$0.28 (96.2% off) 4
011 400827967A
GRID, LH 		$489.25 1
011 400827968A
GRID, RH 		$489.25 1
012 N10335202
OVAL HEXAGON SOCKET HEAD BOLT 		$1.04 (85.7% off) 8
013 400827994C
SIDE COVER, RH 		$1,326.60 1
013 400827993C
SIDE COVER, LH 		$1,326.60 1
014 N0115478
WASHER 		$0.28 (96.2% off) 8
022 N90986803
HEXAGON SOCKET HEAD PANEL BOLT 		$1.01 4
023 WHT000778
WASHER 		$0.64 4
026 N90986803
HEXAGON SOCKET HEAD PANEL BOLT 		$1.01 6
031 N0154487
SPEED NUT 		$0.53 6
032 N91104501
CLIP 		$41.47 4
033 N90807405
HEX SOCKET OVAL HEAD COLLARED 		$0.64 4
