Aesthetic Heat of Lamborghini Lamborghini Gallardo LP570 4 SL

View All

Lamborghini Gallardo LP570 4 SL - Aesthetic Heat

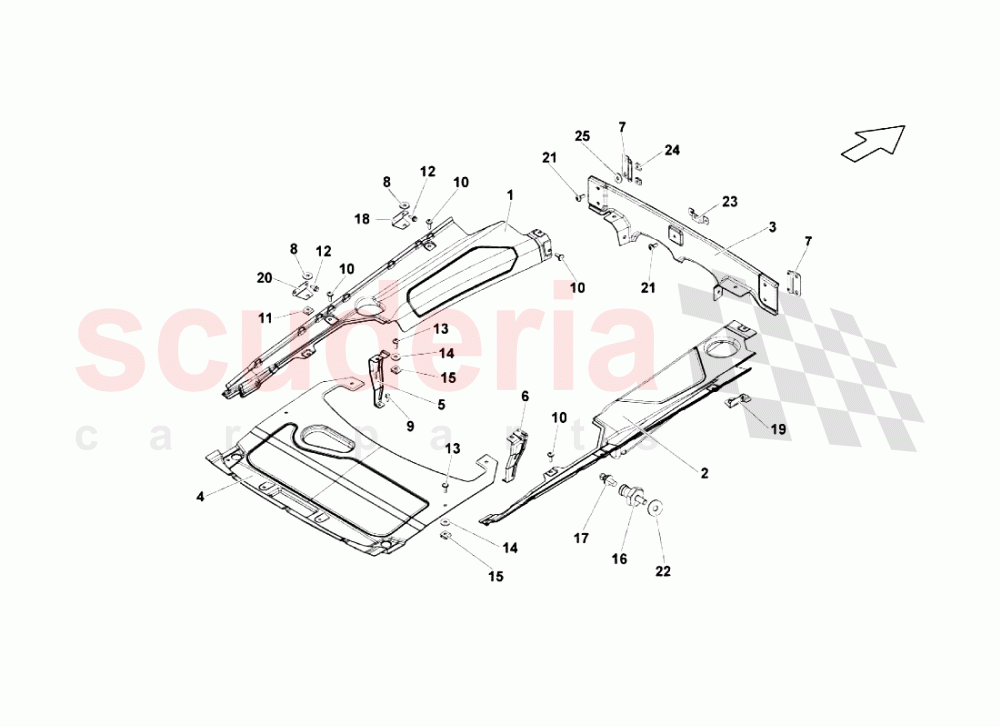

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7L103723R	COVER (CARBON PACKAGE)	7L103723R COVER (CARBON PACKAGE)	-	1	Enquire
002	7L103724P	COVER (CARBON PACKAGE)	7L103724P COVER (CARBON PACKAGE)	-	1	Enquire
003	7L103927K	COVER PART (CARBON PACKAGE)	7L103927K COVER PART (CARBON PACKAGE)	-	1	Enquire
004	7L103928H	COVER PART (CARBON PACKAGE)	7L103928H COVER PART (CARBON PACKAGE)	-	1	Enquire
005	7L103943C	BRACKET,COVER PART	7L103943C BRACKET,COVER PART	-	1	Enquire
006	7L103944B	BRACKET,COVER PART	7L103944B BRACKET,COVER PART	-	1	Enquire
007	400823329B	BRACKET	400823329B BRACKET	-	2	Enquire
008	4A0805137A	RETAINING WASHER	4A0805137A RETAINING WASHER	-	8	Enquire
009	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	-	2	Enquire
010	420805121	GRIP PIN	420805121 GRIP PIN	-	8	Enquire
011	8D0805960	SPEED NUT	8D0805960 SPEED NUT	-	8	Enquire
012	N90900401	HEX SOCKET OVAL HEAD COLLARED	N90900401 HEX SOCKET OVAL HEAD COLLARED	-	6	Enquire
013	420805121	GRIP PIN	420805121 GRIP PIN	-	8	Enquire
014	4A0805137A	RETAINING WASHER	4A0805137A RETAINING WASHER	-	8	Enquire
015	8D0805960	SPEED NUT	8D0805960 SPEED NUT	-	8	Enquire
016	400103145A	SPACER PIPE	400103145A SPACER PIPE	-	1	Enquire
017	895827439D	BALL STUD	895827439D BALL STUD	-	1	Enquire
018	400103585D	LH BRACKET	400103585D LH BRACKET	-	1	Enquire
019	400103584E	RH BRACKET	400103584E RH BRACKET	-	1	Enquire
020	400103584F	BRACKET	400103584F BRACKET	-	2	Enquire
021	420805121	GRIP PIN	420805121 GRIP PIN	-	5	Enquire
022	N10094502	WASHER	N10094502 WASHER	-	1	Enquire
023	400103497	BRACKET	400103497 BRACKET	-	1	Enquire
024	8D0805960	SPEED NUT	8D0805960 SPEED NUT	-	5	Enquire
025	4A0805137A	RETAINING WASHER	4A0805137A RETAINING WASHER	-	5	Enquire
