Center Frame Elements 2

Find Your Part

Lamborghini Gallardo LP570 4 SL - Center Frame Elements 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

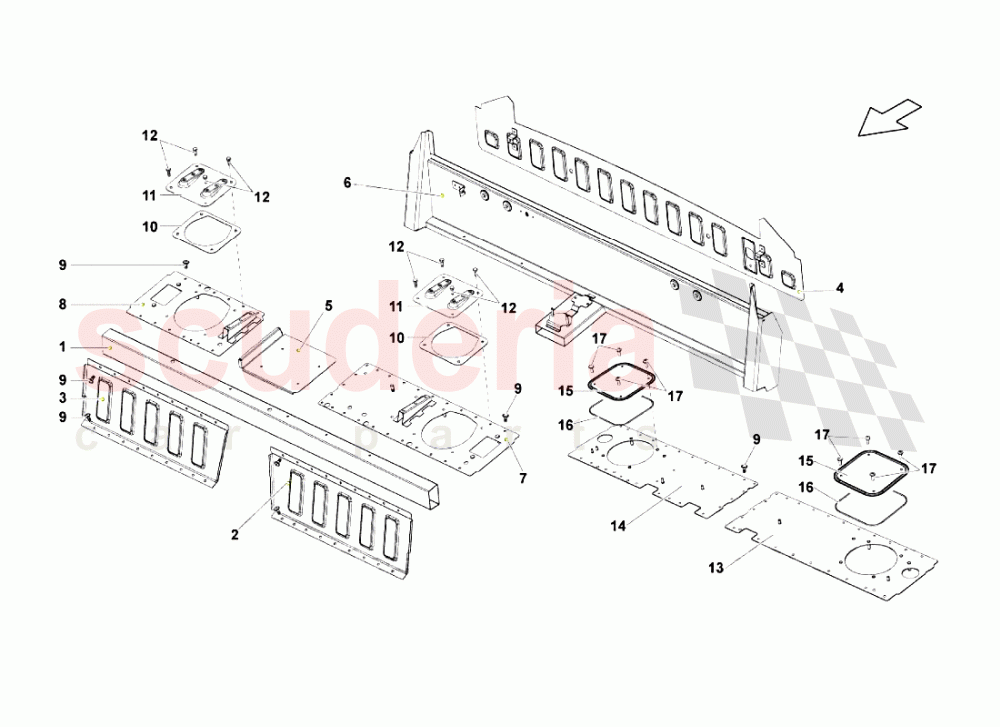

Center Frame Elements 2 of Lamborghini Lamborghini Gallardo LP570 4 SL Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 403803221A
CROSS MEMBER 		$2,573.92 1
002 408801275A
BOARD 		$392.49 1
003 408801276A
BOARD 		$392.49 1
004 408813501A
REAR PANEL 		$1,969.08 1
006 408813511A
REAR PANEL 		- 1 Enquire
009 N90919302
SCREW M5X18 		$0.77 (89.4% off) 82
013 408813503C
BOARD 		$423.39 1
014 408813504C
BOARD 		$431.44 1
015 420803961
COVER 		$12.24 2
016 420803963
GASKET 		$6.11 2
017 N91054001
SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD 		$1.04 (85.7% off) 8
