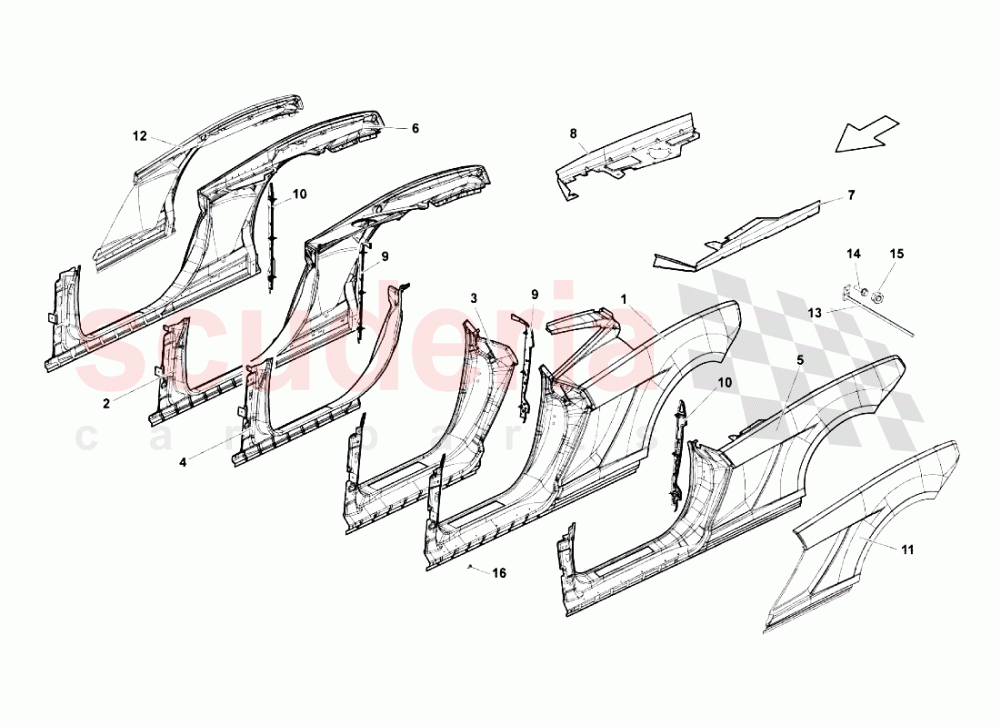

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	408809009B	LEFT SIDE COVER ASSEMBLY	408809009B LEFT SIDE COVER ASSEMBLY	$16,807.77	1
002	408809010B	RIGHT SIDE COVER ASSEMBLY	408809010B RIGHT SIDE COVER ASSEMBLY	$16,807.77	1
003	408810577A	DOOR FRAME	408810577A DOOR FRAME	$1,612.90	1
004	408810578A	DOOR FRAME	408810578A DOOR FRAME	$1,612.90	1
009	408809697	SUPPORT	408809697 SUPPORT	$129.97 MSRP: ~~1,050.00~~ (87.6% off)	2
011	408809603A	REAR FENDER, LH	408809603A REAR FENDER, LH	$14,919.30	1
012	408809604A	REAR FENDER, RH	408809604A REAR FENDER, RH	$14,919.30	1
013	400807707C	FENDER ADJUSTMENT BRACKET, INNER	400807707C FENDER ADJUSTMENT BRACKET, INNER	$96.11	2
014	N90847903	Screw M6X15	N90847903 Screw M6X15	$1.16	2
015	N10609202	HEXAGON COLLAR NUT	N10609202 HEXAGON COLLAR NUT	$0.37	4
016	N90821401	EXPANDING NUT	N90821401 EXPANDING NUT	$1.32 MSRP: ~~7.22~~ (81.7% off)	12
