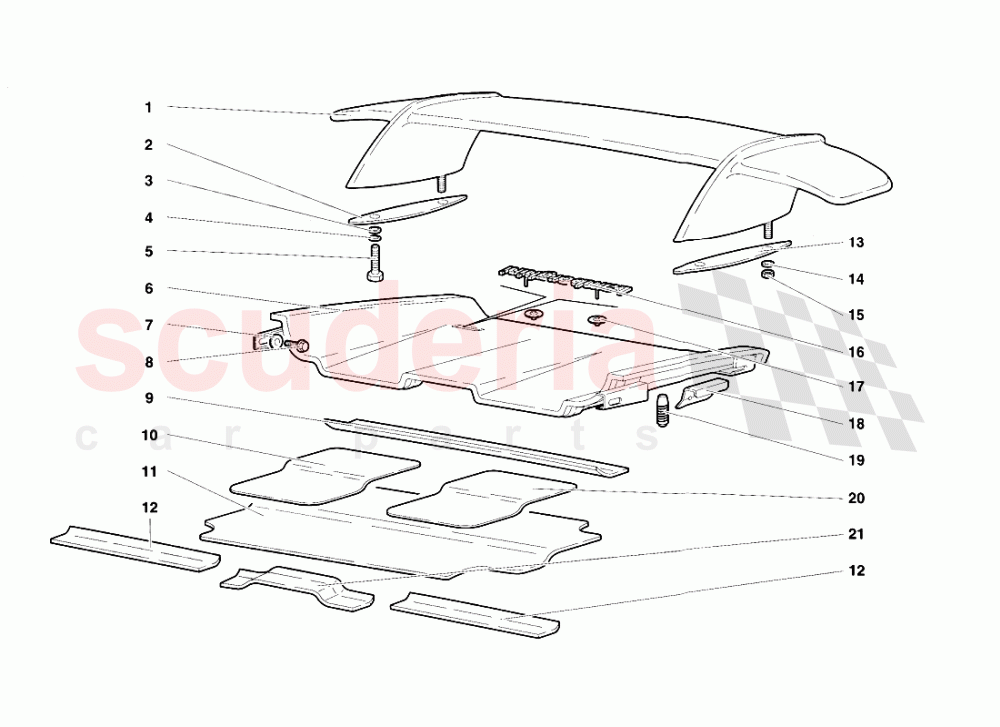

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9490000	PAINTED REAR WING	9490000 PAINTED REAR WING ALETTONE (OPTIONAL)	-	1	Enquire
001	9490000	PAINTED REAR WING	9490000 PAINTED REAR WING ALETTONE VERNICIATO	-	1	Enquire
002	9490005	RIGHT GASKET	9490005 RIGHT GASKET GUARNIZIONE DX	-	1	Enquire
003	N01152427	WASHER	N01152427 WASHER RONDELLA	-	2	Enquire
004	8410609	WASHER	8410609 WASHER RONDELLA	-	2	Enquire
005	8100621	SCREW	8100621 SCREW VITE	-	2	Enquire
006	9429001	REAR BONNET	9429001 REAR BONNET COFANO POSTERIORE	-	1	Enquire
007	WHT003093	Washer	WHT003093 Washer RONDELLA	-	2	Enquire
008	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	2	Enquire
009	9429111	CHANNEL	9429111 CHANNEL PROFILATO	-	1	Enquire
010	9455242	RIGHT LINING	9455242 RIGHT LINING ISOLAMENTO DX	-	1	Enquire
011	9455244	LINING	9455244 LINING ISOLAMENTO	-	1	Enquire
012	9429109	CHANNEL	9429109 CHANNEL PROFILATO	-	2	Enquire
013	9490006	LEFT GASKET	9490006 LEFT GASKET GUARNIZIONE SX	-	1	Enquire
014	8400606	WASHER	8400606 WASHER RONDELLA	-	2	Enquire
015	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	2	Enquire
017	8410305	CLIP	8410305 CLIP MOLLETTA	-	2	Enquire
018	9429112	CHANNEL	9429112 CHANNEL PROFILATO	-	2	Enquire
019	9460214	RUBBER BUMPER	9460214 RUBBER BUMPER TAMPONEGOMMA	-	2	Enquire
020	9455243	LEFT LINING	9455243 LEFT LINING ISOLAMENTO SX	-	1	Enquire
021	9429108	CHANNEL	9429108 CHANNEL PROFILATO	-	1	Enquire
