Doors 1 of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

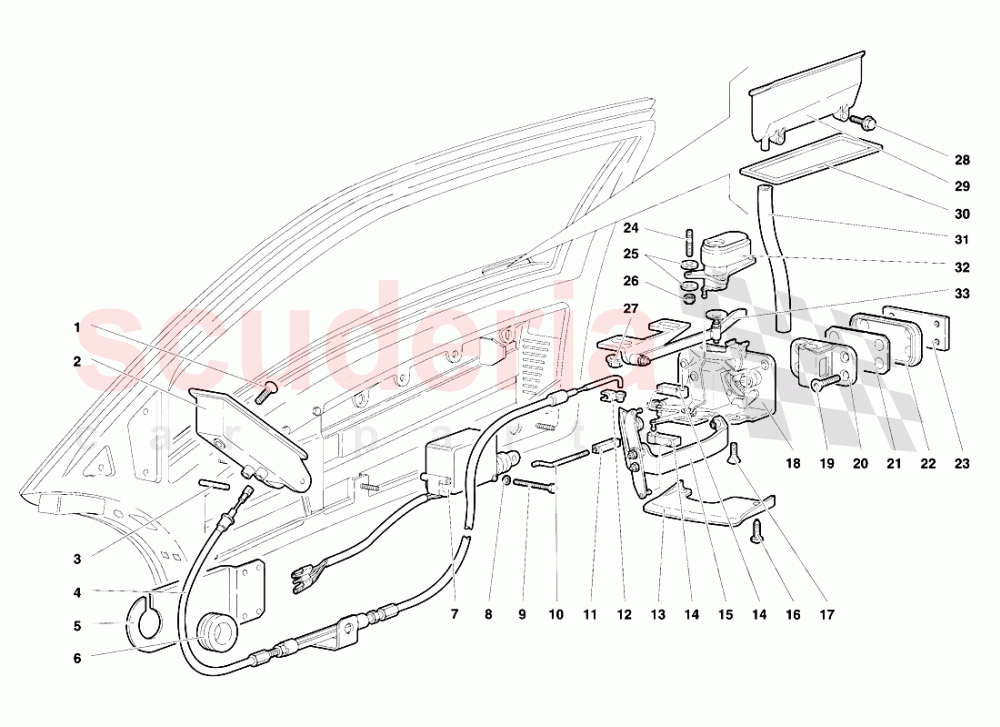

Lamborghini Diablo VT (1993-1998) - Doors 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8700539	SCREW	8700539 SCREW VITE	-	2	Enquire
002	410823537	DOOR OPENING INTERIOR HANDLE ASSEMBLY IN STOCK	410823537 DOOR OPENING INTERIOR HANDLE ASSEMBLY not as spare part - use part number: 410823537 IN STOCK	$1,305.01	2
003	8850304	PIN - SPINA	8850304 PIN - SPINA PERNO	$1.99	2
004	9421012	LEFT CABLE IN STOCK	9421012 LEFT CABLE CAVO SX IN STOCK	$1,347.60	1
004	9421011	RIGHT CABLE	9421011 RIGHT CABLE CAVO DX	$1,032.26	1
005	9421141	BRACKET	9421141 BRACKET STAFFA	$109.68	2
006	8612503	GASKET	8612503 GASKET GUARNIZIONE	$14.08 MSRP: ~~14.65~~ (3.9% off)	2
007	R1320008	RHS door actuator	R1320008 RHS door actuator	$468.99	1
007	R1320007	LHS door actuator	R1320007 LHS door actuator	$988.63	1
008	8400401	WASHER	8400401 WASHER RONDELLA	$0.13	4
009	8100404	SCREW	8100404 SCREW VITE	$0.64	4
010	9421252	TIE ROD	9421252 TIE ROD TIRANTE	$25.14	2
011	7021016	PAWL	7021016 PAWL NOTTOLINO	-	2	Enquire
012	9421251	CLIP	9421251 CLIP MOLLETTA	-	2	Enquire
013	9421237	LEFT SHIELD	9421237 LEFT SHIELD PROTEZIONE SX	$275.04	1
013	9421236	RIGHT SHIELD	9421236 RIGHT SHIELD PROTEZIONE DX	$192.94	1
014	9421214	COUPLING	9421214 COUPLING TESTINA	-	4	Enquire
015	9421254	LEFT IDLE LEVER	9421254 LEFT IDLE LEVER RINVIO A LEVA SX	$507.44	1
015	9421253	RIGHT IDLE LEVER	9421253 RIGHT IDLE LEVER RINVIO A LEVA DX	$507.44	1
016	8700332	SCREW IN STOCK	8700332 SCREW VITE IN STOCK	$0.40	4
017	8700613	SCREW	8700613 SCREW VITE	$0.16 MSRP: ~~7.37~~ (97.8% off)	8
018	410837015	LEFT LOCK	410837015 LEFT LOCK SERRATURA SX	$637.08	1
018	410837016	RIGHT LOCK	410837016 RIGHT LOCK SERRATURA DX	$637.08	1
019	8700610	SCREW IN STOCK	8700610 SCREW VITE IN STOCK	$0.67 MSRP: ~~7.29~~ (90.8% off)	8
020	410831407A	Hinge Half Left Hand IN STOCK	410831407A Hinge Half Left Hand RISCONTRO DX IN STOCK	$489.25	1
021	410837963	SPACER IN STOCK	410837963 SPACER DISTANZIALE IN STOCK	$16.19	4
021	410837964	SPACER	410837964 SPACER DISTANZIALE	$15.73	4
022	410837899	ORNAMENT IN STOCK	410837899 ORNAMENT IN STOCK	$15.91	2
023	7021253	PLATE	7021253 PLATE PIASTRA	$714.63	2
024	8300403	STUD	8300403 STUD PRIGIONIERO	$26.37 MSRP: ~~27.55~~ (4.3% off)	6
025	8400401	WASHER	8400401 WASHER RONDELLA	$0.13	12
026	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	6
027	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.21	4
028	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	$0.95	4
029	9421201	LEFT HANDLE	9421201 LEFT HANDLE MANIGLIA ESTERNA SX	$360.44	1
029	9421200	RIGHT HANDLE	9421200 RIGHT HANDLE MANIGLIA ESTERNA DX	$343.79	1
030	9421713	LEFT GASKET	9421713 LEFT GASKET GUARNIZIONE SX	$13.22	1
030	9421712	RIGHT GASKET	9421712 RIGHT GASKET GUARNIZIONE DX	$5.47 MSRP: ~~5.55~~ (1.4% off)	1
031	9421245	PIPE	9421245 PIPE TUBO	$17.89	2
032	72005036	LH & RH DOOR BUTTONS	72005036 LH & RH DOOR BUTTONS	$502.27	1
033	9421256	LEFT IDLE LEVER	9421256 LEFT IDLE LEVER RINVIO A LEVA SX	$507.44	1
033	9421255	RIGHT IDLE LEVER	9421255 RIGHT IDLE LEVER RINVIO A LEVA DX	$507.44	1
