Frame Elements of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

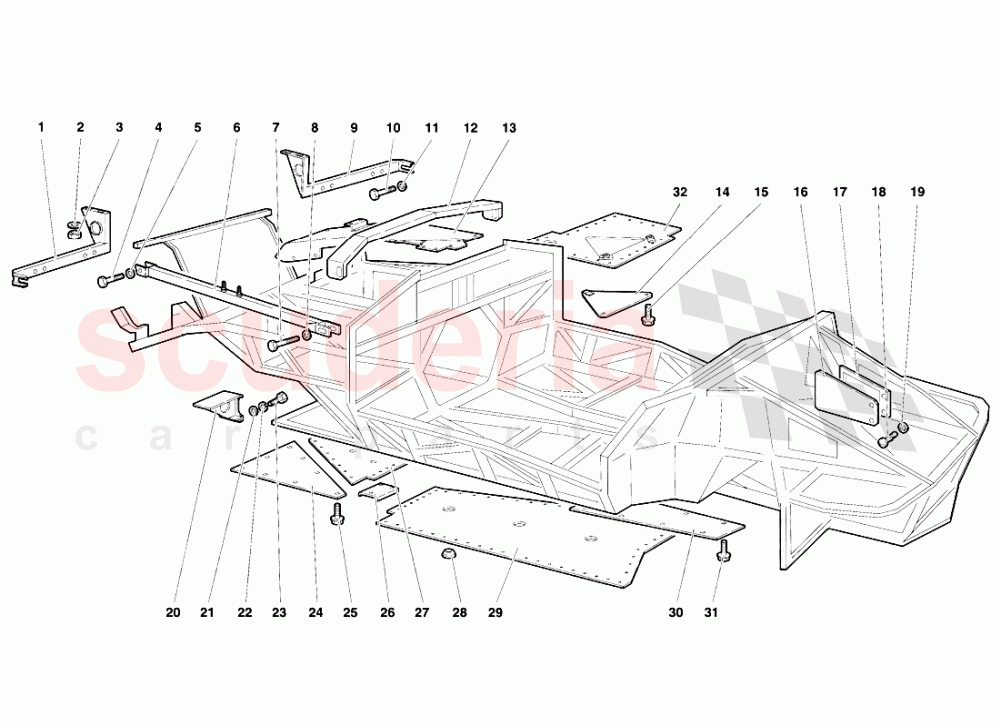

Lamborghini Diablo VT (1993-1998) - Frame Elements

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4131080	SUPPORT - SUPPORTO FANALE DESTRO	4131080 SUPPORT - SUPPORTO FANALE DESTRO O FANALE DESTRO	-	1	Enquire
002	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	4	Enquire
003	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING DADO	-	4	Enquire
004	N0147519	SCREW M8X50	N0147519 SCREW M8X50 VITE	-	2	Enquire
005	8410819	WASHER	8410819 WASHER RONDELLA	-	2	Enquire
006	4131415	LEFT ARM	4131415 LEFT ARM BRACCIO SINISTRO	-	1	Enquire
006	4131845	RIGHT ARM	4131845 RIGHT ARM BRACCIO DESTRO	-	1	Enquire
007	8700846	SCREW	8700846 SCREW VITE	-	2	Enquire
008	8410819	WASHER	8410819 WASHER RONDELLA	-	2	Enquire
009	4131079	SUPPORT - SUPPORTO FANALE SINISTRO	4131079 SUPPORT - SUPPORTO FANALE SINISTRO O FANALE SINISTRO	-	1	Enquire
010	N90319404	SCREW	N90319404 SCREW VITE	-	4	Enquire
011	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	4	Enquire
012	4131512	CROSSRAIL	4131512 CROSSRAIL TRAVERSA	-	1	Enquire
013	9411518	RIGHT SUPPORT	9411518 RIGHT SUPPORT SUPPORTO DESTRO	-	1	Enquire
013	9411519	LEFT SUPPORT	9411519 LEFT SUPPORT SUPPORTO SINISTRO	-	1	Enquire
014	4131098	PANEL	4131098 PANEL PANNELLO ISPEZIONE FILTRO OLIO	-	1	Enquire
015	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	2	Enquire
016	4130206	RIGHT PANEL	4130206 RIGHT PANEL PANNELLO ISPEZIONE ALZAFARI DX	-	1	Enquire
016	4130207	LEFT PANEL	4130207 LEFT PANEL PANNELLO ISPEZIONE ALZAFARI SX	-	1	Enquire
017	410805349	RH GASKET	410805349 RH GASKET GUARNIZIONE DESTRA	-	1	Enquire
017	9490205	LEFT GASKET	9490205 LEFT GASKET GUARNIZIONE SINISTRA	-	1	Enquire
018	4131085	PIN	4131085 PIN PERNO AGGANCIO RAPIDO	-	4	Enquire
019	7014263	RUBBER WASHER	7014263 RUBBER WASHER RONDELLA	-	4	Enquire
020	4133702	SUPPORT - SUPPORTO SERBATOIO BENZINA	4133702 SUPPORT - SUPPORTO SERBATOIO BENZINA O SERBATOIO BENZINA	-	1	Enquire
021	8400801	WASHER	8400801 WASHER RONDELLA	-	2	Enquire
022	8410819	WASHER	8410819 WASHER RONDELLA	-	2	Enquire
023	8100812	SCREW	8100812 SCREW VITE	-	2	Enquire
024	4131316	PANEL	4131316 PANEL PANNELLO ISPEZIONE FILTRI BENZINA	-	1	Enquire
025	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	8	Enquire
026	4133887	REINFORCEMENT	4133887 REINFORCEMENT RINFORZO PER MARTINETTO	-	2	Enquire
027	4131082	PANEL	4131082 PANEL PANNELLO	-	1	Enquire
028	4131483	PLUG	4131483 PLUG TAPPO	-	8	Enquire
029	4132858	RIGHT PANEL	4132858 RIGHT PANEL PANNELLO DESTRO	-	1	Enquire
029	4132895	LEFT PANEL	4132895 LEFT PANEL PANNELLO SINISTRO	-	1	Enquire
030	4130445	PANEL	4130445 PANEL PANNELLO	-	1	Enquire
031	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	8	Enquire
032	4131078	PANEL	4131078 PANEL PANNELLO	-	1	Enquire
