Lamborghini Diablo VT (1993-1998) - Lights

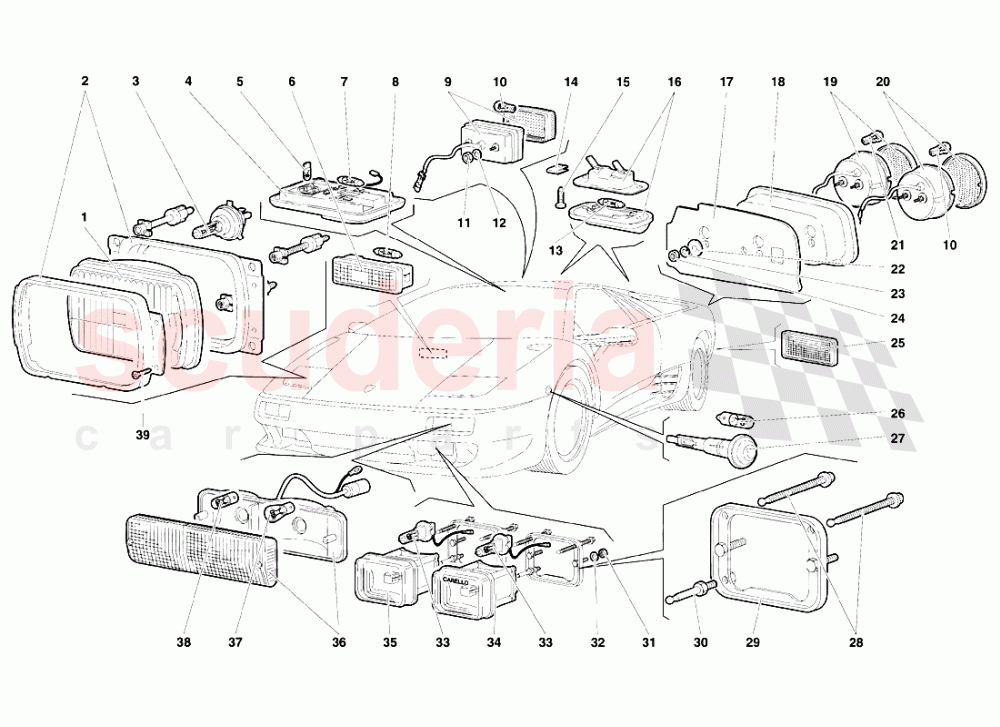

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	6331753	HEADLAMP	6331753 HEADLAMP PROIETTORE	-	2	Enquire
002	6331631	FRAME	6331631 FRAME CORNICE	-	2	Enquire
003	6329694	BULB	6329694 BULB LAMPADA	-	2	Enquire
004	6334454	CEILING LAMP	6334454 CEILING LAMP PLAFONIERA	-	1	Enquire
005	N0177522	LAMP 12V/3W	N0177522 LAMP 12V/3W LAMPADA	-	1	Enquire
006	6329700	CEILING LAMP	6329700 CEILING LAMP PLAFONIERA BAULE	-	1	Enquire
007	6617095	LAMP SV8,5-8 5W	6617095 LAMP SV8,5-8 5W LAMPADA	-	1	Enquire
008	6329698	BULB	6329698 BULB LAMPADA	-	1	Enquire
009	9430136	GRILLE	9430136 GRILLE RETRONEBBIA (SX)	-	1	Enquire
009	63001281	REVERSE LAMP	63001281 REVERSE LAMP FANALE RETROMARCIA (DX)	-	1	Enquire
010	6617094	LAMP BA 15S 21W	6617094 LAMP BA 15S 21W LAMPADA	-	4	Enquire
011	N0211963	NUT	N0211963 NUT DADO	-	4	Enquire
012	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	-	4	Enquire
013	6617095	LAMP SV8,5-8 5W	6617095 LAMP SV8,5-8 5W LAMPADA	-	2	Enquire
014	WHT003424	CLIP	WHT003424 CLIP MOLLETTA	-	4	Enquire
015	8700445	SCREW	8700445 SCREW VITE	-	4	Enquire
016	6328344	LICENCE PLATE LAMP	6328344 LICENCE PLATE LAMP FANALE TARGA	-	2	Enquire
017	9411301	LEFT LINING	9411301 LEFT LINING ISOLAMENTO SX	-	1	Enquire
017	9411300	RIGHT LINING	9411300 RIGHT LINING ISOLAMENTO DX	-	1	Enquire
018	9444002	RIGHT FRAME	9444002 RIGHT FRAME CORNICE DX	-	1	Enquire
018	9444003	LEFT FRAME	9444003 LEFT FRAME CORNICE SX	-	1	Enquire
019	6329828	TAIL LAMP / BRAKE L.	6329828 TAIL LAMP / BRAKE L. FANALE POST. (POSIZIONE E STOP)	-	2	Enquire
020	6329829	TURNING LIGHT	6329829 TURNING LIGHT INDICATORE Dl DIREZIONE	-	2	Enquire
021	6617091	LAMP 15D 32220 5/21W	6617091 LAMP 15D 32220 5/21W LAMPADA	-	2	Enquire
022	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	8	Enquire
023	8410611	WASHER	8410611 WASHER RONDELLA	-	8	Enquire
024	N01100632	NUT M6	N01100632 NUT M6 DADO	-	8	Enquire
025	6319022	REFLEX/REFLECTOR	6319022 REFLEX/REFLECTOR CATADIOTTRO	-	2	Enquire
026	6329897	BULB	6329897 BULB LAMPADA	-	2	Enquire
027	R1050004	KIT 2 DIRECTION INDICATORS	R1050004 KIT 2 DIRECTION INDICATORS use (0R1050004 - sets of 2 pieces)	-	2	Enquire
028	9444202	ADJ/SCREW	9444202 ADJ/SCREW VITE REGISTRO	-	8	Enquire
029	9444152	FRAME	9444152 FRAME CORNICE	-	4	Enquire
030	9444201	ADJ/SCREW	9444201 ADJ/SCREW VITE REGISTRO	-	4	Enquire
031	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	8	Enquire
032	N01152427	WASHER	N01152427 WASHER RONDELLA	-	8	Enquire
033	6329695	BULB	6329695 BULB LAMPADA	-	4	Enquire
034	6329688	FOG LAMP	6329688 FOG LAMP FENDINEBBIA	-	2	Enquire
035	6329689	FLASH LIGHT	6329689 FLASH LIGHT FLASH DIURNO	-	2	Enquire
036	6331780	RIGHT FRONT LAMP	6331780 RIGHT FRONT LAMP LUCE POSIZIONE - INDIC. DIREZ. DX	-	1	Enquire
036	6331779	LEFT FRONT LAMP	6331779 LEFT FRONT LAMP LUCE POSIZIONE - INDIC. DIREZ. SX	-	1	Enquire
037	6617094	LAMP BA 15S 21W	6617094 LAMP BA 15S 21W LAMPADA	-	2	Enquire
038	6329696	BULB	6329696 BULB LAMPADA	-	2	Enquire
039	8700304	SCREW	8700304 SCREW VITE	-	8	Enquire
