Frame Floor Panels of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

Lamborghini Diablo VT (1993-1998) - Frame Floor Panels

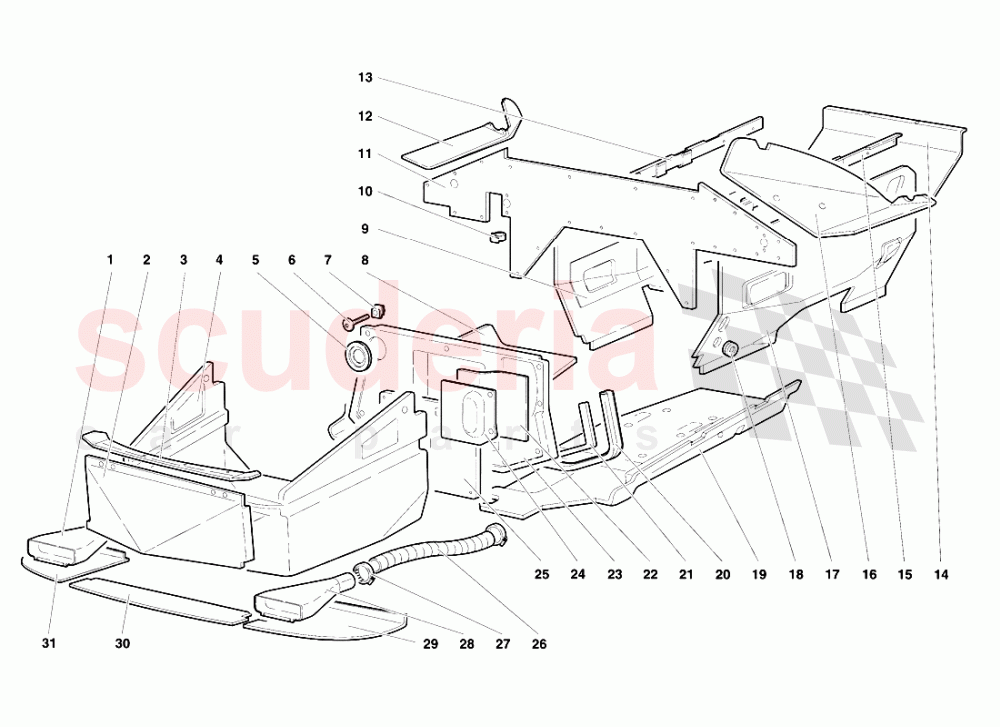

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9453143	CONVEYOR	9453143 CONVEYOR CONVOGLIATORE	$842.44	1
002	9411105	PANEL	9411105 PANEL PANNELLO	$413.99	1
003	9411113	FRAME	9411113 FRAME CORNICE	$839.55	1
004	9409225	COVERING	9409225 COVERING RIVESTIMENTO BAULE	$606.48	1
005	9409215	GASKET	9409215 GASKET GUARNIZIONE	$32.82 MSRP: ~~34.30~~ (4.3% off)	1
006	8700671	SCREW	8700671 SCREW VITE	$4.13	10
007	8220605	CLIP	8220605 CLIP MOLLETTA	$8.07	3
008	9411214	RIGHT SHELF PANEL	9411214 RIGHT SHELF PANEL PIANALE DX	$625.30	1
009	9411600	LINING	9411600 LINING ISOLAMENTO	$1,302.74	1
010	1731994	STRAP	1731994 STRAP FASCETTA	$10.07 MSRP: ~~10.20~~ (1.3% off)	1
011	9455239	LINING	9455239 LINING ISOLAMENTO	$166.88 MSRP: ~~169.00~~ (1.3% off)	1
012	9455205	RIGHT LINING	9455205 RIGHT LINING ISOLAMENTO DX	$339.97	1
013	9411602	RIGHT SUPPORT	9411602 RIGHT SUPPORT SUPPORTO DX	$148.37	1
014	9411604	LINING	9411604 LINING ISOLAMENTO	$496.28	1
015	9411603	LEFT SUPPORT	9411603 LEFT SUPPORT SUPPORTO SX	$340.89	1
016	9455206	LEFT LINING	9455206 LEFT LINING ISOLAMENTO SX	$339.97	1
017	9411601	LEFT LINING	9411601 LEFT LINING ISOLAMENTO SX	$1,302.74	1
018	8612804	RUBBER RING	8612804 RUBBER RING GUARNIZIONE	$6.28 MSRP: ~~6.55~~ (4.1% off)	1
019	9411215	LEFT SHELF PANEL	9411215 LEFT SHELF PANEL PIANALE SX	$508.67	1
020	9409218	GASKET	9409218 GASKET GUARNIZIONE	$21.60	1
021	9409219	GASKET	9409219 GASKET GUARNIZIONE	$5.59	1
022	9409236	COVERING	9409236 COVERING PELLICOLA	$8.96	1
023	9409230	PANEL	9409230 PANEL PANNELLO	$428.46	1
024	9409231	INSPECTION LID	9409231 INSPECTION LID SPORTELLO ISPEZIONE	$367.66	1
025	9409227	FRAME	9409227 FRAME CORNICE	$107.06	1
026	9453133	PIPE	9453133 PIPE TUBO	$244.43	2
027	8837501	STRAP	8837501 STRAP FASCETTA	$17.09	4
028	9453144	CONVEYOR	9453144 CONVEYOR CONVOGLIATORE	$722.08 MSRP: ~~755.00~~ (4.4% off)	1
029	9411101	LEFT PANEL	9411101 LEFT PANEL PANNELLO SX	$289.69	1
030	9411106	PANEL	9411106 PANEL PANNELLO CENTRALE	$204.82	1
031	9411100	RIGHT PANEL	9411100 RIGHT PANEL PANNELLO DX	-	1	Enquire
