Doors 2 of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

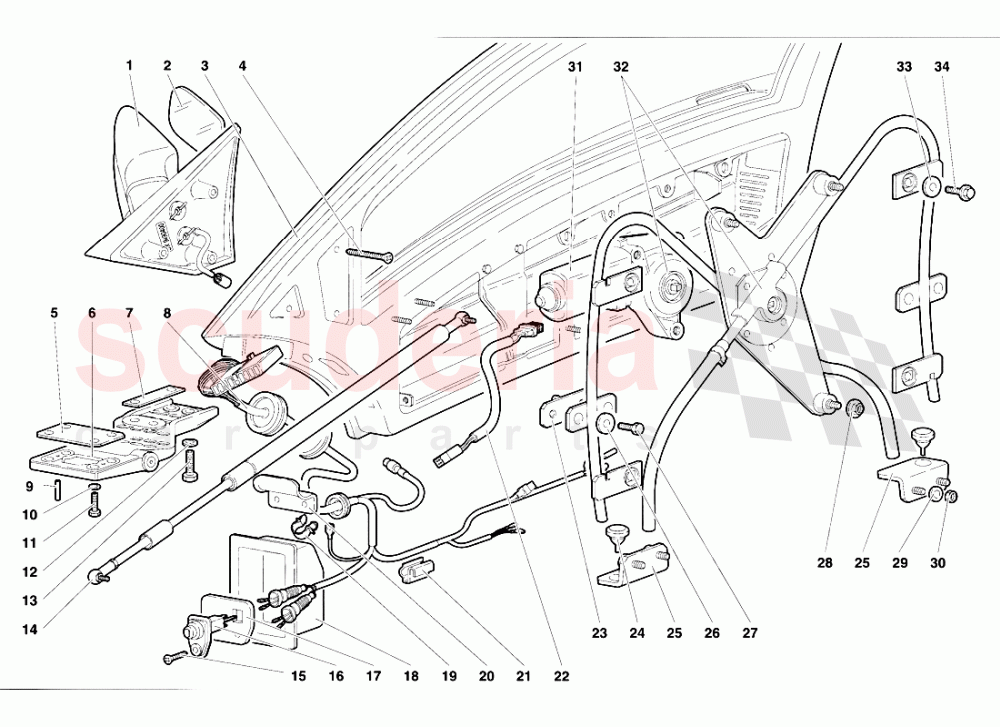

Lamborghini Diablo VT (1993-1998) - Doors 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9490401	LEFT REAR VIEW MIR.	9490401 LEFT REAR VIEW MIR. (Must specify car colour) RETROVISORE SX COMPLETO	-	1	Enquire
001	9490400	RIGHT REAR VIEW MIR.	9490400 RIGHT REAR VIEW MIR. (Must specify car colour) RETROVISORE DX COMPLETO	-	1	Enquire
002	9490413	LEFT MIRROR	9490413 LEFT MIRROR SPECCHIOSX	$71.11	1
002	9490412	RIGHT MIRROR	9490412 RIGHT MIRROR SPECCHIO DX	$192.52	1
003	9421007	LEFT DOOR	9421007 LEFT DOOR PORTA SX	$16,537.38	1
003	9421006	RIGHT DOOR	9421006 RIGHT DOOR PORTA DX	$11,178.63	1
004	8700329	SCREW	8700329 SCREW VITE	$0.13 MSRP: ~~7.37~~ (98.2% off)	6
005	4132051	SHIM	4132051 SHIM SPESSORE 0,8 MM	-	1	Enquire
005	4132053	SHIM	4132053 SHIM SPESSORE 1,2 MM	-	1	Enquire
005	4132054	SHIM	4132054 SHIM SPESSORE 1,5 MM	-	1	Enquire
005	4132052	SHIM	4132052 SHIM SPESSORE 1 MM	-	1	Enquire
006	9421359	RIGHT HINGE	9421359 RIGHT HINGE CERNIERADX	-	1	Enquire
006	410831401	LH HINGE	410831401 LH HINGE CERNIERASX	$1,153.22	1
007	9421380	SHIM	9421380 SHIM SPESSORE 1 MM	-	1	Enquire
007	9421381	SHIM	9421381 SHIM SPESSORE 1,5 MM	$28.24 MSRP: ~~29.45~~ (4.1% off)	1
008	6133770	LEFT ELECT CABLE	6133770 LEFT ELECT CABLE CABLAGGIO SX	$191.07	1
009	8900401	PIN	8900401 PIN SA ELASTICA	$0.25 MSRP: ~~7.35~~ (96.6% off)	4
010	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	8
011	8100821	SCREW	8100821 SCREW VITE	$1.26	8
012	8411015	WASHER	8411015 WASHER RONDELLA	$11.31 MSRP: ~~11.70~~ (3.3% off)	8
013	8101008	SCREW	8101008 SCREW VITE	$15.99	8
014	9421031	DOOR STRUT	9421031 DOOR STRUT MARTINETTO	$129.11	2
015	WHT003304	SCREW	WHT003304 SCREW VITE	$0.61 MSRP: ~~7.28~~ (91.6% off)	2
016	5934450	SWITCH	5934450 SWITCH INTERRUTTORE	$21.47 MSRP: ~~21.75~~ (1.3% off)	2
017	5934447	PLATE	5934447 PLATE PIASTRINA	$74.44 MSRP: ~~77.80~~ (4.3% off)	2
018	5934453	SHIELD	5934453 SHIELD PROTEZIONE	$43.31 MSRP: ~~45.25~~ (4.3% off)	2
019	8830411	STRAP	8830411 STRAP FASCETTA	$1.29 MSRP: ~~7.09~~ (81.8% off)	2
020	9421613	BRACKET	9421613 BRACKET STAFFA	$35.24	2
021	8830302	CLAMP	8830302 CLAMP FASCETTA	$4.35	10
022	9421606	ELECT CABLE	9421606 ELECT CABLE CABLAGGIO	$25.20 MSRP: ~~26.25~~ (4% off)	2
023	9421607	BRACKET	9421607 BRACKET STAFFA	$59.27	4
024	9421408	RUBBER BUMPER	9421408 RUBBER BUMPER PARACOLPI COMMA	$22.52	4
025	9421406	RIGHT DOOR PLATE	9421406 RIGHT DOOR PLATE PIASTRINA PORTA DX	$48.26 MSRP: ~~50.50~~ (4.4% off)	2
025	9421407	LEFT DOOR PLATE	9421407 LEFT DOOR PLATE PIASTRINA PORTA SX	$9.55 MSRP: ~~9.70~~ (1.5% off)	2
026	8400501	WASHER	8400501 WASHER RONDELLA	$0.19 MSRP: ~~7.36~~ (97.4% off)	8
027	N01020717	SCREW M5X12	N01020717 SCREW M5X12 VITE	$0.67 MSRP: ~~7.31~~ (90.8% off)	8
028	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	$0.21	6
029	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.53	8
030	N0211963	NUT	N0211963 NUT DADO	$0.76	8
031	9421605	LEFT ELECT MOTOR	9421605 LEFT ELECT MOTOR MOTORING SX	$488.85	1
031	9421604	RIGHT ELECT MOTOR	9421604 RIGHT ELECT MOTOR MOTORING DX	$488.85	1
032	9421601	LEFT KIT WINDOW REGUL.	9421601 LEFT KIT WINDOW REGUL. KIT ALZACRISTALLO SX	$2,308.72	1
032	9421600	RIGHT KIT WIND. REGUL	9421600 RIGHT KIT WIND. REGUL KIT ALZAC R I STALLO DX	$697.69	1
033	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	8
034	N90319404	SCREW	N90319404 SCREW VITE	$1.89	8
