Lamborghini Diablo VT (1993-1998) - Body Elements - Right Flank

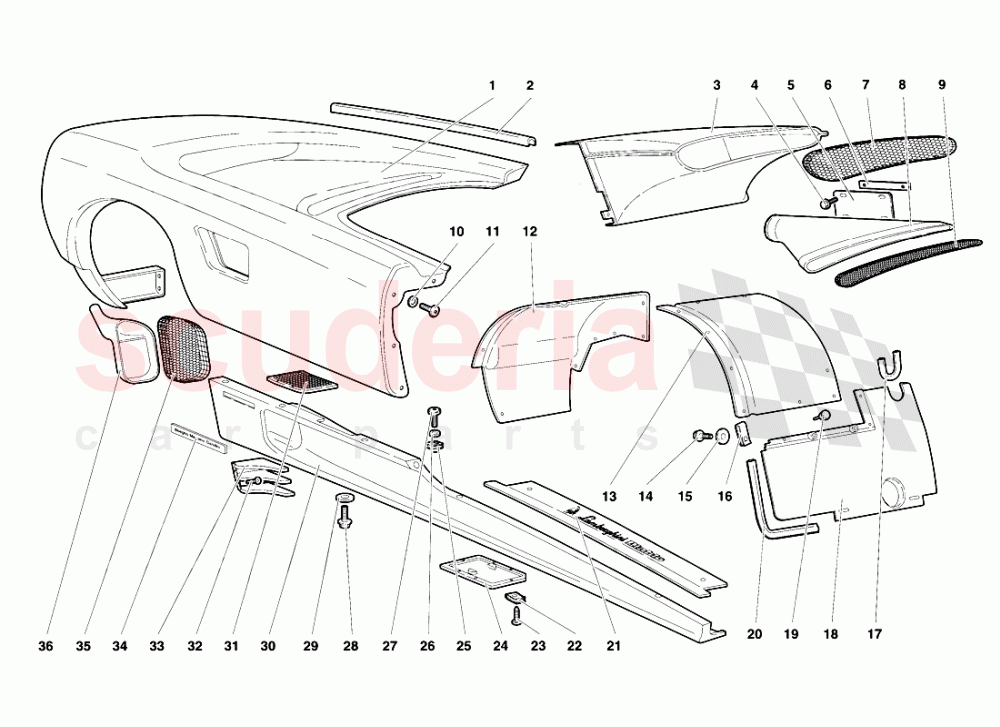

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9410012	RH REAR FENDER	9410012 RH REAR FENDER	$9,925.54	1
002	9490113	GASKET	9490113 GASKET GUARNIZIONE	$34.02	1
003	9453100	CONVEYOR	9453100 CONVEYOR CONVOGLIATORE	-	1	Enquire
004	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	$0.95	4
005	9453136	SUPPORT - SUPPORTO	9453136 SUPPORT - SUPPORTO O	$11.87 MSRP: ~~12.05~~ (1.5% off)	1
006	9453137	BRACKET	9453137 BRACKET STAFFA	$9.20 MSRP: ~~9.30~~ (1.1% off)	1
007	9430124	NET	9430124 NET RETE	$529.77	1
008	9453139	CONVEYOR	9453139 CONVEYOR CONVOGLIATORE	$333.76	1
009	9430126	NET	9430126 NET RETE	$544.67	1
010	8400624	WASHER	8400624 WASHER RONDELLA	$4.78	9
011	8740685	SCREW	8740685 SCREW VITE	$21.42	9
012	9411502	REAR WHEELBOX	9411502 REAR WHEELBOX PASSARUOTA POST.	$985.10	1
013	9411501	REAR WHEELBOX	9411501 REAR WHEELBOX PASSARUOTA POST.	$431.76 MSRP: ~~450.00~~ (4.1% off)	1
014	8700449	SCREW	8700449 SCREW VITE	$2.99 MSRP: ~~7.37~~ (59.4% off)	22
015	N91109201	WASHER	N91109201 WASHER RONDELLA	$1.55 MSRP: ~~5.85~~ (73.5% off)	22
016	WHT000916A	CLIP	WHT000916A CLIP MOLLETTA	$15.41	22
017	9411513	GASKET	9411513 GASKET GUARNIZIONE	$183.12	1
018	9411500	PROTECTION	9411500 PROTECTION PARASASSI	-	1	Enquire
019	9421408	RUBBER BUMPER	9421408 RUBBER BUMPER PARACOLPI GOMMA	$22.52	2
020	9411511	GASKET	9411511 GASKET GUARNIZIONE	$109.81	1
021	9458307	DOORSILL MOULDING	9458307 DOORSILL MOULDING BATTICALCAGNO	$3,777.92	1
022	WHT003424	CLIP	WHT003424 CLIP MOLLETTA	$0.89 MSRP: ~~7.25~~ (87.7% off)	6
023	WHT003114	SCREW	WHT003114 SCREW VITE	$5.45	6
024	9410306	INSPECTION LID	9410306 INSPECTION LID SPORTELLO ISPEZIONE	$67.50 MSRP: ~~70.60~~ (4.4% off)	1
025	N90327506	SPEED NUT	N90327506 SPEED NUT MOLLETTA	$0.94	6
026	8400624	WASHER	8400624 WASHER RONDELLA	$4.78	3
027	8740685	SCREW	8740685 SCREW VITE	$21.42	3
028	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	$0.95	9
029	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	3
030	9410304	SIDE PANEL	9410304 SIDE PANEL BRANCARDO	$4,812.84	1
031	9430143	NET	9430143 NET RETE	$536.00	1
032	N91049601	OVAL HEAD PANEL SCREW (COMBI)	N91049601 OVAL HEAD PANEL SCREW (COMBI) VITE	$0.67 MSRP: ~~7.31~~ (90.8% off)	8
033	9430005	GRILLE	9430005 GRILLE GRIGLIA	$413.15 MSRP: ~~430.00~~ (3.9% off)	1
035	9430139	NET	9430139 NET RETE	$277.31	1
036	9453140	CONVEYOR	9453140 CONVEYOR CONVOGLIATORE	$232.33	1
