Climate Control 4 of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

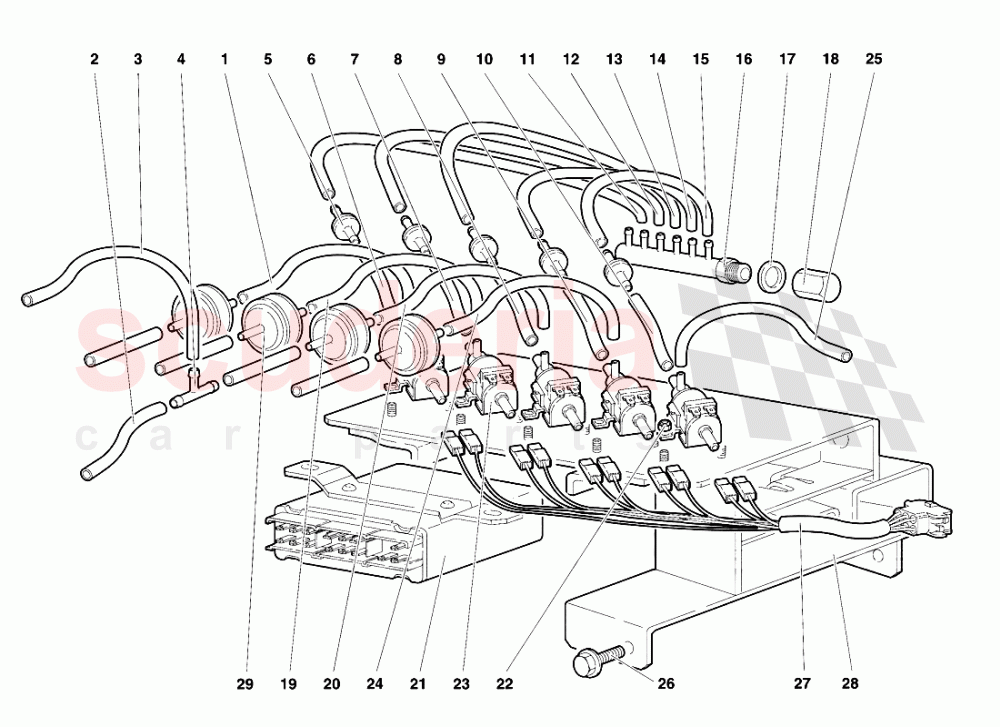

Lamborghini Diablo SE30 (1993-1995) - Climate Control 4

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9414613	RED PIPE	9414613 RED PIPE TUBO ROSSO	$8.96	1
002	9414621	BLUE PIPE	9414621 BLUE PIPE TUBO BLU	$8.96	1
003	9414620	BLUE PIPE	9414620 BLUE PIPE TUBO BLU	$8.96	1
004	7014169	T UNION	7014169 T UNION RACCORDO	$24.62 MSRP: ~~25.65~~ (4% off)	1
005	4621574	VALVE	4621574 VALVE VALVOLA Dl NON RITORNO	$19.48	5
006	9414612	RED PIPE	9414612 RED PIPE TUBO ROSSO	$8.96	1
007	9414611	GREEN PIPE	9414611 GREEN PIPE TUBO VERDE	$8.96	1
008	9414610	BLUE PIPE	9414610 BLUE PIPE TUBO BLU	$8.96	1
009	9414609	WHITE PIPE	9414609 WHITE PIPE TUBO BIANCO	$8.96	1
010	9414608	BLACK PIPE	9414608 BLACK PIPE TUBO NERO	$8.96	1
011	9414601	RED PIPE	9414601 RED PIPE TUBO ROSSO	$8.96	1
012	9414602	GREEN PIPE	9414602 GREEN PIPE TUBO VERDE	$8.96	1
013	9414604	BLUE PIPE	9414604 BLUE PIPE TUBO BLU	$8.96	1
014	9414603	WHITE PIPE	9414603 WHITE PIPE TUBO BIANCO	$8.96	1
015	9414605	BLACK PIPE	9414605 BLACK PIPE TUBO NERO	$8.96	1
016	4621565	CONNECTION	4621565 CONNECTION RACCORDO	$80.27	1
017	8401008	WASHER	8401008 WASHER RONDELLA	-	1	Enquire
018	9414606	PLUG	9414606 PLUG TAPPO	$70.85 MSRP: ~~74.10~~ (4.4% off)	1
019	9414614	GREEN PIPE	9414614 GREEN PIPE TUBO VERDE	$8.96	1
020	9414615	BLUE PIPE	9414615 BLUE PIPE TUBO BLU	$8.96	1
021	4526659	ELECTRONIC CONT. U.	4526659 ELECTRONIC CONT. U. CENTRALINA CLIMATIZZAZIONE	$5,326.70	1
022	N01100412	HEXAGON NUT	N01100412 HEXAGON NUT DADO	-	10	Enquire
023	77906283	SOLENOID VALVE	77906283 SOLENOID VALVE ELETTROVALVOLA	$57.20	5
024	9414616	WHITE PIPE	9414616 WHITE PIPE TUBO BIANCO	$8.96	1
025	9414617	BLACK PIPE	9414617 BLACK PIPE TUBO NERO	$8.96	1
026	8700449	SCREW	8700449 SCREW VITE	$2.99 MSRP: ~~7.37~~ (59.4% off)	2
027	6130618	ELECT CABLE	6130618 ELECT CABLE CABLAGGIO ELETTROV.	$120.24 MSRP: ~~126.00~~ (4.6% off)	1
028	9414628	PLATE	9414628 PLATE PIASTRA SUPP.GRUPPO ELETT	$261.16 MSRP: ~~264.00~~ (1.1% off)	1
029	9414633	VALVE	9414633 VALVE VALVOLA	$163.77 MSRP: ~~170.50~~ (3.9% off)	4
