Thermostat and Water Pump of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

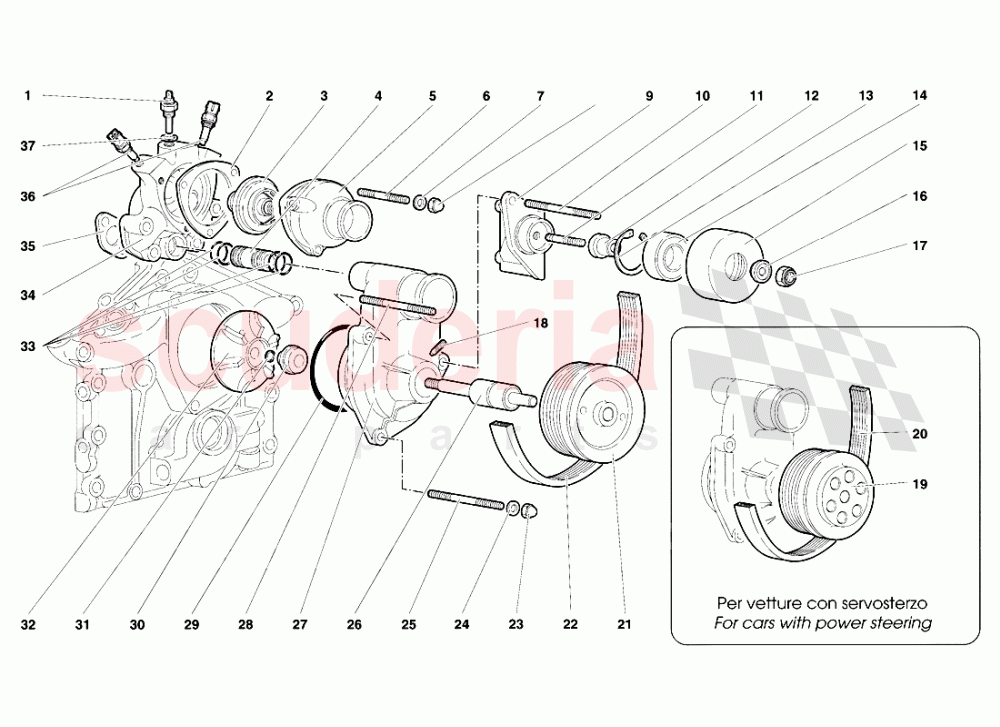

Lamborghini Diablo SE30 (1993-1995) - Thermostat and Water Pump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1724221	THERMOCOUPLE	1724221 THERMOCOUPLE TERMOCOPPIA	$142.01	1
002	1726745	GASKET	1726745 GASKET GUARNIZIONE	$36.68	1
003	17006576	THERMOSTAT	17006576 THERMOSTAT TERMOSTATO	$542.81	1
004	1726729	PIPE IN STOCK	1726729 PIPE TUBO IN STOCK	$148.37	1
005	1726731	COVER	1726731 COVER COPERCHIO CORPO TERMOSTATO	$594.30	1
006	8300615	STUD	8300615 STUD PRIGIONIERO	$20.24 MSRP: ~~21.05~~ (3.8% off)	3
007	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	3
008	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	3
009	1731878	BRACKET	1731878 BRACKET STAFFA SUPP.GALOP.CINGHIA	$461.53	1
010	8300803	STUD BOLT	8300803 STUD BOLT PRIGIONIERO L=30	$13.40	1
011	8301004	STUD	8301004 STUD PRIGIONIERO	$30.21	1
012	1626942	PIN	1626942 PIN PERNO SU CORPO TEND.CINGH	$44.08	1
013	8575201	RETAINING RING IN STOCK	8575201 RETAINING RING ANELLO RITEGNO IN STOCK	$1.22 MSRP: ~~7.20~~ (83.1% off)	1
014	8502501	BEARING	8502501 BEARING CUSCINETTO	$54.60	1
015	1228675	BELT STRETCHER	1228675 BELT STRETCHER TENDICINGHIA	$375.92	1
016	1626949	WASHER	1626949 WASHER RONDELLA FISS.CUSC.PERNO CORP	$31.88	1
017	8201008	NUT IN STOCK	8201008 NUT DADO IN STOCK	$0.80 MSRP: ~~7.24~~ (89% off)	1
018	8700650	SCREW IN STOCK	8700650 SCREW VITE IN STOCK	$2.42 MSRP: ~~2.50~~ (3.2% off)	1
019	1731500	PULLEY (until car 12042)	1731500 PULLEY (until car 12042) PULEGGIA (fino alia vettura 12042)	$476.45	1
019	1733986	PULLEY	1733986 PULLEY PULEGGIA (dalla vettura 12043)	$1,048.40	1
020	1731857	TRANS BELT	1731857 TRANS BELT CINGHIA (fino alia vettura 12042)	$104.83	1
020	1736517	TRANS BELT	1736517 TRANS BELT CINGHIA (dalla vettura 12043)	$324.98	1
021	1734756	PULLEY	1734756 PULLEY PULEGGIA	-	1	Enquire
022	1731857	TRANS BELT	1731857 TRANS BELT CINGHIA	$104.83	1
023	8200809	NUT	8200809 NUT DADO	$1.96	3
024	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	2
025	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO L=25	$22.30	1
026	1727739	SMALL SHAFT	1727739 SMALL SHAFT ALBERINO	$470.44	1
027	1735031	WATER PUMP CASE	1735031 WATER PUMP CASE CORPO POMPA ACQUA	-	1	Enquire
028	8300833	STUD BOLT	8300833 STUD BOLT PRIGIONIERO L=45	$6.09 MSRP: ~~6.30~~ (3.3% off)	1
029	WHT003018	SEAL RING IN STOCK	WHT003018 SEAL RING ANELLO TENUTA IN STOCK	$87.36	1
030	1734675	SEAL	1734675 SEAL TENUTA FRONTALE	$46.59	1
031	1734248	SHIM	1734248 SHIM SPESSORE Dl REGISTRO 2,8 mm	$36.68	1
031	1734245	SHIM	1734245 SHIM SPESSORE Dl REGISTRO 2,2 mm	$36.68	1
031	1734239	SHIM	1734239 SHIM SPESSORE Dl REGISTRO 1.0 mm	$36.68	1
031	1734241	SHIM	1734241 SHIM SPESSORE Dl REGISTRO 1,4 mm	$53.92	1
031	1734240	SHIM	1734240 SHIM SPESSORE Dl REGISTRO 1,2 mm	$36.68	1
031	1734243	SHIM	1734243 SHIM SPESSORE Dl REGISTRO 1,8 mm	$36.68	1
031	1734242	SHIM	1734242 SHIM SPESSORE Dl REGISTRO 1,6 mm	$36.68	1
031	1734244	SHIM	1734244 SHIM SPESSORE Dl REGISTRO 2,0 mm	$36.68	1
031	1734246	SHIM	1734246 SHIM SPESSORE Dl REGISTRO 2,4 mm	$36.68	1
031	1734247	SHIM	1734247 SHIM SPESSORE Dl REGISTRO 2,6 mm	$36.68	1
032	1734252	IMPELLER	1734252 IMPELLER GIRANTE POMPA ACQUA	$592.77	1
033	8601801	SEAL IN STOCK	8601801 SEAL ANELLO TENUTA IN STOCK	$12.45	4
034	1726730	THERMOSTAT BODY	1726730 THERMOSTAT BODY CORPO TERMOSTATO	$446.64	1
035	1721922	GASKET	1721922 GASKET GUARNIZIONE	$11.59	2
036	7L919501A	Water Temperature Sensor IN STOCK	7L919501A Water Temperature Sensor SENSORE TEMPERATURA ACQUA IN STOCK	$359.56	2
037	8401425	WASHER	8401425 WASHER RONDELLA	-	1	Enquire
