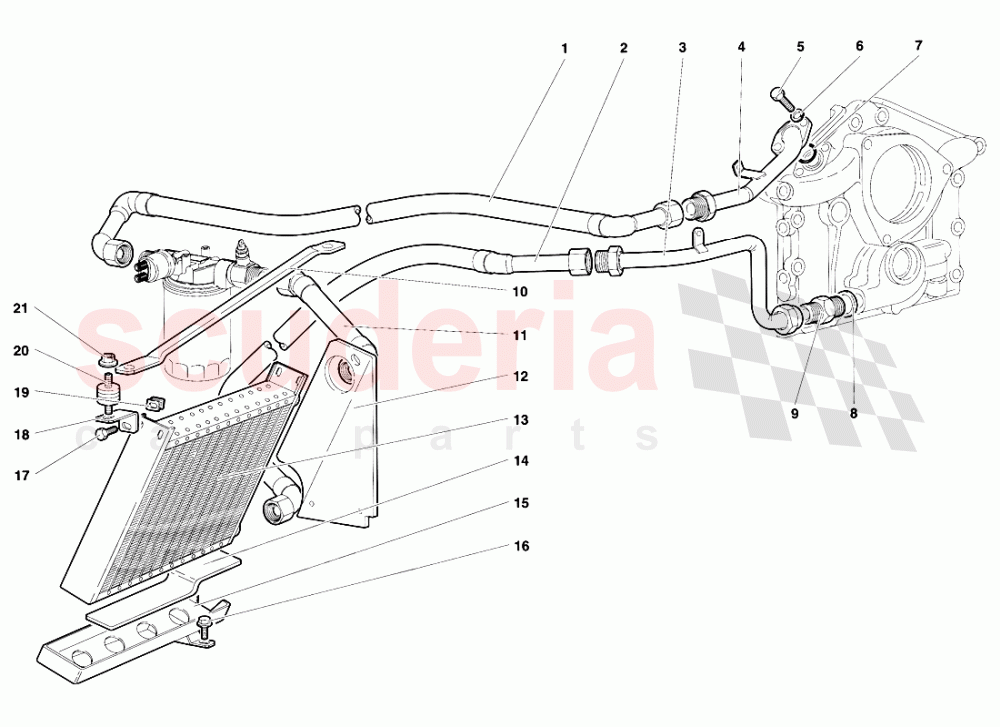

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1535078	PIPE	1535078 PIPE TUBO FLESSIBILE	-	1	Enquire
002	1535076	FLEX. HOSE	1535076 FLEX. HOSE TUBO FLESSIBILE	-	1	Enquire
003	1531827	PIPE	1531827 PIPE TUBO	-	1	Enquire
004	1531859	PIPE	1531859 PIPE TUBO	-	1	Enquire
005	8100830	SCREW	8100830 SCREW VITE	-	2	Enquire
006	N0152785	WASHER	N0152785 WASHER RONDELLA	-	2	Enquire
007	WHT003062	SEAL RING	WHT003062 SEAL RING ANELLO TENUTA	-	1	Enquire
008	8403006	WASHER	8403006 WASHER RONDELLA	-	1	Enquire
009	1529610	CONNECTION	1529610 CONNECTION RACCORDO	-	1	Enquire
010	4133013	ROD	4133013 ROD ASTA	-	1	Enquire
011	1535077	FLEX. HOSE	1535077 FLEX. HOSE TUBO FLESSIBILE	-	1	Enquire
012	4133295	SUPPORT - SUPPORTO	4133295 SUPPORT - SUPPORTO O	-	1	Enquire
013	7M117021	OIL RADIATOR	7M117021 OIL RADIATOR	-	1	Enquire
014	410813585	RUBBER WEATHER-	410813585 RUBBER WEATHER- PROFILATO GOMMA	-	1	Enquire
015	4133292	SUPPORT - SUPPORTO RADIATORE	4133292 SUPPORT - SUPPORTO RADIATORE O RADIATORE	-	1	Enquire
016	N90319404	SCREW	N90319404 SCREW VITE	-	2	Enquire
017	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	-	1	Enquire
018	1533284	BRACKET	1533284 BRACKET STAFFA	-	1	Enquire
019	N90327506	SPEED NUT	N90327506 SPEED NUT PIASTRINA CON FILETTATURA	-	1	Enquire
020	8920604	SILENTBLOC - SILENTBLOC	8920604 SILENTBLOC - SILENTBLOC	-	1	Enquire
021	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	-	2	Enquire
