Radiators and Electro-Fans of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

Lamborghini Diablo SE30 (1993-1995) - Radiators and Electro-Fans

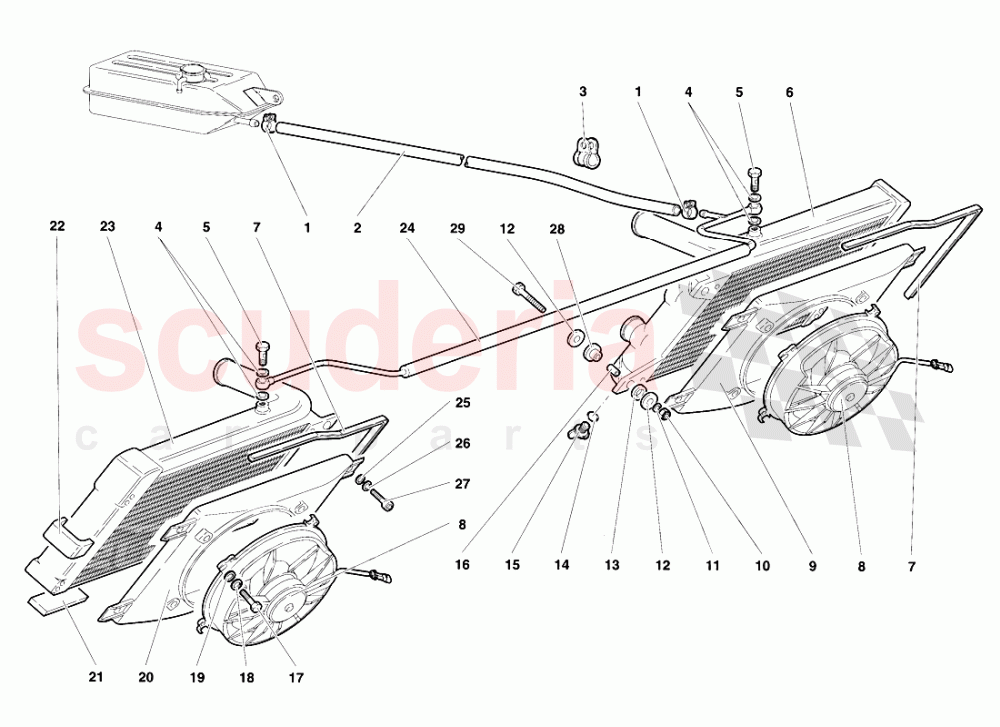

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8830817	CLAMP	8830817 CLAMP FASCETTA	$2.20	2
002	1735264	PIPE	1735264 PIPE TUBO FLESSIBILE	$16.70 MSRP: ~~16.90~~ (1.2% off)	1
003	8831515	CLAMP	8831515 CLAMP FASCETTA	$10.01	1
004	8400818	WASHER	8400818 WASHER RONDELLA RAME	-	4	Enquire
005	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	$24.66	2
006	1735035	LH RADIATOR	1735035 LH RADIATOR	$3,133.78	1
007	410121539	GASKET	410121539 GASKET PROFILATO GOMMA	$57.85	2
008	17017063	ELECTROFAN	17017063 ELECTROFAN	$1,074.44	2
009	410121333	LEFT CONVEYOR	410121333 LEFT CONVEYOR CONVOGLIATORE SX	$443.55	1
010	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	4
011	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	4
012	WHT001942	WASHER IN STOCK	WHT001942 WASHER RONDELLA IN STOCK	$3.30	8
013	WHT001189	PLASTIC WASHER IN STOCK	WHT001189 PLASTIC WASHER IN STOCK	$6.27	4
014	8600901	SEAL	8600901 SEAL use : WHT003058	-	2	Enquire
015	410121299	PLUG	410121299 PLUG TAPPO	$231.85	2
016	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE DISTANZIALE	$10.37	4
017	8100502	SCREW IN STOCK	8100502 SCREW VITE IN STOCK	$0.16	8
018	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	8
019	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.53	8
020	410121334A	RH CONVEYOR	410121334A RH CONVEYOR CONVOGLIATORE DX	$1,599.47	1
021	1731451	GASKET	1731451 GASKET GUARNIZIONE	$14.65 MSRP: ~~14.85~~ (1.3% off)	2
022	1733004	GASKET	1733004 GASKET GUARNIZIONE	$21.65 MSRP: ~~22.55~~ (4% off)	4
023	1735034	RH RADIATOR	1735034 RH RADIATOR	$3,133.78	1
024	1735040	VENT PIPE	1735040 VENT PIPE TUBO Dl SFIATO	$111.79	1
025	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	8
026	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.13 MSRP: ~~7.38~~ (98.2% off)	8
027	8700614	SCREW	8700614 SCREW VITE	$0.27	8
028	1733266	RUBBER BUSHING	1733266 RUBBER BUSHING BOCCOLA GOMMA	$7.25	4
029	8100824	SCREW	8100824 SCREW VITE	$1.38 MSRP: ~~7.13~~ (80.6% off)	4
