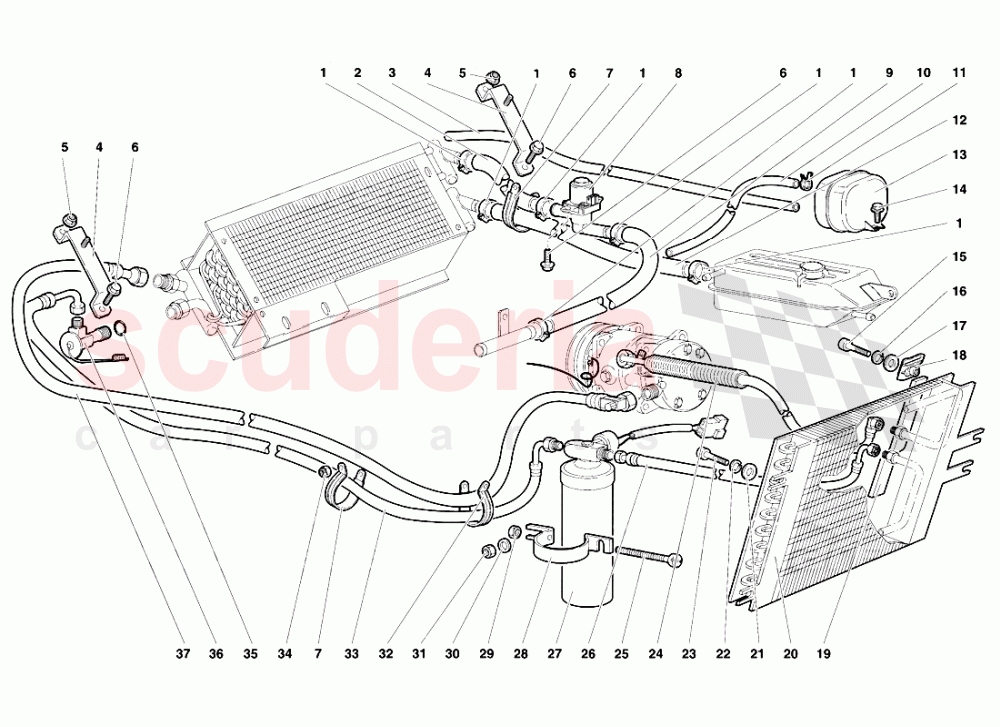

Lamborghini Diablo SE30 (1993-1995) - Climate Control 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8832003	CLAMP	8832003 CLAMP FASCETTA	-	6	Enquire
002	4734346	PIPE	4734346 PIPE TUBO FLESSIBILE	-	1	Enquire
003	9414600	PIPE	9414600 PIPE TUBO FLESSIBILE	-	1	Enquire
004	4131338	STRAP	4131338 STRAP FASCETTA	-	2	Enquire
005	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	2	Enquire
006	N90319404	SCREW	N90319404 SCREW VITE	-	2	Enquire
007	8834003	CLAMP	8834003 CLAMP FASCETTA	-	7	Enquire
008	6031658	ELECTRO-VALVE	6031658 ELECTRO-VALVE ELETTROVALVOLA	-	1	Enquire
009	4734347	PIPE	4734347 PIPE TUBO FLESSIBILE	-	1	Enquire
010	6231411	PIPE	6231411 PIPE TUBO FLESSIBILE	-	1	Enquire
011	8830128	CLAMP	8830128 CLAMP FASCETTA	-	2	Enquire
012	1733231	PIPE	1733231 PIPE TUBO FLESSIBILE	-	1	Enquire
013	1323406	VACUUM TANK	1323406 VACUUM TANK SERBATOIO A DEPRES-	-	1	Enquire
014	N90319404	SCREW	N90319404 SCREW VITE	-	2	Enquire
015	8700614	SCREW	8700614 SCREW VITE	-	2	Enquire
016	8410611	WASHER	8410611 WASHER RONDELLA	-	2	Enquire
017	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	2	Enquire
018	N90327506	SPEED NUT	N90327506 SPEED NUT MOLLETTA	-	2	Enquire
019	4531592	GASKET	4531592 GASKET GUARNIZIONE	-	2	Enquire
020	4531594	A/C CONDENSER	4531594 A/C CONDENSER CONDENSATORE CONDIZIONATORE	-	1	Enquire
021	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	4	Enquire
022	8410611	WASHER	8410611 WASHER RONDELLA	-	4	Enquire
023	8700614	SCREW	8700614 SCREW VITE	-	4	Enquire
024	4530164	PIPE	4530164 PIPE TUBO FLESSIBILE	-	1	Enquire
025	8700542	SCREW	8700542 SCREW VITE	-	1	Enquire
026	4530165	PIPE	4530165 PIPE TUBO FLESSIBILE	-	1	Enquire
027	4534692	FILTER	4534692 FILTER FILTRO DEIDRATATORE	-	1	Enquire
028	4531395	STRAP	4531395 STRAP FASCETTA	-	1	Enquire
029	8200580	NUT	8200580 NUT DADO	-	1	Enquire
030	N0122094	WASHER	N0122094 WASHER RONDELLA	-	2	Enquire
031	8200804	NUT M8	8200804 NUT M8 DADO	-	2	Enquire
032	8834401	CLAMP	8834401 CLAMP FASCETTA	-	1	Enquire
033	4530166	PIPE	4530166 PIPE TUBO FLESSIBILE	-	1	Enquire
034	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	7	Enquire
035	8601103	SEAL	8601103 SEAL ANELLO TENUTA	-	1	Enquire
036	4530261	VALVE	4530261 VALVE VALVOLA Dl ESPANSIONE	-	1	Enquire
037	4530167	PIPE	4530167 PIPE TUBO FLESSIBILE	-	1	Enquire
