Engine Oil Pump of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

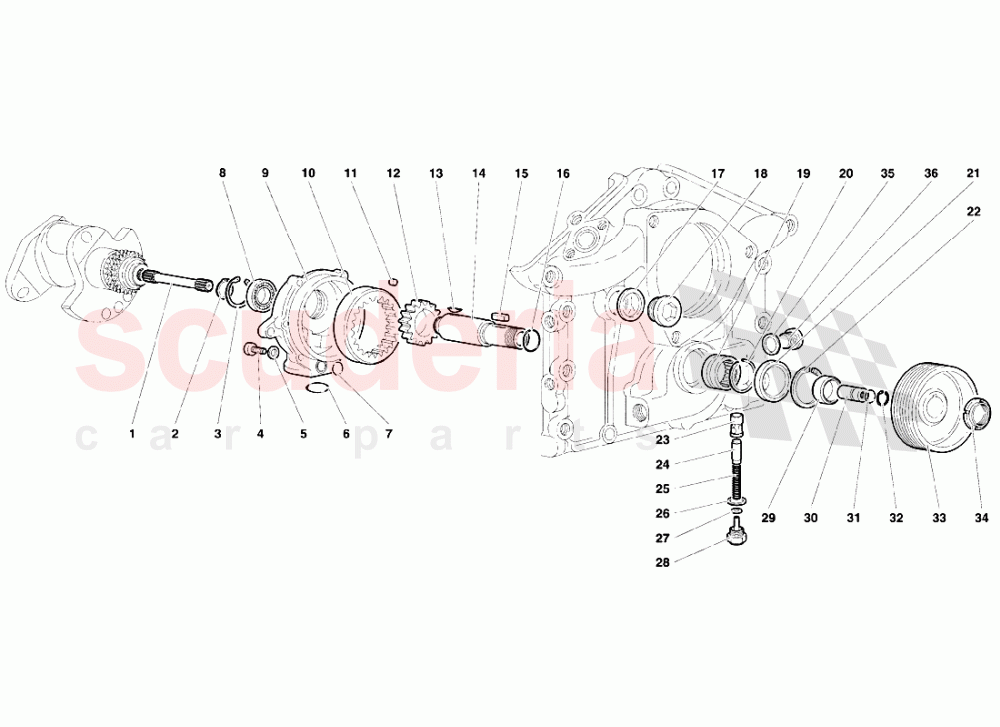

Lamborghini Diablo SE30 (1993-1995) - Engine Oil Pump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	1521899	SMALL SHAFT	1521899 SMALL SHAFT ALBERINO	$602.99	1
002	8582501	RETAINER RING	8582501 RETAINER RING ANELLO RITEGNO	$5.82 MSRP: ~~6.00~~ (3% off)	1
003	8575001	RETAINER RING	8575001 RETAINER RING ANELLO RITEGNO	$0.82	1
004	8700624	SCREW	8700624 SCREW VITE	$0.13	6
005	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	6
006	8603503	SEAL RING IN STOCK	8603503 SEAL RING ANELLO TENUTA IN STOCK	$4.16	1
007	8601705	SEAL	8601705 SEAL ANELLO TENUTA	$0.48 MSRP: ~~7.30~~ (93.4% off)	1
008	8502515	BEARING	8502515 BEARING CUSCINETTO	$1,060.80	1
009	1530837	OIL PUMP COVER	1530837 OIL PUMP COVER COPERCHIO POMPA OLIO	$3,294.05	1
010	1530839	DRIVEN GEAR	1530839 DRIVEN GEAR INGRANAGGIO CONDOTTO	$839.55	1
011	WHT003577	DOWEL	WHT003577 DOWEL GRAND	$1.80 MSRP: ~~7.03~~ (74.4% off)	1
012	1532497	GEAR	1532497 GEAR INGRANAGGIO CONDUTTORE	$1,062.45	1
013	8860508	LOCK KEY	8860508 LOCK KEY CHIAVETTA	$1.81	1
014	1531819	SHAFT	1531819 SHAFT ALBERO	$816.38	1
015	8860808	KEY	8860808 KEY LINGUETTA	$0.68	1
016	8602603	SEAL	8602603 SEAL ANELLO TENUTA	$0.25	1
017	8403006	WASHER	8403006 WASHER RONDELLA	$10.18	1
018	8933002	PLUG	8933002 PLUG TAPPO	$38.67	1
019	8523513	BEARING	8523513 BEARING CUSCINETTO	$24.26	1
020	8574502	RETAINER RING IN STOCK	8574502 RETAINER RING ANELLO RITEGNO IN STOCK	$9.81	1
021	8613507	SEAL	8613507 SEAL ANELLO TENUTA	$6.28	1
022	8575000	RETAINER RING	8575000 RETAINER RING ANELLO RITEGNO	$0.80	1
023	1228118	BUSHING	1228118 BUSHING BUSSOLA	$112.43	1
024	1526871	PLUNGER	1526871 PLUNGER PISTONCINO	$43.31	1
025	1519888	SPRING	1519888 SPRING MOLLA	$25.00 MSRP: ~~26.10~~ (4.2% off)	1
026	8402604	WASHER	8402604 WASHER RONDELLA	$3.67	1
027	1524378	SPACER	1524378 SPACER DISTANZIALE	$32.14	1
028	1524375	PLUG	1524375 PLUG TAPPO	$64.27	1
029	1531818	SUPPORT - SUPPORTO	1531818 SUPPORT - SUPPORTO O	$414.37	1
030	1525193	SPACER	1525193 SPACER DISTANZIALE	$103.60	1
031	8601301	SEAL	8601301 SEAL ANELLO TENUTA	$1.74	1
032	8571901	RETAINER RING	8571901 RETAINER RING ANELLO RITEGNO	$5.82 MSRP: ~~6.00~~ (3% off)	1
033	1525032	PULLEY	1525032 PULLEY PULEGGIA	$1,354.85	1
034	8253001	PLUG	8253001 PLUG GHIERA	$59.37	1
035	8401621	WASHER	8401621 WASHER RONDELLA	$1.29	1
036	8931607	PLUG	8931607 PLUG TAPPO	$5.51	1
