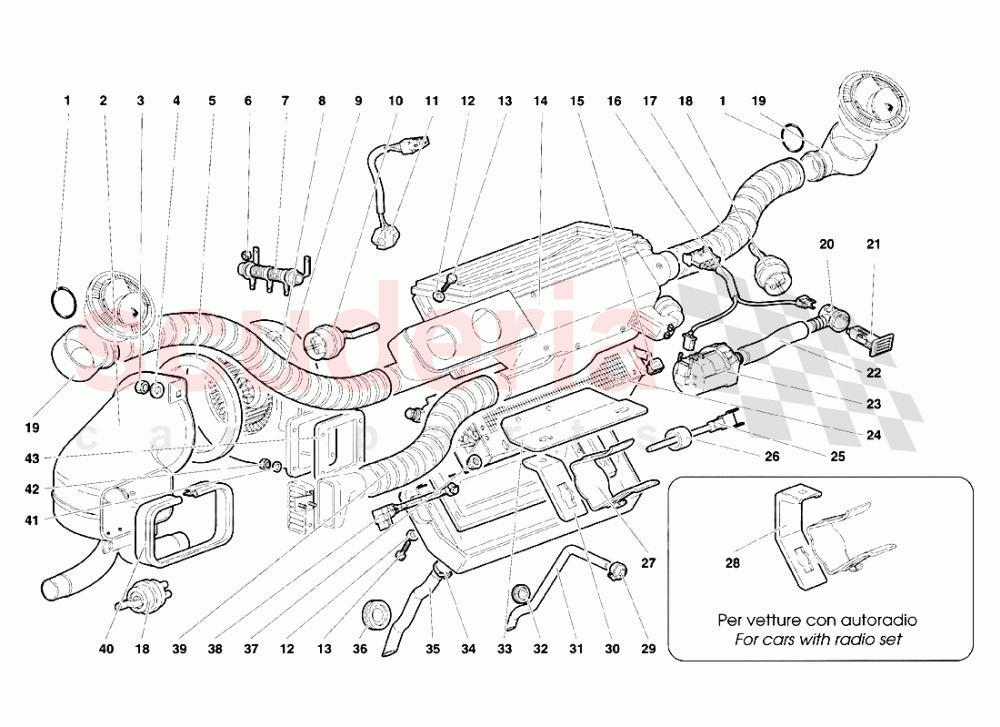

Lamborghini Diablo SE30 (1993-1995) - Climate Control 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8604401	SEAL	8604401 SEAL ANELLO TENUTA	$0.33 MSRP: ~~7.33~~ (95.5% off)	2
002	9453112	CONVEYOR	9453112 CONVEYOR CONVOGLIATORE	$744.41	1
003	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	3
004	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	3
005	9490202	GASKET	9490202 GASKET GUARNIZIONE	$10.49	1
006	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.76	2
007	1619328	RESISTANCE	1619328 RESISTANCE RESISTENZA	$152.72	1
008	4729405	ELECTROFAN	4729405 ELECTROFAN ELETTROVENTILATORE	$313.89	1
009	9414532	PIPE	9414532 PIPE TUBO FLESSIBILE	$85.12	1
010	9014529	CONTROL	9014529 CONTROL ATTUATORE	$108.89	1
011	4526662	TEMPERATURE SENS.	4526662 TEMPERATURE SENS. SENSORE TEMPERATURA ESTERNA	$233.07	1
012	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.53	8
013	8100502	SCREW IN STOCK	8100502 SCREW VITE IN STOCK	$0.16	2
014	9414003	CONVEYOR	9414003 CONVEYOR CONVOGLIATORE	$1,960.30	1
015	8220503	CLIP	8220503 CLIP MOLLETTA	$10.49 MSRP: ~~10.90~~ (3.8% off)	8
016	6130619	ELECT CABLE	6130619 ELECT CABLE CABLAGGIO	$54.30	1
017	9414531	PIPE	9414531 PIPE TUBO FLESSIBILE	$83.36	1
018	7014137	CONTROL	7014137 CONTROL ATTUATORE	$111.55	5
019	7014135	CONNECTION	7014135 CONNECTION RACCORDO	-	2	Enquire
020	4526666	CONNECTION	4526666 CONNECTION RACCORDO	$34.68	1
021	4526661	TEMPERATURE SENS.	4526661 TEMPERATURE SENS. SENSORE TEMPERATURA ABITACOLO	$169.98 MSRP: ~~172.00~~ (1.2% off)	1
022	6032223	PIPE	6032223 PIPE TUBO FLESSIBILE	$9.61 MSRP: ~~10.00~~ (3.9% off)	1
023	4526665	ELECTROFAN	4526665 ELECTROFAN ELETTROVENTOLA	$338.73	1
024	4530210	RADIATOR	4530210 RADIATOR EVAPORATORE RISCALDATORE	$1,291.15	1
025	4526663	TEMPERATURE SENS.	4526663 TEMPERATURE SENS. SENSORE TEMPERATURA	$1,968.56	1
026	4532839	PIPE	4532839 PIPE TUBO	$10.00 MSRP: ~~10.15~~ (1.5% off)	1
027	5931539	SUPPORT - SUPPORTO RADIO	5931539 SUPPORT - SUPPORTO RADIO SUPPORTO RADIO	$2.50 MSRP: ~~2.55~~ (2% off)	1
028	5935361	BRACKET	5935361 BRACKET STAFFA	$108.99	1
029	N0245097	CLAMP	N0245097 CLAMP FASCETTA	$18.10	1
030	5935362	SUPPORT - (Valid for R.H.D. - March 1997) SUPPORTO	5935362 SUPPORT - (Valid for R.H.D. - March 1997) SUPPORTO STAFFA	$54.96	1
031	9414537	PIPE	9414537 PIPE TUBO SCARICO	$38.78	1
032	8612507	GASKET	8612507 GASKET GUARNIZIONE	$18.36	1
033	4535118	SUPPORT - SUPPORTO	4535118 SUPPORT - SUPPORTO O	$46.90	1
034	8832806	STRAP	8832806 STRAP FASCETTA	$3.06	1
035	9414540	PIPE	9414540 PIPE TUBO SCARICO	$63.65	1
036	8611606	GASKET	8611606 GASKET GUARNIZIONE	$1.74 MSRP: ~~7.04~~ (75.3% off)	1
037	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.21	2
038	4526664	TEMPERATURE SENS.	4526664 TEMPERATURE SENS. SENSORE	$39.45	1
039	9414536	PIPE	9414536 PIPE TUBO FLESSIBILE	$96.90	1
040	9490201	GASKET	9490201 GASKET GUARNIZIONE	$43.80	1
041	8400401	WASHER	8400401 WASHER RONDELLA	$0.13	4
042	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	4
043	4731661	GASKET	4731661 GASKET GUARNIZIONE	$9.55 MSRP: ~~9.70~~ (1.5% off)	1
