Climate Control 1 of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

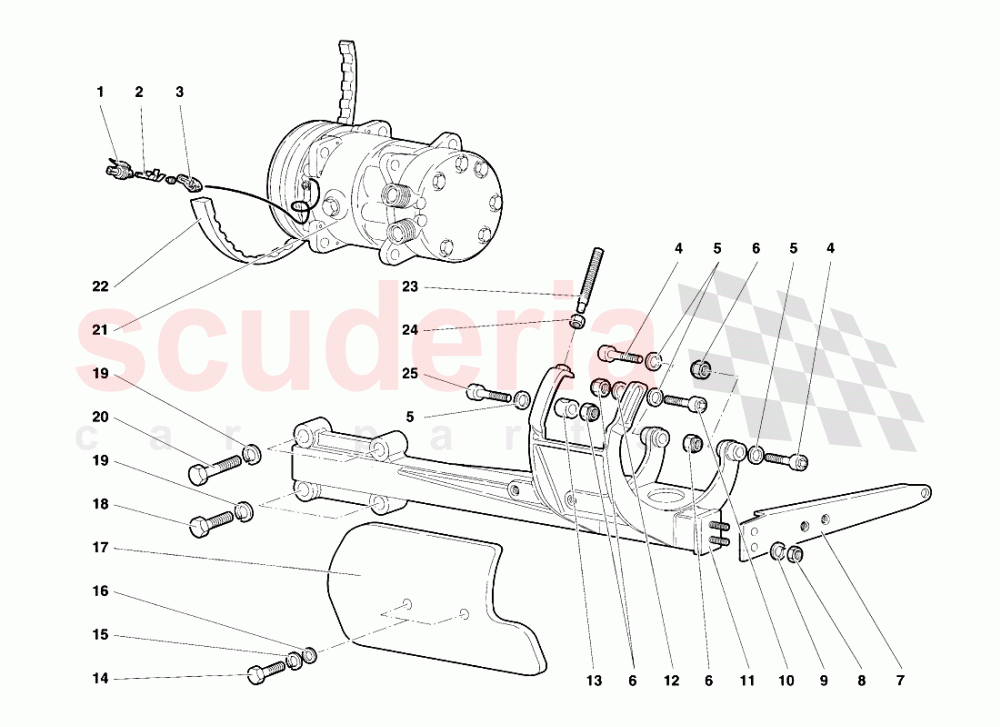

Lamborghini Diablo SE30 (1993-1995) - Climate Control 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	6132546	CONNECTION	6132546 CONNECTION CONNESSIONE	$18.05	1
002	6132584	KEY	6132584 KEY LINGUETTA	$7.93	1
003	6133204	CLIP	6133204 CLIP FERMAGLIO	$0.68	1
004	N10667901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10667901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD VITE IN STOCK	$3.05	1
005	WHT000768	WASHER IN STOCK	WHT000768 WASHER IN STOCK	$1.96 MSRP: ~~7.28~~ (73.1% off)	4
006	8201008	NUT IN STOCK	8201008 NUT DADO IN STOCK	$0.80 MSRP: ~~7.24~~ (89% off)	4
007	4529645	TIE ROD	4529645 TIE ROD TIRANTE	$395.79	1
008	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	2
009	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	2
010	8701017	SCREW	8701017 SCREW VITE	$0.95 MSRP: ~~7.24~~ (86.9% off)	1
011	4529535	SUPPORT - SUPPORTO	4529535 SUPPORT - SUPPORTO O	$1,308.92	1
012	N0122115	WASHER IN STOCK	N0122115 WASHER RONDELLA IN STOCK	$0.80 MSRP: ~~7.27~~ (89% off)	1
013	4529646	SPACER	4529646 SPACER DISTANZIALE	$24.78 MSRP: ~~25.05~~ (1.1% off)	1
014	8100620	Bolt	8100620 Bolt VITE	$5.82 MSRP: ~~6.00~~ (3% off)	2
015	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.77 MSRP: ~~7.38~~ (48.9% off)	2
016	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
017	4532221	SHIELD	4532221 SHIELD PROTEZIONE	$848.62	1
018	N01033520	SCREW M8X35 IN STOCK	N01033520 SCREW M8X35 VITE IN STOCK	$1.55 MSRP: ~~7.19~~ (78.4% off)	2
019	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	4
020	WHT002952	SCREW M8X1,25X30 IN STOCK	WHT002952 SCREW M8X1,25X30 VITE IN STOCK	$4.98	2
021	4530198	AIR COMPRESSOR	4530198 AIR COMPRESSOR COMPRESSORE	$1,592.24	1
022	4534071	BELT	4534071 BELT CINGHIA TRASMISSIONE (dalla 12043)	$428.46	1
022	4529536	T. BELT (until 12042)	4529536 T. BELT (until 12042) CINGHIATRASMISSIONE (fino alia 12042)	$181.14	1
023	8700841	SCREW IN STOCK	8700841 SCREW VITE IN STOCK	$2.23 MSRP: ~~2.35~~ (5.1% off)	1
024	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	1
025	8701020	SCREW	8701020 SCREW VITE	$1.55 MSRP: ~~7.14~~ (78.3% off)	1
