Oil Sump of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

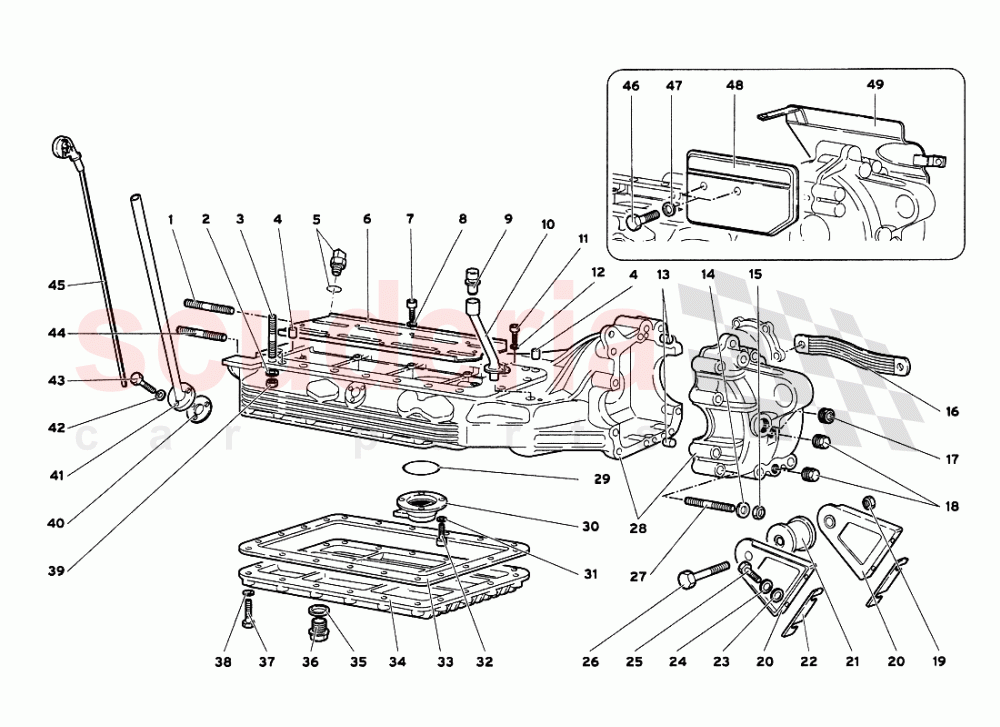

Lamborghini Diablo VT 6.0 (2000-2001) - Oil Sump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003028	THREADED PIN	WHT003028 THREADED PIN	$22.30	1
002	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.19	18
003	8300806	STUD	8300806 STUD	$5.59 MSRP: ~~5.70~~ (1.9% off)	6
003	WHT003031	STUD BOLT	WHT003031 STUD BOLT	$9.61	8
003	8300897	STUD	8300897 STUD	$14.92 MSRP: ~~15.50~~ (3.7% off)	4
004	8850806	DOWEL	8850806 DOWEL	-	2	Enquire
005	7L919501A	Water Temperature Sensor IN STOCK	7L919501A Water Temperature Sensor IN STOCK	$359.56	1
006	1827775	PLATE	1827775 PLATE	$85.50	1
007	8700644	SCREW	8700644 SCREW	$0.37 MSRP: ~~7.34~~ (95% off)	8
008	8410602	WASHER IN STOCK	8410602 WASHER IN STOCK	$44.87	8
009	B9507141	OIL BREATHER PIPE	B9507141 OIL BREATHER PIPE	$69.10	1
010	23001636	PIPE	23001636 PIPE	$87.70	1
011	8700547	SCREW IN STOCK	8700547 SCREW IN STOCK	$0.16 MSRP: ~~7.38~~ (97.8% off)	1
012	8410503	WASHER	8410503 WASHER	$0.19 MSRP: ~~7.37~~ (97.4% off)	1
013	8850806	DOWEL	8850806 DOWEL	-	2	Enquire
014	WHT000768	WASHER IN STOCK	WHT000768 WASHER IN STOCK	$1.96 MSRP: ~~7.28~~ (73.1% off)	10
015	N10155210	NUT	N10155210 NUT	$1.96 MSRP: ~~7.24~~ (72.9% off)	10
016	1604328	GROUND CABLE	1604328 GROUND CABLE	-	2	Enquire
017	8932602	PLUG	8932602 PLUG	$3.54 MSRP: ~~3.65~~ (3% off)	1
018	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG	$37.19	2
019	8201416	NUT	8201416 NUT	$1.74	1
020	4126765	BRACKET	4126765 BRACKET	$274.21 MSRP: ~~287.00~~ (4.5% off)	2
021	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$243.94	1
022	4126766	SPACER	4126766 SPACER	-	1	Enquire
023	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.55	4
024	N0152785	WASHER IN STOCK	N0152785 WASHER IN STOCK	$0.40	4
025	8100862	SCREW	8100862 SCREW	$0.64	4
026	8101430	SCREW	8101430 SCREW	$3.54 MSRP: ~~3.65~~ (3% off)	1
027	18001643	STUD	18001643 STUD	$12.91 MSRP: ~~13.05~~ (1.1% off)	10
028	450132002	OIL SUMP	450132002 OIL SUMP	$9,584.34	1
029	8609302	SEAL	8609302 SEAL (Included in the engine gasket kit)	-	1	Enquire
030	1832017	FLANGE	1832017 FLANGE	$327.55	1
031	8410602	WASHER IN STOCK	8410602 WASHER IN STOCK	$44.87	4
032	8700644	SCREW	8700644 SCREW	$0.37 MSRP: ~~7.34~~ (95% off)	4
033	18006617	GASKET	18006617 GASKET (Included in the engine gasket kit)	$104.09 MSRP: ~~105.50~~ (1.3% off)	1
034	1831852	LOWER COVER	1831852 LOWER COVER	$554.37	1
035	8402202	WASHER IN STOCK	8402202 WASHER (Included in the engine gasket kit) IN STOCK	$4.29 MSRP: ~~4.45~~ (3.6% off)	1
036	8932211	Drain Plug	8932211 Drain Plug	$25.84	1
037	8100603	SCREW	8100603 SCREW	$1.38 MSRP: ~~7.35~~ (81.2% off)	20
038	8410602	WASHER IN STOCK	8410602 WASHER IN STOCK	$44.87	20
039	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.89	18
040	18006616	GASKET	18006616 GASKET (Included in the engine gasket kit)	$5.26 MSRP: ~~5.40~~ (2.6% off)	1
041	1837263	PIPE	1837263 PIPE	$103.73 MSRP: ~~105.00~~ (1.2% off)	1
042	8410602	WASHER IN STOCK	8410602 WASHER IN STOCK	$44.87	3
043	8100601	SCREW	8100601 SCREW	$0.27	3
044	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	$6.02	2
045	1837261	LEVEL ROD	1837261 LEVEL ROD	$347.40	1
046	N0124032	SCREW	N0124032 SCREW	-	2	Enquire
047	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.55	2
048	1836047	PLATE	1836047 PLATE	$402.00 MSRP: ~~407.00~~ (1.2% off)	1
049	1836048	PLATE	1836048 PLATE	$402.00 MSRP: ~~407.00~~ (1.2% off)	1
