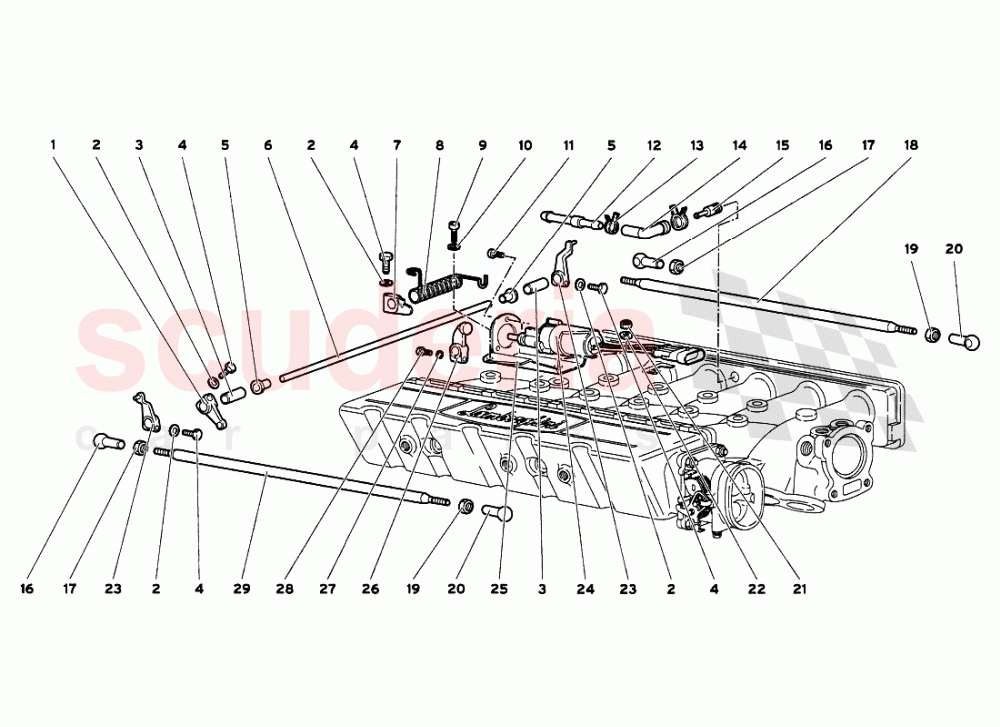

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1301093	LEVER	1301093 LEVER	-	1	Enquire
002	8410602	WASHER	8410602 WASHER	-	4	Enquire
003	1323136	SPACER	1323136 SPACER	-	2	Enquire
004	8100601	SCREW	8100601 SCREW	-	4	Enquire
005	8801204	BUSHING	8801204 BUSHING	-	2	Enquire
006	1323135	SMALL SHAFT	1323135 SMALL SHAFT	-	1	Enquire
007	1331005	LEVER	1331005 LEVER	-	1	Enquire
008	1335958	SPRING	1335958 SPRING	-	1	Enquire
009	8700644	SCREW	8700644 SCREW	-	1	Enquire
010	8410602	WASHER	8410602 WASHER	-	1	Enquire
011	8700465	SCREW	8700465 SCREW	-	3	Enquire
012	1329319	ADAPTER	1329319 ADAPTER	-	1	Enquire
013	8830122	CLAMP	8830122 CLAMP	-	2	Enquire
014	7L131756	CONNECTOR	7L131756 CONNECTOR	-	2	Enquire
015	1328721	CONNECTION	1328721 CONNECTION	-	2	Enquire
016	1300804	COUPLING HEAD	1300804 COUPLING HEAD	-	2	Enquire
017	8200501	NUT	8200501 NUT	-	2	Enquire
018	1328014	LEFT TIE ROD	1328014 LEFT TIE ROD	-	1	Enquire
019	N10690001	NUT (LEFT HAND THREAD)	N10690001 NUT (LEFT HAND THREAD)	-	2	Enquire
020	1308539	COUPLING HEAD	1308539 COUPLING HEAD	-	2	Enquire
021	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING	-	1	Enquire
022	8400606	WASHER	8400606 WASHER	-	1	Enquire
023	1311580	LEVER	1311580 LEVER	-	2	Enquire
024	6137792	CONTROL	6137792 CONTROL	-	1	Enquire
025	1337818	SUPPORT - SUPPORTO	1337818 SUPPORT - SUPPORTO	-	1	Enquire
026	1337826	LEVER	1337826 LEVER	-	1	Enquire
027	8410602	WASHER	8410602 WASHER	-	1	Enquire
028	8100601	SCREW	8100601 SCREW	-	1	Enquire
029	1328016	RIGHT TIE ROD	1328016 RIGHT TIE ROD	-	1	Enquire
