Engine Gasket Kit of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

Lamborghini Diablo VT 6.0 (2000-2001) - Engine Gasket Kit

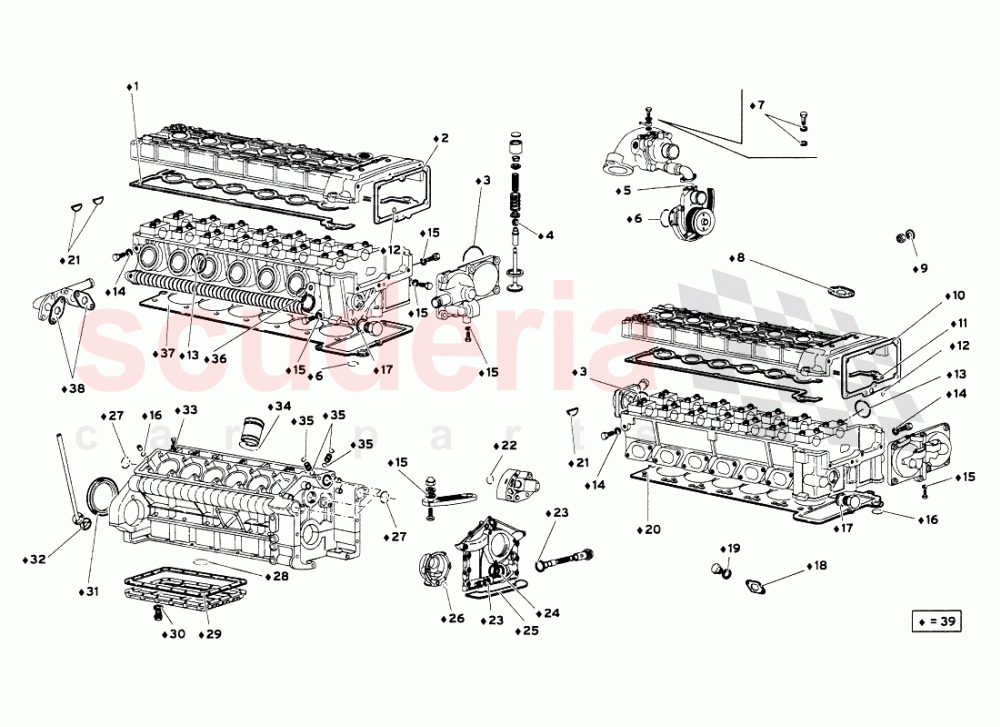

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7M103483A	GASKET	7M103483A GASKET	-	1	Enquire
002	11004551	GASKET	11004551 GASKET	-	1	Enquire
003	8606205	O-Ring	8606205 O-Ring	-	2	Enquire
004	7M109675	SEAL RING	7M109675 SEAL RING	-	48	Enquire
005	WHT003062	SEAL RING	WHT003062 SEAL RING	-	1	Enquire
006	WHT003018	SEAL RING	WHT003018 SEAL RING	-	1	Enquire
007	8400818	WASHER	8400818 WASHER	-	7	Enquire
008	15006613	GASKET	15006613 GASKET	-	1	Enquire
009	8401008	WASHER	8401008 WASHER	-	2	Enquire
010	11003889	GASKET	11003889 GASKET	-	1	Enquire
011	7M103484A	CRANKCASE VENT VALVE GASKET	7M103484A CRANKCASE VENT VALVE GASKET	-	1	Enquire
012	8600905	SEAL RING	8600905 SEAL RING	-	2	Enquire
013	8604703	SEAL RING	8604703 SEAL RING	-	12	Enquire
014	8400818	WASHER	8400818 WASHER	-	5	Enquire
015	WHT003041	WASHER	WHT003041 WASHER	-	8	Enquire
016	8601203	SEAL	8601203 SEAL	-	2	Enquire
017	8402609	WASHER	8402609 WASHER	-	2	Enquire
018	7M253039	GASKET	7M253039 GASKET Alternative use : 111532	-	12	Enquire
019	N91122801	WASHER 18,5X24X1,5	N91122801 WASHER 18,5X24X1,5	-	2	Enquire
020	11000987	GASKET	11000987 GASKET	-	1	Enquire
021	11003411	COVER	11003411 COVER	-	3	Enquire
022	8601501	SEAL	8601501 SEAL	-	1	Enquire
023	8403007	WASHER	8403007 WASHER	-	2	Enquire
024	8613702	SEAL	8613702 SEAL	-	1	Enquire
025	1232219	GASKET	1232219 GASKET	-	1	Enquire
026	8601705	SEAL	8601705 SEAL	-	1	Enquire
027	8603503	SEAL RING	8603503 SEAL RING	-	6	Enquire
028	8609302	SEAL	8609302 SEAL	-	1	Enquire
029	18006617	GASKET	18006617 GASKET	-	1	Enquire
030	8402202	WASHER	8402202 WASHER	-	1	Enquire
031	7M103089	SEAL RING	7M103089 SEAL RING	-	1	Enquire
032	18006616	GASKET	18006616 GASKET	-	1	Enquire
033	8401425	WASHER	8401425 WASHER	-	1	Enquire
034	WHT003085	SEAL RING	WHT003085 SEAL RING	-	12	Enquire
035	8600705	SEAL	8600705 SEAL	-	4	Enquire
036	8603503	SEAL RING	8603503 SEAL RING	-	2	Enquire
037	11000988	Gasket	11000988 Gasket	-	1	Enquire
038	17006615	GASKET	17006615 GASKET	-	2	Enquire
039	11005352	ENGINE GASKET KIT	11005352 ENGINE GASKET KIT	-	1	Enquire
