Crankcase of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

Lamborghini Diablo VT 6.0 (2000-2001) - Crankcase

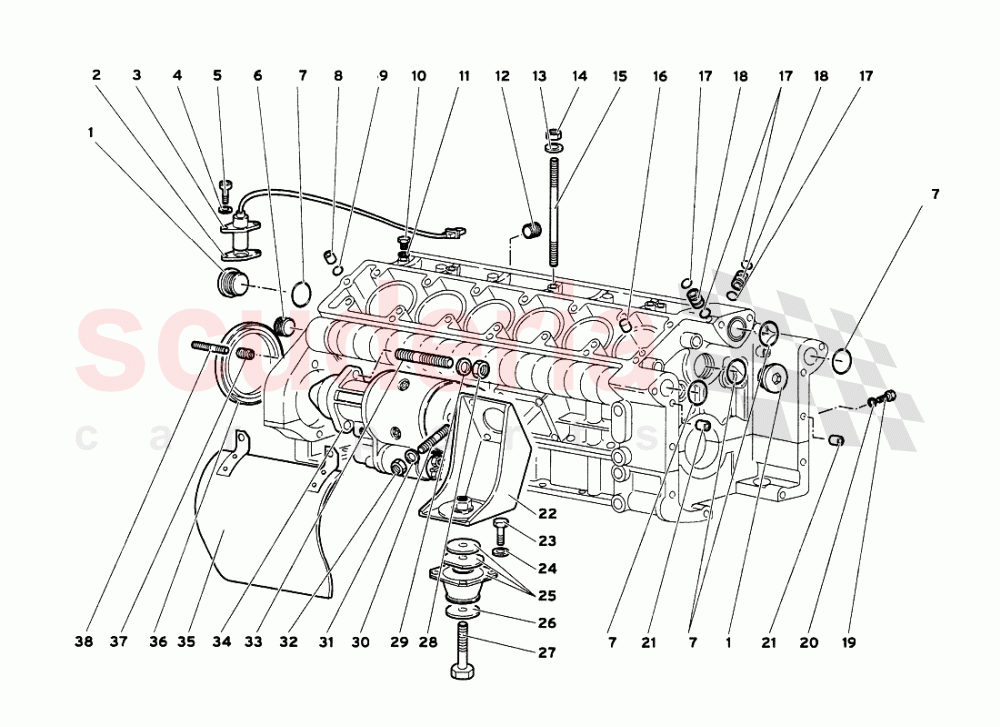

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	M00Y1L522	Engine - EXCHANGE	M00Y1L522 Engine - EXCHANGE	-	1	Enquire
001	1830023	PLUG	1830023 PLUG	-	2	Enquire
002	7M103899	0.2 mm ADJUSTMENT SHIM	7M103899 0.2 mm ADJUSTMENT SHIM	$5.51	1
003	7M905381	FLYWHEEL TIMING SENSOR	7M905381 FLYWHEEL TIMING SENSOR	$700.59	1
004	8410503	WASHER	8410503 WASHER	$0.19 MSRP: ~~7.37~~ (97.4% off)	2
005	N10648502	SCREW M5X10	N10648502 SCREW M5X10	$1.32 MSRP: ~~7.18~~ (81.6% off)	2
006	8933503	PLUG	8933503 PLUG	-	2	Enquire
007	8603503	SEAL RING	8603503 SEAL RING (Included in the engine gasket kit)	$4.16	5
008	1832161	DOWEL	1832161 DOWEL	$387.11	2
009	8601106	SEAL	8601106 SEAL (Included in the engine gasket kit)	-	2	Enquire
010	8101402	PLUG	8101402 PLUG	$28.97 MSRP: ~~30.25~~ (4.2% off)	1
011	8401425	WASHER	8401425 WASHER (Included in the engine gasket kit)	-	1	Enquire
012	8931209	PLUG	8931209 PLUG	-	1	Enquire
013	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	$1.55	2
014	8200809	NUT	8200809 NUT	$1.96	3
015	8300891	STUD	8300891 STUD	$15.02 MSRP: ~~15.65~~ (4% off)	3
016	8850821	DOWEL	8850821 DOWEL	-	2	Enquire
017	8600705	SEAL	8600705 SEAL (Included in the engine gasket kit)	-	4	Enquire
018	1833995	DOWEL	1833995 DOWEL	$34.75	2
019	8700644	SCREW	8700644 SCREW	$0.37 MSRP: ~~7.34~~ (95% off)	1
020	WHT003041	WASHER	WHT003041 WASHER	$0.89 MSRP: ~~7.31~~ (87.8% off)	1
021	8851304	DOWEL	8851304 DOWEL	$63.04 MSRP: ~~65.90~~ (4.3% off)	2
022	1835941	SUPPORT - SUPPORTO	1835941 SUPPORT - SUPPORTO	$311.40 MSRP: ~~315.00~~ (1.1% off)	2
023	8101031	SCREW	8101031 SCREW	$0.92 MSRP: ~~7.24~~ (87.3% off)	8
024	8411014	WASHER	8411014 WASHER	$0.19 MSRP: ~~7.37~~ (97.4% off)	8
025	400199703A	Flexible Support	400199703A Flexible Support	$438.71	2
026	N91089301	WASHER	N91089301 WASHER	$131.04	2
027	4131471	SCREW	4131471 SCREW	$33.70 MSRP: ~~35.25~~ (4.4% off)	2
028	1832869	NUT	1832869 NUT	-	2	Enquire
029	8411302	WASHER	8411302 WASHER	-	2	Enquire
030	8300814	STUD BOLT	8300814 STUD BOLT	$6.58 MSRP: ~~6.85~~ (3.9% off)	8
031	N0152785	WASHER	N0152785 WASHER	$0.40	8
032	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	$1.89	8
033	8301249	STUD BOLT	8301249 STUD BOLT	$15.33 MSRP: ~~15.90~~ (3.6% off)	2
034	7M911023	STARTER	7M911023 STARTER	$6,512.08	1
035	1635959	SHIELD	1635959 SHIELD	$1,309.96	1
036	7M103089	SEAL RING	7M103089 SEAL RING	$230.47	1
037	8210873	BUSHING	8210873 BUSHING	-	2	Enquire
038	WHT003028	THREADED PIN	WHT003028 THREADED PIN	$22.30	2
