Lamborghini Diablo VT 6.0 (2000-2001) - Accessories for Right Cylinder Head

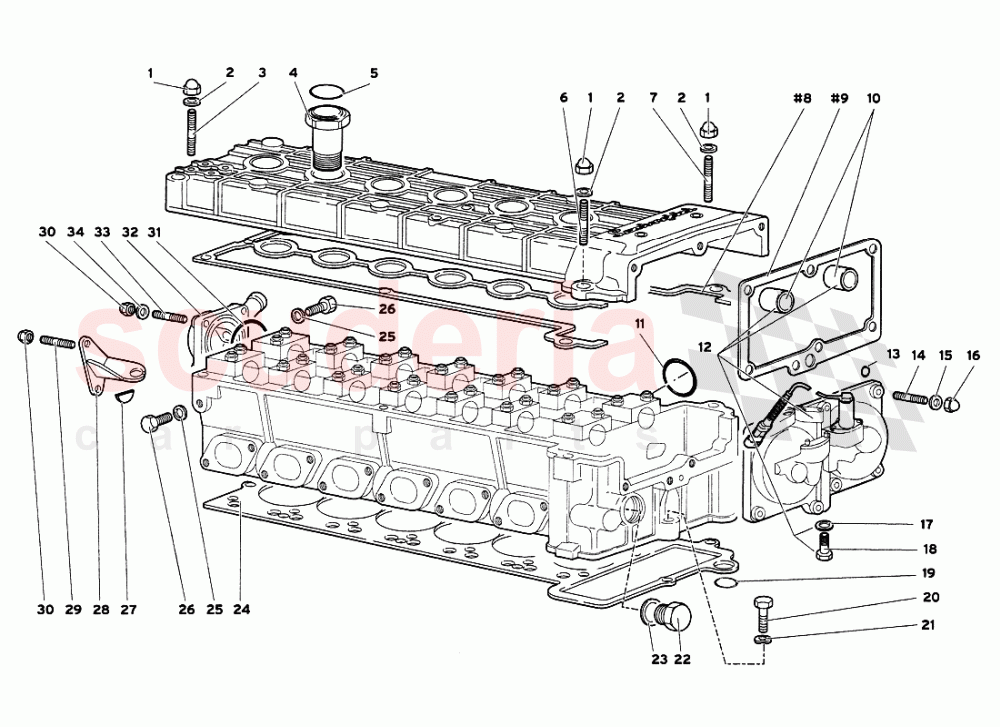

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT	8200605 NUT	-	3	Enquire
002	8400606	WASHER	8400606 WASHER	-	3	Enquire
003	8300649	STUD BOLT	8300649 STUD BOLT	-	1	Enquire
004	11004007	UNION	11004007 UNION	-	6	Enquire
005	8602304	SEAL RING	8602304 SEAL RING	-	6	Enquire
006	8300651	STUD BOLT	8300651 STUD BOLT	-	1	Enquire
007	8300637	STUD BOLT	8300637 STUD BOLT	-	1	Enquire
008	7M103484A	CRANKCASE VENT VALVE GASKET	7M103484A CRANKCASE VENT VALVE GASKET (Includes the engine gasket kit & cover gasket kit)	-	1	Enquire
009	11003889	GASKET	11003889 GASKET (Includes the engine gasket kit & cover gasket kit)	-	1	Enquire
010	11000038	BUSHING	11000038 BUSHING	-	2	Enquire
011	8604703	SEAL RING	8604703 SEAL RING (Includes the engine gasket kit & cover gasket kit)	-	6	Enquire
012	11009499	COMPLETE COVER WITH SOLENOID VALVE	11009499 COMPLETE COVER WITH SOLENOID VALVE	-	1	Enquire
013	8600905	SEAL RING	8600905 SEAL RING (Included in the engine gasket kit)	-	1	Enquire
014	WHT003028	THREADED PIN	WHT003028 THREADED PIN	-	7	Enquire
015	WHT000771	WASHER	WHT000771 WASHER	-	7	Enquire
016	8200816	NUT	8200816 NUT	-	7	Enquire
017	WHT003041	WASHER	WHT003041 WASHER (Includes the engine gasket kit & cover gasket kit)	-	1	Enquire
018	8100631	SCREW	8100631 SCREW	-	1	Enquire
019	8601203	SEAL	8601203 SEAL (Included in the engine gasket kit)	-	1	Enquire
020	N01033520	SCREW M8X35	N01033520 SCREW M8X35	-	1	Enquire
021	WHT000771	WASHER	WHT000771 WASHER	-	1	Enquire
022	7M103035	PLUG	7M103035 PLUG	-	1	Enquire
023	8402609	WASHER	8402609 WASHER (Included in the engine gasket kit)	-	1	Enquire
024	11000987	GASKET	11000987 GASKET (Included in the engine gasket kit)	-	1	Enquire
025	8400818	WASHER	8400818 WASHER	-	3	Enquire
026	8100839	SCREW	8100839 SCREW	-	3	Enquire
027	11003411	COVER	11003411 COVER (Includes the engine gasket kit & cover gasket kit)	-	1	Enquire
028	11003953	SUPPORT	11003953 SUPPORT	-	1	Enquire
029	8300613	STUD BOLT	8300613 STUD BOLT	-	2	Enquire
030	8200605	NUT	8200605 NUT	-	8	Enquire
031	8606205	O-Ring	8606205 O-Ring	-	1	Enquire
032	1133383	VENT PIPE	1133383 VENT PIPE	-	1	Enquire
033	8300601	STUD BOLT	8300601 STUD BOLT	-	4	Enquire
034	8410602	WASHER	8410602 WASHER	-	6	Enquire
