Air Filters of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

Lamborghini Diablo VT 6.0 (2000-2001) - Air Filters

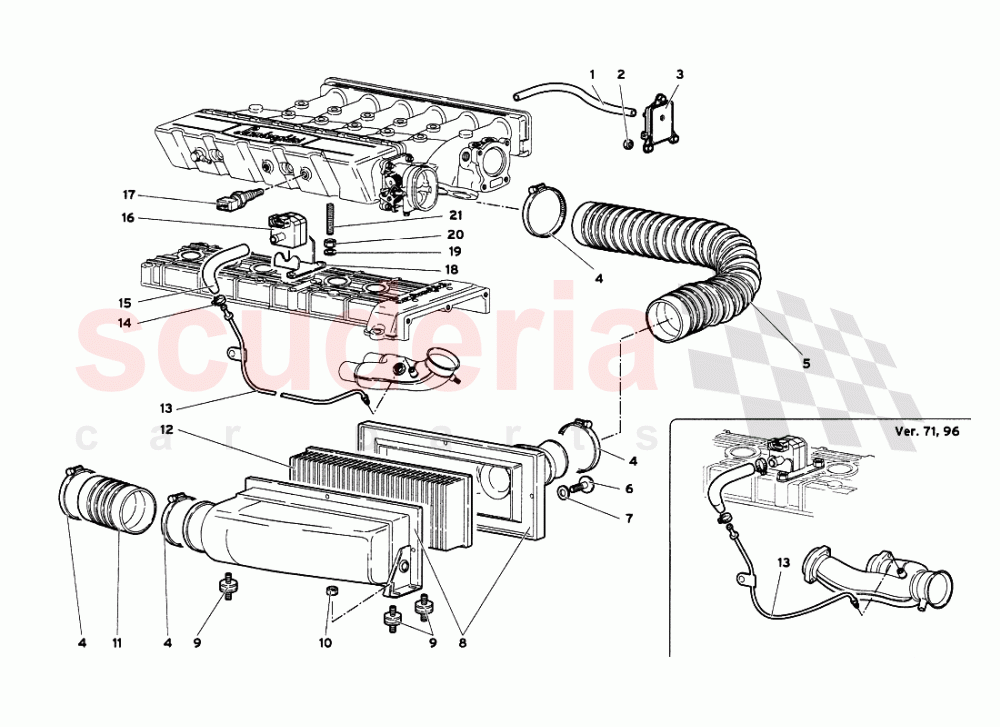

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1330454	PIPE	1330454 PIPE	-	2	Enquire
002	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING	-	6	Enquire
003	7M919529A	PRESSURE SENSOR	7M919529A PRESSURE SENSOR	-	2	Enquire
004	8838701	STRAP	8838701 STRAP	-	8	Enquire
005	1333774	LEFT FLEX. HOSE	1333774 LEFT FLEX. HOSE	-	1	Enquire
005	1331286	RIGHT FLEX. HOSE	1331286 RIGHT FLEX. HOSE	-	1	Enquire
006	WHT003074	SCREW M6X22	WHT003074 SCREW M6X22	-	8	Enquire
007	WHT000909	WASHER	WHT000909 WASHER	-	8	Enquire
008	13001215	RIGHT CASE	13001215 RIGHT CASE	-	1	Enquire
008	13001216	LEFT CASE	13001216 LEFT CASE	-	1	Enquire
009	9411508	ELASTIC SUPPORT	9411508 ELASTIC SUPPORT	-	6	Enquire
010	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	6	Enquire
011	1330523	FLEX. HOSE	1330523 FLEX. HOSE	-	2	Enquire
012	7M133843	Air Filter ARRIVING SOON	7M133843 Air Filter ARRIVING SOON	-	2	Enquire
013	20001299	LEFT PIPE	20001299 LEFT PIPE (Valid for USA from engine No. 0002 - MY 2001)	-	1	Enquire
013	20001199	LEFT PIPE	20001199 LEFT PIPE (Valid from engine No. 2411 - MY 2000)	-	1	Enquire
013	20001298	RIGHT PIPE	20001298 RIGHT PIPE (Valid for CANADA from engine No. 0002 - MY 2001)	-	1	Enquire
013	20001298	RIGHT PIPE	20001298 RIGHT PIPE (Valid for USA from engine No. 0002 - MY 2001)	-	1	Enquire
013	20001299	LEFT PIPE	20001299 LEFT PIPE (Valid for CANADA from engine No. 0002 - MY 2001)	-	1	Enquire
013	20001198	RIGHT PIPE	20001198 RIGHT PIPE (Valid from engine No. 2411 - MY 2000)	-	1	Enquire
014	8830901	CLAMP	8830901 CLAMP	-	2	Enquire
015	20001201	PIPE	20001201 PIPE	-	2	Enquire
016	20008222	SENSOR	20008222 SENSOR	-	2	Enquire
017	7M919529	Air Temperature Sensor	7M919529 Air Temperature Sensor	-	2	Enquire
018	20001196	RIGHT SUPPORT	20001196 RIGHT SUPPORT	-	1	Enquire
018	20001197	LEFT SUPPORT	20001197 LEFT SUPPORT	-	1	Enquire
019	8400606	WASHER	8400606 WASHER	-	4	Enquire
020	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING	-	4	Enquire
021	8300613	STUD BOLT	8300613 STUD BOLT	-	4	Enquire
