Intake Manifold of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

Lamborghini Diablo VT 6.0 (2000-2001) - Intake Manifold

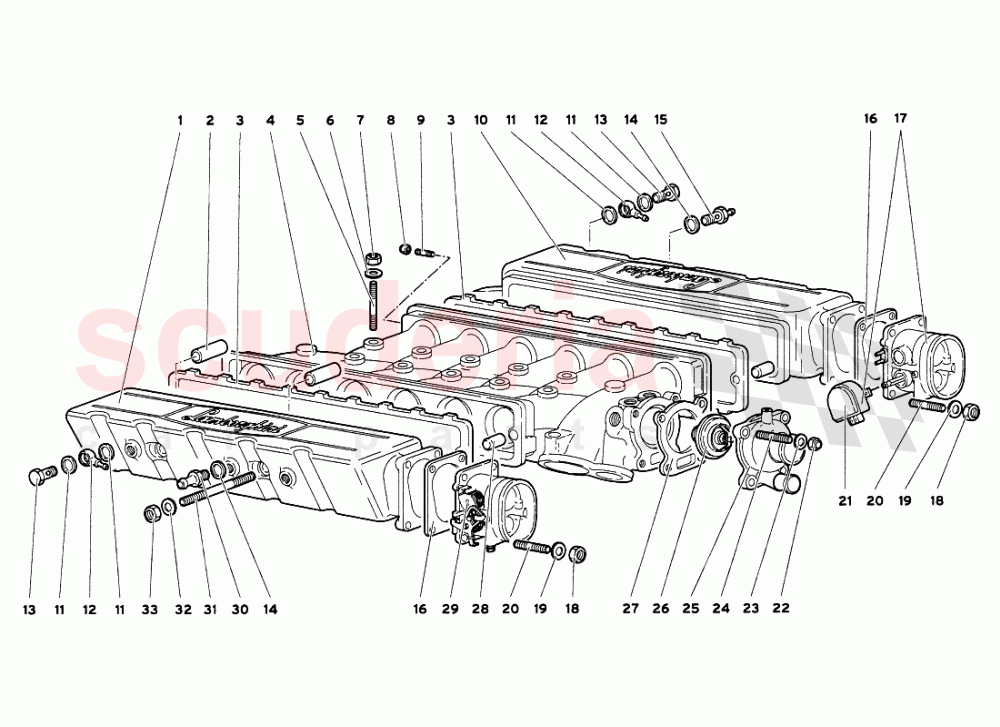

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	13001063	RIGHT COVER	13001063 RIGHT COVER	$5,927.40	1
002	13001226	SPACER	13001226 SPACER	$43.55	4
003	1323717	Gasket	1323717 Gasket	$58.06	2
004	490132008	INLET MANIFOLD	490132008 INLET MANIFOLD	$7,320.07	1
005	8300614	STUD	8300614 STUD	$8.77	11
006	N01152427	WASHER IN STOCK	N01152427 WASHER IN STOCK	$0.28	11
007	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.04	11
008	8200605	NUT IN STOCK	8200605 NUT IN STOCK	$3.06	1
009	8300613	STUD BOLT	8300613 STUD BOLT	$4.96 MSRP: ~~5.10~~ (2.7% off)	1
010	13001062	LEFT COVER	13001062 LEFT COVER	$5,927.40	1
011	8401621	WASHER	8401621 WASHER	$1.29	4
012	13001440	CONNECTION	13001440 CONNECTION	$11.31	2
013	13001439	SCREW	13001439 SCREW	$21.16	2
014	8401621	WASHER	8401621 WASHER	$1.29	2
015	1330455	CONNECTION	1330455 CONNECTION	$33.15	1
016	13006612	GASKET	13006612 GASKET	$9.55 MSRP: ~~9.70~~ (1.5% off)	2
017	1326293	THROTTLE HOLDER	1326293 THROTTLE HOLDER	$1,420.59 MSRP: ~~1,485.00~~ (4.3% off)	1
018	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.89	8
019	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.19	8
020	WHT003028	THREADED PIN	WHT003028 THREADED PIN	$22.30	8
021	1327641	POTENTIOMETER	1327641 POTENTIOMETER	$171.23 MSRP: ~~173.50~~ (1.3% off)	1
022	N0111849	NUT IN STOCK	N0111849 NUT IN STOCK	$2.15 MSRP: ~~7.25~~ (70.3% off)	4
023	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.19	4
024	8300803	STUD BOLT	8300803 STUD BOLT	$13.40	4
025	1732806	COVER	1732806 COVER	$1,074.44 MSRP: ~~1,125.00~~ (4.5% off)	1
026	17006576	THERMOSTAT	17006576 THERMOSTAT	$542.81	1
027	17006614	GASKET	17006614 GASKET	$31.26	1
028	WHT003577	DOWEL	WHT003577 DOWEL	$1.80 MSRP: ~~7.03~~ (74.4% off)	4
029	1326181	THROTTLE HOLDER	1326181 THROTTLE HOLDER	$1,305.64	1
030	1330882	CONNECTION	1330882 CONNECTION	-	1	Enquire
031	8301043	STUD	8301043 STUD	$5.26 MSRP: ~~5.40~~ (2.6% off)	4
032	8401008	WASHER	8401008 WASHER (Included in the engine gasket kit)	-	4	Enquire
033	8201003	NUT	8201003 NUT	$3.48	4
