Right Cylinder Head of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

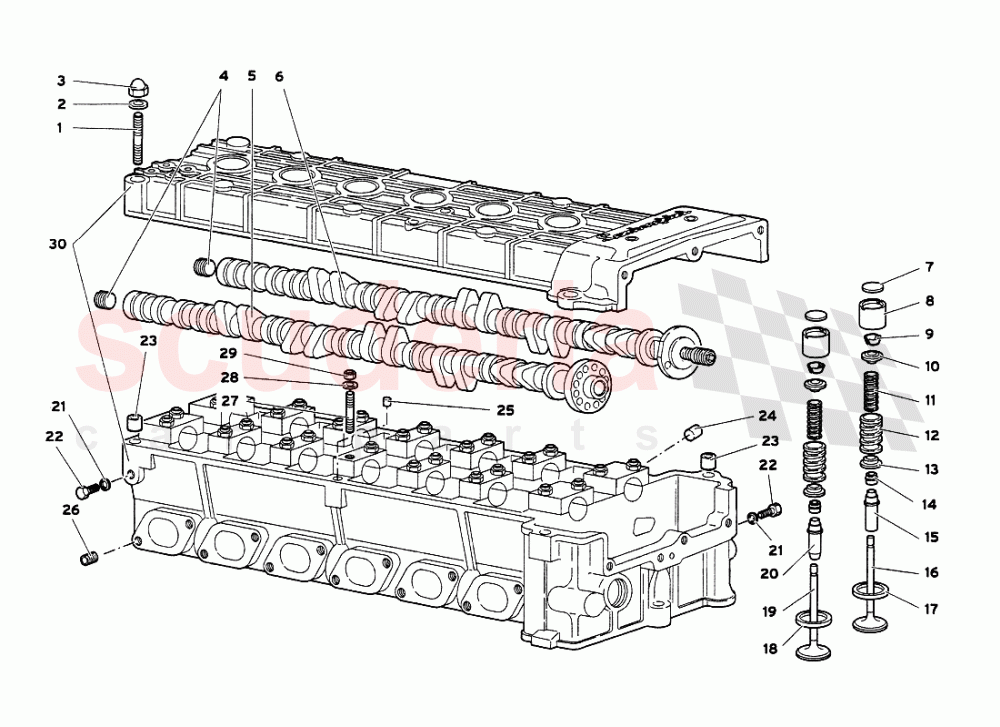

Lamborghini Diablo VT 6.0 (2000-2001) - Right Cylinder Head

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8300650	STUD BOLT	8300650 STUD BOLT	$12.05 MSRP: ~~12.55~~ (4% off)	1
002	8410602	WASHER IN STOCK	8410602 WASHER IN STOCK	$44.87	1
003	8200605	NUT IN STOCK	8200605 NUT IN STOCK	$3.06	1
004	8931409	PLUG	8931409 PLUG	$12.36 MSRP: ~~12.85~~ (3.8% off)	2
005	1232709	CAMSHAFT IN STOCK	1232709 CAMSHAFT IN STOCK	$16,203.43	1
006	12001310	CAMSHAFT	12001310 CAMSHAFT	$14,218.32	1
007	1220885	SHIM	1220885 SHIM	-	24	Enquire
007	1220886	SHIM	1220886 SHIM	-	24	Enquire
007	7M109320L	3.80 MM ADJUSTMENT SHIM	7M109320L 3.80 MM ADJUSTMENT SHIM	$55.72	24
007	1220879	SHIM	1220879 SHIM	-	24	Enquire
007	1220878	SHIM	1220878 SHIM	-	24	Enquire
007	1220883	SHIM	1220883 SHIM	-	24	Enquire
007	1220877	SHIM	1220877 SHIM	-	24	Enquire
007	1220882	SHIM	1220882 SHIM	-	24	Enquire
007	1220880	SHIM	1220880 SHIM	-	24	Enquire
007	1220881	SHIM	1220881 SHIM	-	24	Enquire
007	1220903	SHIM	1220903 SHIM	-	24	Enquire
007	1220902	SHIM	1220902 SHIM	-	24	Enquire
007	1220901	SHIM	1220901 SHIM	-	24	Enquire
007	1220905	SHIM	1220905 SHIM	-	24	Enquire
007	1220904	SHIM	1220904 SHIM	-	24	Enquire
007	1220906	SHIM	1220906 SHIM	-	24	Enquire
007	1220900	SHIM	1220900 SHIM	-	24	Enquire
007	1220893	SHIM	1220893 SHIM	-	24	Enquire
007	1220899	SHIM	1220899 SHIM	-	24	Enquire
007	1220897	SHIM	1220897 SHIM	-	24	Enquire
007	1220898	SHIM	1220898 SHIM	-	24	Enquire
007	1220896	SHIM	1220896 SHIM	-	24	Enquire
007	1220895	SHIM	1220895 SHIM	-	24	Enquire
007	1220892	Valve shims	1220892 Valve shims 4.00 MM	-	24	Enquire
007	7M109320S	4.10 MM ADJUSTMENT SHIM	7M109320S 4.10 MM ADJUSTMENT SHIM	$55.72	24
007	1220884	SHIM	1220884 SHIM	-	24	Enquire
007	7M109320N	3.90 MM ADJUSTMENT SHIM	7M109320N 3.90 MM ADJUSTMENT SHIM	$55.72	24
007	7M109320M	3.85 MM ADJUSTMENT SHIM	7M109320M 3.85 MM ADJUSTMENT SHIM	$11.22	24
007	1220891	SHIM	1220891 SHIM	-	24	Enquire
007	1220887	SHIM	1220887 SHIM	-	24	Enquire
008	7M109309	VALVE CONTROL TAPPET	7M109309 VALVE CONTROL TAPPET	$36.70	24
009	1235955	TAPPET LOCK CONE	1235955 TAPPET LOCK CONE	-	48	Enquire
010	7M109641	TAPPET UPPER PLATE	7M109641 TAPPET UPPER PLATE	$19.09	24
011	7M109633A	INNER SPRING	7M109633A INNER SPRING	$6.20	24
012	7M109623A	OUTER SPRING	7M109623A OUTER SPRING	$19.15	24
013	1220993	TAPPET PLATE	1220993 TAPPET PLATE	-	24	Enquire
014	7M109675	SEAL RING	7M109675 SEAL RING	$15.73	48
015	1237071	INTAKE VALVE GUIDE	1237071 INTAKE VALVE GUIDE	-	12	Enquire
016	7M109601	INTAKE VALVE	7M109601 INTAKE VALVE VALVOLA ASPIRAZIONE	$72.71	12
017	1234790	VALVE SEAT	1234790 VALVE SEAT	-	12	Enquire
018	1234791	VALVE SEAT	1234791 VALVE SEAT	-	12	Enquire
019	7M109611	EXHAUST VALVE	7M109611 EXHAUST VALVE	$104.17	12
020	1237072	EXHAUST VALVE GUIDE	1237072 EXHAUST VALVE GUIDE	-	12	Enquire
021	8400818	WASHER	8400818 WASHER (Included in the engine gasket kit)	-	2	Enquire
022	8100839	SCREW	8100839 SCREW	$0.46 MSRP: ~~7.31~~ (93.7% off)	2
023	8800604	BUSHING	8800604 BUSHING	-	2	Enquire
024	1122089	DOWEL	1122089 DOWEL	$16.80 MSRP: ~~17.60~~ (4.5% off)	2
025	8850302	PIN - SPINA	8850302 PIN - SPINA	-	2	Enquire
026	8840802	HELI-COIL	8840802 HELI-COIL	$3.24	12
027	8300666	STUD BOLT	8300666 STUD BOLT	$42.30 MSRP: ~~44.20~~ (4.3% off)	28
028	8410602	WASHER IN STOCK	8410602 WASHER IN STOCK	$44.87	28
029	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 IN STOCK	$0.33 MSRP: ~~7.29~~ (95.5% off)	28
030	460132010	RH CYLINDER HEAD	460132010 RH CYLINDER HEAD	$20,162.65	1
