CRANKCASE of Ferrari Ferrari F12 Berlinetta

View All

Ferrari F12 Berlinetta - CRANKCASE

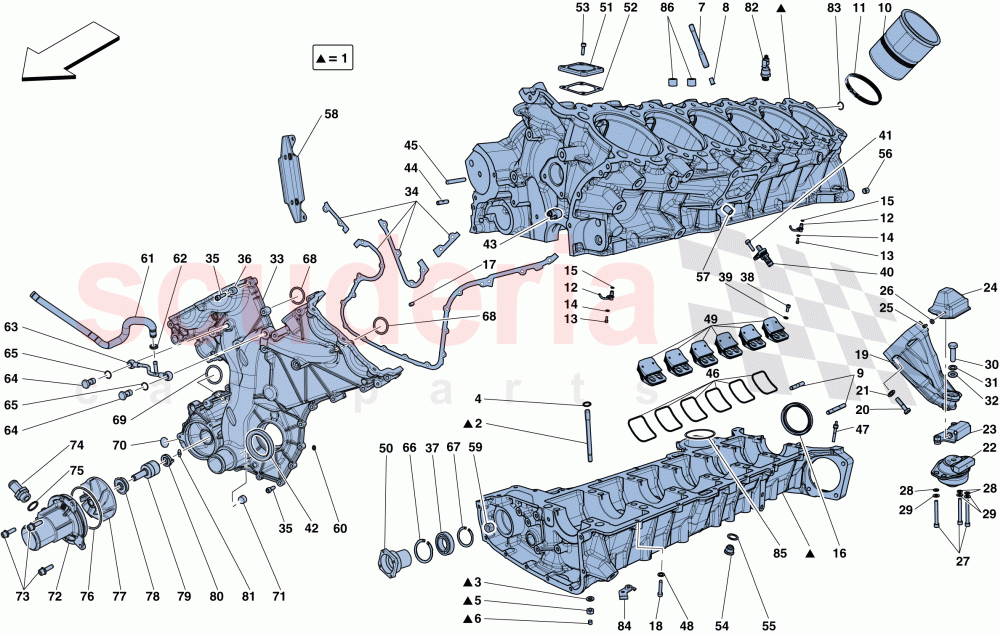

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	326982	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$8,324.06	To Order

Photo	Part No	Description	Price (each)	Stock
	231823	STUD BOLT	$7.03	To Order
	217796	STUD BOLT	$11.18	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER D.10.2-20 X 2	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	134704	O-RING	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	$4.30	To Order

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT CRANKCASE	$15.17	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	$2.97	To Order

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD BOLT	$1.65	To Order
	13546834	STUD BOLT	$1.65	To Order
	13547234	STUD BOLT	$15.66	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	266366	CYLINDER SLEEVE	$304.39	To Order

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	$2.58	To Order

Photo	Part No	Description	Price (each)	Stock
	264087	PISTON COOLING NOZZLE	$30.47	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	164877	O-RING	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	240214	GASKET	$62.56	To Order

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	$0.44	To Order
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	267423	RH ENGINE STRUT	$336.95	To Order
	267424	LH ENGINE STRUT	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	11234734	SCREW	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	259757	COMPL. LH FLEXIBLE ENGINE MOUNTING BUSH	$465.32	To Order
	259756	COMPL. RH FLEXIBLE ENGINE MOUNTING BUSH	$465.32	To Order

Photo	Part No	Description	Price (each)	Stock
	269828	RH ENGINE MOUNTING BUSH LIMITER BRACKET	$158.84	To Order
	269829	LH ENGINE MOUNTING BUSH LIMITER BRACKET	$158.84	To Order

Photo	Part No	Description	Price (each)	Stock
	277259	BUSH HEAT SHIELD	$120.33	To Order

Photo	Part No	Description	Price (each)	Stock
	14305024	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	285972	SCREW	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	15215834	SCREW	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	10738021	WASHER	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	324199	FRONT CRANKCASE COVER	$665.28	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order
	231625	SCREW	$0.65	To Order
	231624	SCREW	$0.44	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	281356	SPACER	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	128799	BEARING	$104.49	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	857098	ANGULAR SPEED SENSOR	$89.94	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	210359	GASKET	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	294944	COMPL. CHAIN COOLING NOZZLE	$101.07	To Order

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	$6.95	To Order

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	$3.45	To Order

Photo	Part No	Description	Price (each)	Stock
	154691	GASKET	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	219283	STUD BOLT	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	255136	COMPL. VALVE HOLDER	$272.34	To Order

Photo	Part No	Description	Price (each)	Stock
	295132	PUMP DRIVE JOINT	$444.36	To Order

Photo	Part No	Description	Price (each)	Stock
	208451	INSPECTION HATCH COVER	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED PLUG M22 X 1.5	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	10261860	GASKET	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	$2.37	To Order

Photo	Part No	Description	Price (each)	Stock
	218440	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280123	MOUNTING BRACKET FOR CENTRAL ENGINE CABLES	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	216292	GASKET	$4.15	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	$1.56	To Order
	177995	CLAMP	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	294135	COMPL. WATER DRAIN PIPE	$497.41	To Order

Photo	Part No	Description	Price (each)	Stock
	211847	HOSE	$166.55	To Order

Photo	Part No	Description	Price (each)	Stock
	11061576	SEEGER RING	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	11068376	SEEGER RING	$0.49	To Order

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	289278	O-RING	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	10159001	PLUG	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	288787	WATER PUMP COVER	$60.76	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	253823	CONNECTOR	$120.75	To Order

Photo	Part No	Description	Price (each)	Stock
	11270550	O-RING	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	253797	GASKET	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	917267	WATER PUMP ROTOR	$221.39	To Order

Photo	Part No	Description	Price (each)	Stock
	252192	WATER PUMP GASKET	$221.32	To Order

Photo	Part No	Description	Price (each)	Stock
	295219	WATER PUMP BEARING	$235.16	To Order

Photo	Part No	Description	Price (each)	Stock
	295218	JOINT	$281.63	To Order

Photo	Part No	Description	Price (each)	Stock
	255939	CLIP	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	304074	OIL PRESSURE SENDER	$251.22	To Order

Photo	Part No	Description	Price (each)	Stock
	137192	O-RING	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	294290	WIRING HARNESS MOUNTING BRACKET	$21.48	To Order

Photo	Part No	Description	Price (each)	Stock
	176388	O-RING	$2.33	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	$6.66	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	326982	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	326982 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY Applicable from engine No. 304141	$8,324.06	1
2	231823	STUD BOLT	231823 STUD BOLT M12 X 1.75; Inner positioning	$7.03	14
2	217796	STUD BOLT	217796 STUD BOLT M12 X 1.75; Outer positioning	$11.18	14
3	178348	WASHER D.10.2-20 X 2	178348 WASHER D.10.2-20 X 2	$0.78	28
4	134704	O-RING	134704 O-RING	$0.15 MSRP: ~~1.00~~ (85% off)	28
5	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	$0.21 MSRP: ~~0.35~~ (40% off)	28
6	176421	CENTERING DOWEL	176421 CENTERING DOWEL	$4.30	14
7	802590	STUD BOLT CRANKCASE	802590 STUD BOLT CRANKCASE	$15.17	28
8	185360	CENTERING DOWEL	185360 CENTERING DOWEL	$2.97	4
9	13546834	STUD BOLT	13546834 STUD BOLT M10 X 1.25 X 20; Fastening gearbox housing to crankcase	$1.65	1
9	13546834	STUD BOLT	13546834 STUD BOLT M10 X 1.25 X 20; Fastening gearbox housing	$1.65	3
9	13547234	STUD BOLT	13547234 STUD BOLT M10 X 1.25 X 20; Fastening gearbox housing	$15.66	1
9	13546934	STUD BOLT	13546934 STUD BOLT M10 X 1.25 X 20; Fastening gearbox housing, dowel section	$1.78	2
10	266366	CYLINDER SLEEVE	266366 CYLINDER SLEEVE D. 94	$304.39 MSRP: ~~466.10~~ (34.7% off)	12
11	186251	O-RING	186251 O-RING	$2.58 MSRP: ~~3.20~~ (19.4% off)	36
12	264087	PISTON COOLING NOZZLE	264087 PISTON COOLING NOZZLE	$30.47	12
13	14302921	SCREW	14302921 SCREW M4 X 10	$0.06	12
14	11181474	WASHER	11181474 WASHER	$0.06	12
15	164877	O-RING	164877 O-RING	$0.29	12
16	240214	GASKET	240214 GASKET	$62.56 MSRP: ~~77.65~~ (19.4% off)	1
17	175611	CENTERING DOWEL	175611 CENTERING DOWEL Fastening front cover on crankcase	$1.78	2
18	231624	SCREW	231624 SCREW M6 X 45; Fastening crankcase to lower crankcase shell; Rear RH pump side	$0.44	1
18	231620	SCREW	231620 SCREW M6 X 25; Fastening crankcase to lower crankcase shell	$0.32 MSRP: ~~0.35~~ (8.6% off)	12
19	267423	RH ENGINE STRUT	267423 RH ENGINE STRUT	$336.95	1
19	267424	LH ENGINE STRUT	267424 LH ENGINE STRUT	$336.95	1
20	11234734	SCREW	11234734 SCREW M10 X 1.25 X 45; Fastening strut to crankcase	$0.79	8
21	11190574	WASHER	11190574 WASHER Fastening strut to crankcase	$0.06	8
22	259757	COMPL. LH FLEXIBLE ENGINE MOUNTING BUSH	259757 COMPL. LH FLEXIBLE ENGINE MOUNTING BUSH	$465.32	1
22	259756	COMPL. RH FLEXIBLE ENGINE MOUNTING BUSH	259756 COMPL. RH FLEXIBLE ENGINE MOUNTING BUSH	$465.32	1
23	269828	RH ENGINE MOUNTING BUSH LIMITER BRACKET	269828 RH ENGINE MOUNTING BUSH LIMITER BRACKET	$158.84	1
23	269829	LH ENGINE MOUNTING BUSH LIMITER BRACKET	269829 LH ENGINE MOUNTING BUSH LIMITER BRACKET	$158.84	1
24	277259	BUSH HEAT SHIELD	277259 BUSH HEAT SHIELD	$120.33	2
25	14305024	SCREW	14305024 SCREW M6 X 10	$0.18	4
26	14498801	WASHER	14498801 WASHER	$0.11 MSRP: ~~0.20~~ (45% off)	4
27	285972	SCREW	285972 SCREW M10 X 1.25 X 85	$17.63	6
28	127497	WASHER	127497 WASHER	$0.06 MSRP: ~~0.75~~ (92% off)	6
29	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	$1.91	6
30	15215834	SCREW	15215834 SCREW M12 X 1.75 X 60	$1.77	2
31	10738021	WASHER	10738021 WASHER	$1.26	2
32	127498	WASHER	127498 WASHER	$0.15 MSRP: ~~0.60~~ (75% off)	2
33	324199	FRONT CRANKCASE COVER	324199 FRONT CRANKCASE COVER Applicable from engine No. 304141	$665.28	1
35	231620	SCREW	231620 SCREW M6 X 30	$0.32 MSRP: ~~0.35~~ (8.6% off)	6
35	231625	SCREW	231625 SCREW M6 X 50	$0.65	11
35	231624	SCREW	231624 SCREW M6 X 45	$0.44	2
35	10589624	SCREW	10589624 SCREW M6 X 80	$0.31	3
35	14309224	SCREW	14309224 SCREW	$0.60	1
35	231620	SCREW	231620 SCREW M6 X 25	$0.32 MSRP: ~~0.35~~ (8.6% off)	6
36	281356	SPACER	281356 SPACER	$3.13	1
37	128799	BEARING	128799 BEARING	$104.49	1
38	13026924	SCREW	13026924 SCREW M6 X 14	$0.31	12
39	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	14
40	857098	ANGULAR SPEED SENSOR	857098 ANGULAR SPEED SENSOR	$89.94	1
41	231619	SCREW	231619 SCREW M6 X 20	$0.31	1
42	210359	GASKET	210359 GASKET	$43.31	1
43	294944	COMPL. CHAIN COOLING NOZZLE	294944 COMPL. CHAIN COOLING NOZZLE	$101.07	1
44	13543124	STUD BOLT	13543124 STUD BOLT M8 X 16; Shank length 16 mm	$6.95	1
45	13543824	STUD BOLT	13543824 STUD BOLT M8 X 16; Shank length 40 mm	$3.45	1
46	154691	GASKET	154691 GASKET	$1.77 MSRP: ~~2.40~~ (26.3% off)	6
47	219283	STUD BOLT	219283 STUD BOLT Fastening crankcase to rear LH lower crankcase shell	$17.63	1
48	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
49	255136	COMPL. VALVE HOLDER	255136 COMPL. VALVE HOLDER	$272.34	6
50	295132	PUMP DRIVE JOINT	295132 PUMP DRIVE JOINT	$444.36	1
51	208451	INSPECTION HATCH COVER	208451 INSPECTION HATCH COVER	$37.25	1
53	231619	SCREW	231619 SCREW M6 X 20	$0.31	4
54	104280	MAGNETIC THREADED PLUG M22 X 1.5	104280 MAGNETIC THREADED PLUG M22 X 1.5	$6.26 MSRP: ~~6.90~~ (9.3% off)	1
55	10261860	GASKET	10261860 GASKET	$0.45 MSRP: ~~1.00~~ (55% off)	1
56	100052	CENTERING DOWEL	100052 CENTERING DOWEL	$2.37	2
57	218440	THREADED INSERT	218440 THREADED INSERT	-	8	Enquire
58	280123	MOUNTING BRACKET FOR CENTRAL ENGINE CABLES	280123 MOUNTING BRACKET FOR CENTRAL ENGINE CABLES	$37.25	1
59	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	$3.32 MSRP: ~~4.17~~ (20.4% off)	1
60	216292	GASKET	216292 GASKET	$4.15	6
62	13126970	COLLAR	13126970 COLLAR No longer supplied; Replaced by 177995	$1.56	1
62	177995	CLAMP	177995 CLAMP	$1.20 MSRP: ~~2.15~~ (44.2% off)	1
63	294135	COMPL. WATER DRAIN PIPE	294135 COMPL. WATER DRAIN PIPE	$497.41	1
64	211847	HOSE	211847 HOSE	$166.55	2
66	11061576	SEEGER RING	11061576 SEEGER RING	$1.77	1
67	11068376	SEEGER RING	11068376 SEEGER RING	$0.49 MSRP: ~~0.66~~ (25.8% off)	1
68	183010	O-RING	183010 O-RING	$1.70 MSRP: ~~2.89~~ (41.2% off)	2
69	289278	O-RING	289278 O-RING	$3.32	1
70	10159001	PLUG	10159001 PLUG	$0.47	1
71	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	$3.32 MSRP: ~~4.17~~ (20.4% off)	1
72	288787	WATER PUMP COVER	288787 WATER PUMP COVER	$60.76	1
73	231619	SCREW	231619 SCREW M6 X 18	$0.31	3
74	253823	CONNECTOR	253823 CONNECTOR	$120.75	1
75	11270550	O-RING	11270550 O-RING	$1.07	1
76	253797	GASKET	253797 GASKET	$6.26	1
77	917267	WATER PUMP ROTOR	917267 WATER PUMP ROTOR	$221.39	1
78	252192	WATER PUMP GASKET	252192 WATER PUMP GASKET	$221.32	1
79	295219	WATER PUMP BEARING	295219 WATER PUMP BEARING	$235.16	1
80	295218	JOINT	295218 JOINT	$281.63	1
81	255939	CLIP	255939 CLIP	$0.11	1
82	304074	OIL PRESSURE SENDER	304074 OIL PRESSURE SENDER	$251.22 MSRP: ~~287.64~~ (12.7% off)	1
83	137192	O-RING	137192 O-RING	$0.37 MSRP: ~~0.50~~ (26% off)	1
84	294290	WIRING HARNESS MOUNTING BRACKET	294290 WIRING HARNESS MOUNTING BRACKET	$21.48	1
85	176388	O-RING	176388 O-RING	$2.33 MSRP: ~~3.95~~ (41% off)	1
86	282753	THREADED PLUG	282753 THREADED PLUG	$6.66	6
