Power Steering Pump And Reservoir

Ferrari F12 Berlinetta

Find Your Part

Ferrari F12 Berlinetta - POWER STEERING PUMP AND RESERVOIR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
287847 POWER STEERING FLUID RESERVOIR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14058519 FLANGED NUT M8 X 8 Enquire To Order
Photo Part No Description Price (each) Stock
289074 PIPE FROM RESERVOIR TO POWER STEERING PUMP Enquire To Order
Photo Part No Description Price (each) Stock
13126370 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
287919 PIPE FROM RADIATOR TO RESERVOIR Enquire To Order
296312 PIPE FROM RADIATOR TO RESERVOIR Enquire To Order
Photo Part No Description Price (each) Stock
13127070 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
14059211 NUT Enquire To Order
Photo Part No Description Price (each) Stock
10441390 P clip Bracket With Sheath D.12 Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
277568 POWER STEERING PUMP Enquire To Order
Photo Part No Description Price (each) Stock
287933 PULLEY ON POWER STEERING PUMP Enquire To Order
Photo Part No Description Price (each) Stock
287934 FRONT POWER STEERING PUMP MOUNT Enquire To Order
Photo Part No Description Price (each) Stock
84317700 SCREW 8 X 30 Enquire To Order
Photo Part No Description Price (each) Stock
231620 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
266865 REAR POWER STEERING PUMP MOUNT Enquire To Order
Photo Part No Description Price (each) Stock
288967 POWER STEERING PUMP BRACE Enquire To Order
Photo Part No Description Price (each) Stock
267869 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11186374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
222606 BREATHER PIPE UNION Enquire To Order
Photo Part No Description Price (each) Stock
282640 RUBBER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
282641 OIL BREATHER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
288966 POWER STEERING PUMP SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
178772 SPACER STUD Enquire To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
250318 SNAP CLIP Enquire To Order
Photo Part No Description Price (each) Stock
208586 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
259508 CLIP Enquire To Order
239094 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
265097 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
268347 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
231627 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
84317700 SCREW 8 X 30 Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
13126170 CLAMP Enquire To Order
View All

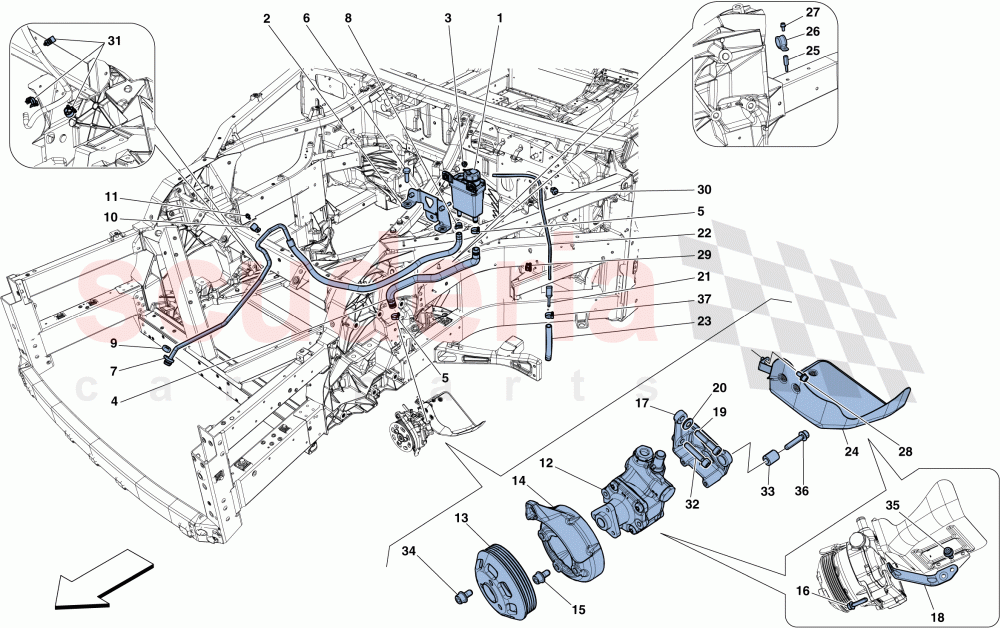

POWER STEERING PUMP AND RESERVOIR of Ferrari Ferrari F12 Berlinetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 287847
POWER STEERING FLUID RESERVOIR BRACKET 		- 1 Enquire
3 14058519
FLANGED NUT M8 X 8 		- 2 Enquire
4 289074
PIPE FROM RESERVOIR TO POWER STEERING PUMP 		- 1 Enquire
5 13126370
COLLAR 		- 2 Enquire
6 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 20 		- 2 Enquire
7 287919
PIPE FROM RADIATOR TO RESERVOIR
Applicable up to Ass. No. 111369 		- 1 Enquire
7 296312
PIPE FROM RADIATOR TO RESERVOIR
Applicable from Ass. No. 111370 		- 1 Enquire
8 13127070
COLLAR 		- 1 Enquire
9 14059211
NUT 		- 1 Enquire
10 10441390
P clip Bracket With Sheath D.12
D. 12 		- 1 Enquire
11 248334
SCREW M6 X 14MM
M6 X 14 		- 1 Enquire
12 277568
POWER STEERING PUMP 		- 1 Enquire
13 287933
PULLEY ON POWER STEERING PUMP 		- 1 Enquire
14 287934
FRONT POWER STEERING PUMP MOUNT 		- 1 Enquire
15 84317700
SCREW 8 X 30
M8 X 25 		- 3 Enquire
16 231620
SCREW
M6 X 30 		- 3 Enquire
17 266865
REAR POWER STEERING PUMP MOUNT 		- 1 Enquire
18 288967
POWER STEERING PUMP BRACE 		- 1 Enquire
19 267869
SCREW
M8 X 40 		- 1 Enquire
20 11186374
WASHER 		- 1 Enquire
21 222606
BREATHER PIPE UNION 		- 1 Enquire
22 282640
RUBBER PIPE 		- 1 Enquire
23 282641
OIL BREATHER PIPE 		- 1 Enquire
24 288966
POWER STEERING PUMP SHIELD 		- 1 Enquire
25 178772
SPACER STUD 		- 1 Enquire
26 291225
P clip Bracket With Sheath 		- 1 Enquire
27 248334
SCREW M6 X 14MM
M6 X 14 		- 1 Enquire
28 248334
SCREW M6 X 14MM
M6 X 12 		- 1 Enquire
29 250318
SNAP CLIP 		- 1 Enquire
30 208586
CLIP 		- 1 Enquire
31 259508
CLIP 		- 2 Enquire
31 239094
CLIP 		- 1 Enquire
32 265097
SCREW
M8 X 40 		- 1 Enquire
33 268347
BUSHING 		- 1 Enquire
34 231627
SCREW
M8 X 16 		- 3 Enquire
35 84317700
SCREW 8 X 30
M8 X 25 		- 1 Enquire
36 248334
SCREW M6 X 14MM
M6 X 14 		- 1 Enquire
37 13126170
CLAMP 		- 1 Enquire
