Name: ALTERNATOR - STARTER MOTOR
Rating: 5.0 (1 reviews)

ALTERNATOR - STARTER MOTOR of Ferrari Ferrari F12 Berlinetta

View All

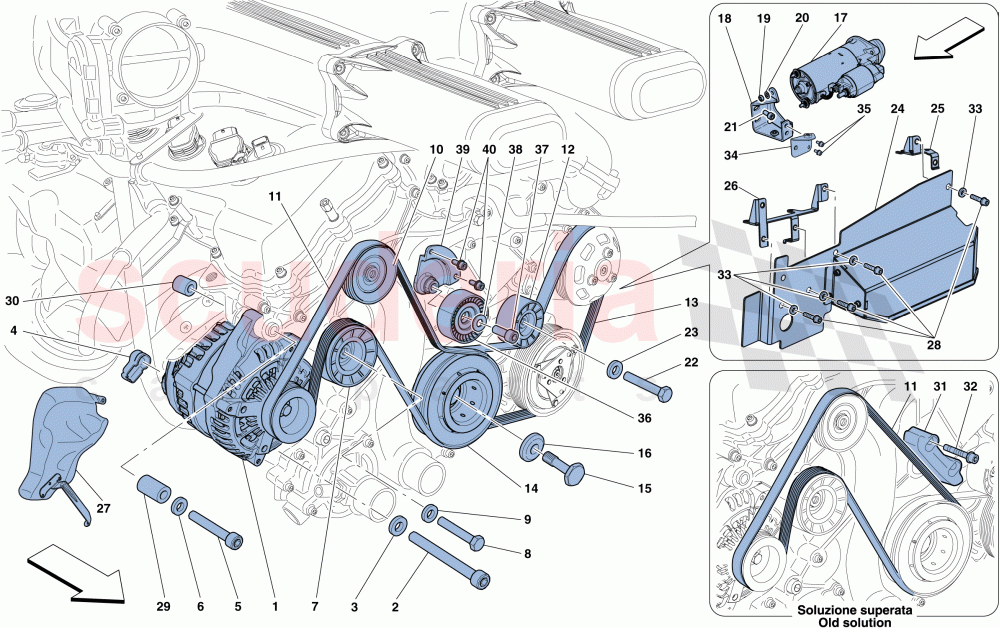

Ferrari F12 Berlinetta - ALTERNATOR - STARTER MOTOR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	325301	ALTERNATOR	$1,654.57	To Order
	322484	ALTERNATOR	$1,727.52	To Order

Photo	Part No	Description	Price (each)	Stock
	14308724	SCREW	$3.68	To Order

Photo	Part No	Description	Price (each)	Stock
	10569474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	154803	PROTECTIVE CAP	$5.43	To Order

Photo	Part No	Description	Price (each)	Stock
	14308224	SCREW	$1.13	To Order

Photo	Part No	Description	Price (each)	Stock
	10569474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	8332052	BELT TENSIONER	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	268567	SCREW	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	295763	BELT TIGHTENER	$59.35	To Order
	271019	FIXED MULE PULLEY	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	314330	BELT	$41.98	To Order
	318332	BELT	$60.38	To Order

Photo	Part No	Description	Price (each)	Stock
	233644	BELT TIGHTENER	$127.36	To Order

Photo	Part No	Description	Price (each)	Stock
	285348	BELT - ALTERNATOR/STARTER MOTOR	$44.38	To Order

Photo	Part No	Description	Price (each)	Stock
	319033	ANCILLARY DRIVE BELT	$702.38	To Order
	321956	ANCILLARY DRIVE BELT	$545.55	To Order

Photo	Part No	Description	Price (each)	Stock
	196216	SCREW	$75.92	To Order

Photo	Part No	Description	Price (each)	Stock
	263683	WASHER	$52.89	To Order

Photo	Part No	Description	Price (each)	Stock
	962187	STARTER MOTOR	$766.28	To Order

Photo	Part No	Description	Price (each)	Stock
	277661	REAR STARTER MOTOR MOUNTING BRACKET	$75.95	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12646621	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	248471	SCREW	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	284426	SCREW	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	341579	STARTER MOTOR HEAT SHIELD	$473.02	To Order

Photo	Part No	Description	Price (each)	Stock
	291924	BRACKET	$42.98	To Order

Photo	Part No	Description	Price (each)	Stock
	959229	STARTER MOTOR SHIELD MOUNTING BRACKET	$136.16	To Order

Photo	Part No	Description	Price (each)	Stock
	290295	ALTERNATOR HEAT SHIELD	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	258137	BUSH	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	288320	THREADED BUSHING	$13.70	To Order

Photo	Part No	Description	Price (each)	Stock
	294476	ALTERNATOR BELT FIXED SHOE	$140.46	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	12646621	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	282190	WIRING HARNESS FASTENER BRACKET	$15.87	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	294613	SMOOTH PULLEY	$105.89	To Order

Photo	Part No	Description	Price (each)	Stock
	14307434	SCREW	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	324198	BELT TIGHTENER MOUNT	$545.55	To Order
	294538	BELT TIGHTENER MOUNT	$545.55	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	325301	ALTERNATOR	325301 ALTERNATOR Applicable up to engine No. 304140	$1,654.57	1
1	322484	ALTERNATOR	322484 ALTERNATOR Applicable from engine No. 304141	$1,727.52	1
2	14308724	SCREW	14308724 SCREW M10 X 1.25 X 100	$3.68	1
3	10569474	WASHER	10569474 WASHER	$0.06	1
4	154803	PROTECTIVE CAP	154803 PROTECTIVE CAP	$5.43	1
5	14308224	SCREW	14308224 SCREW M10 X 1.25 X 65	$1.13	1
6	10569474	WASHER	10569474 WASHER	$0.06	1
7	8332052	BELT TENSIONER	8332052 BELT TENSIONER	$256.72	1
8	268567	SCREW	268567 SCREW	$5.58	1
9	11193874	WASHER	11193874 WASHER	$0.06	1
10	295763	BELT TIGHTENER	295763 BELT TIGHTENER Applicable from engine No. 304141	$59.35	1
10	271019	FIXED MULE PULLEY	271019 FIXED MULE PULLEY Applicable up to engine No. 304140	$481.36	1
11	314330	BELT	314330 BELT Applicable up to engine No. 304140	$41.98	1
11	318332	BELT	318332 BELT Applicable from engine No. 304141	$60.38	1
12	233644	BELT TIGHTENER	233644 BELT TIGHTENER	$127.36 MSRP: ~~154.63~~ (17.6% off)	1
13	285348	BELT - ALTERNATOR/STARTER MOTOR	285348 BELT - ALTERNATOR/STARTER MOTOR	$44.38 MSRP: ~~46.44~~ (4.4% off)	1
14	319033	ANCILLARY DRIVE BELT	319033 ANCILLARY DRIVE BELT Applicable up to engine No. 304140	$702.38	1
14	321956	ANCILLARY DRIVE BELT	321956 ANCILLARY DRIVE BELT Applicable from engine No. 304141	$545.55	1
15	196216	SCREW	196216 SCREW	$75.92	1
16	263683	WASHER	263683 WASHER	$52.89	1
17	962187	STARTER MOTOR	962187 STARTER MOTOR	$766.28	1
18	277661	REAR STARTER MOTOR MOUNTING BRACKET	277661 REAR STARTER MOTOR MOUNTING BRACKET	$75.95	1
19	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
20	12646621	WASHER	12646621 WASHER	$0.15	2
21	248471	SCREW	248471 SCREW M8 X 20	$1.07	2
22	284426	SCREW	284426 SCREW M8 X 65	$24.05	1
23	11193874	WASHER	11193874 WASHER	$0.06	1
24	341579	STARTER MOTOR HEAT SHIELD	341579 STARTER MOTOR HEAT SHIELD	$473.02	1
25	291924	BRACKET	291924 BRACKET	$42.98	1
26	959229	STARTER MOTOR SHIELD MOUNTING BRACKET	959229 STARTER MOTOR SHIELD MOUNTING BRACKET	$136.16	1
27	290295	ALTERNATOR HEAT SHIELD	290295 ALTERNATOR HEAT SHIELD	$224.63	1
28	248334	SCREW	248334 SCREW M6 X 14	$0.68	7
29	258137	BUSH	258137 BUSH	$5.58	2
30	288320	THREADED BUSHING	288320 THREADED BUSHING	$13.70	2
31	294476	ALTERNATOR BELT FIXED SHOE	294476 ALTERNATOR BELT FIXED SHOE Applicable up to engine No. 242122	$140.46	1
32	231619	SCREW	231619 SCREW M6 X 20; Applicable up to engine No. 242122	$0.31	2
33	12646621	WASHER	12646621 WASHER	$0.15	7
34	282190	WIRING HARNESS FASTENER BRACKET	282190 WIRING HARNESS FASTENER BRACKET	$15.87	1
35	248334	SCREW	248334 SCREW M6 X 12	$0.68	2
36	294613	SMOOTH PULLEY	294613 SMOOTH PULLEY Applicable from engine No. 242123	$105.89 MSRP: ~~134.94~~ (21.5% off)	1
37	14307434	SCREW	14307434 SCREW Applicable from engine No. 242123	$1.85 MSRP: ~~1.95~~ (5.1% off)	1
38	13578324	WASHER	13578324 WASHER Applicable from engine No. 242123	$0.23	1
39	324198	BELT TIGHTENER MOUNT	324198 BELT TIGHTENER MOUNT Applicable from engine No. 304141	$545.55	1
39	294538	BELT TIGHTENER MOUNT	294538 BELT TIGHTENER MOUNT Applicable from engine No. 242123 up to engine No. 304140	$545.55 MSRP: ~~692.83~~ (21.3% off)	1
40	248334	SCREW	248334 SCREW M6 X 16; Applicable from engine No. 242123	$0.68	2
