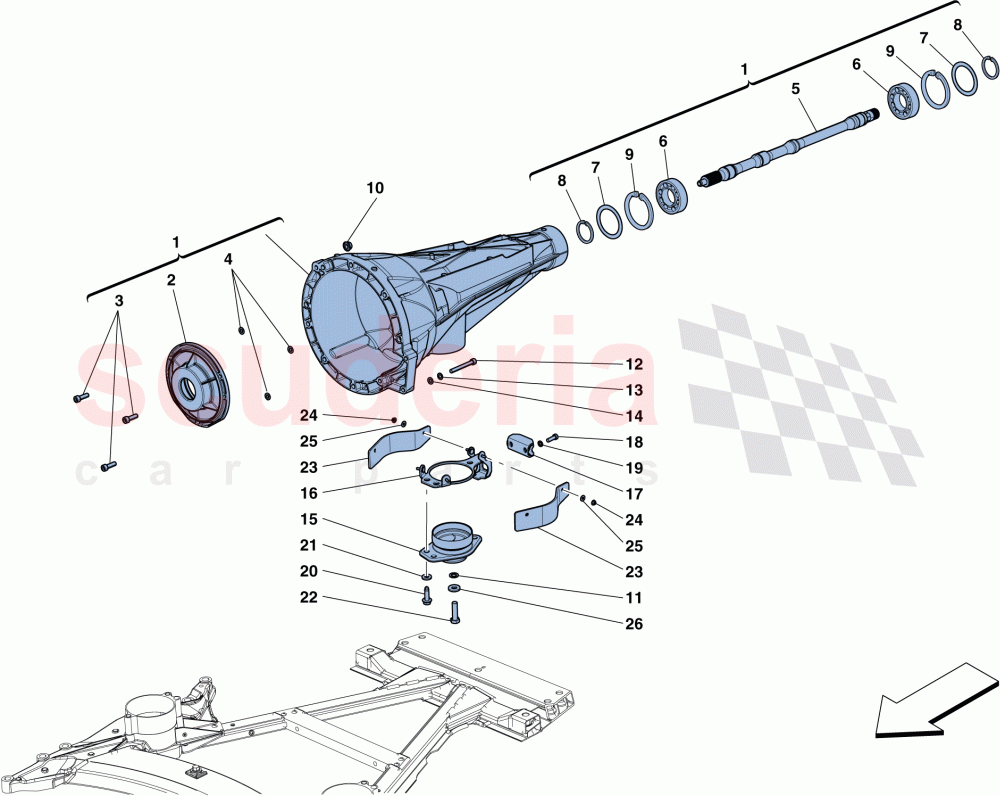

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	251921	TRANSMISSION HOUSING FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324866	TRANSMISSION HOUSING SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253629	COMPLETE BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253627	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11068874	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11062474	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14309024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289309	RUBBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915290	BUSH TRAVEL LIMITER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277524	BUSHING TRAVEL STOP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13028734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	18754324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269664	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11599534	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	273666	TRANSMISSION HOUSING BUSHING SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648524	WASHER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	251921	TRANSMISSION HOUSING FLANGE	251921 TRANSMISSION HOUSING FLANGE	-	1	Enquire
3	14306424	SCREW	14306424 SCREW	-	3	Enquire
4	12638524	WASHER	12638524 WASHER	-	3	Enquire
5	324866	TRANSMISSION HOUSING SHAFT	324866 TRANSMISSION HOUSING SHAFT	-	1	Enquire
6	253629	COMPLETE BEARING	253629 COMPLETE BEARING	-	2	Enquire
7	253627	RING	253627 RING	-	2	Enquire
8	11068874	SEEGER RING	11068874 SEEGER RING	-	2	Enquire
9	11062474	SNAP RING	11062474 SNAP RING	-	3	Enquire
10	14059421	NUT	14059421 NUT	-	3	Enquire
11	127498	WASHER	127498 WASHER	-	1	Enquire
12	14309024	SCREW	14309024 SCREW M8 X 70	-	3	Enquire
13	12638524	WASHER	12638524 WASHER	-	3	Enquire
14	12601374	WASHER	12601374 WASHER	-	2	Enquire
15	289309	RUBBER BUSHING	289309 RUBBER BUSHING	-	1	Enquire
16	915290	BUSH TRAVEL LIMITER BRACKET	915290 BUSH TRAVEL LIMITER BRACKET	-	1	Enquire
17	277524	BUSHING TRAVEL STOP BRACKET	277524 BUSHING TRAVEL STOP BRACKET	-	1	Enquire
18	13028734	SCREW	13028734 SCREW M8 X 25	-	2	Enquire
19	14499421	WASHER	14499421 WASHER	-	2	Enquire
20	18754324	SCREW	18754324 SCREW M10 X 1.25 X 35	-	3	Enquire
21	269664	WASHER	269664 WASHER	-	3	Enquire
22	11599534	SCREW	11599534 SCREW M12 X 1.75 X 45	-	1	Enquire
23	273666	TRANSMISSION HOUSING BUSHING SHIELD	273666 TRANSMISSION HOUSING BUSHING SHIELD	-	2	Enquire
24	14059114	NUT	14059114 NUT	-	4	Enquire
25	12638124	WASHER	12638124 WASHER	-	4	Enquire
26	12648524	WASHER	12648524 WASHER	-	1	Enquire
