Find Your Part

View All

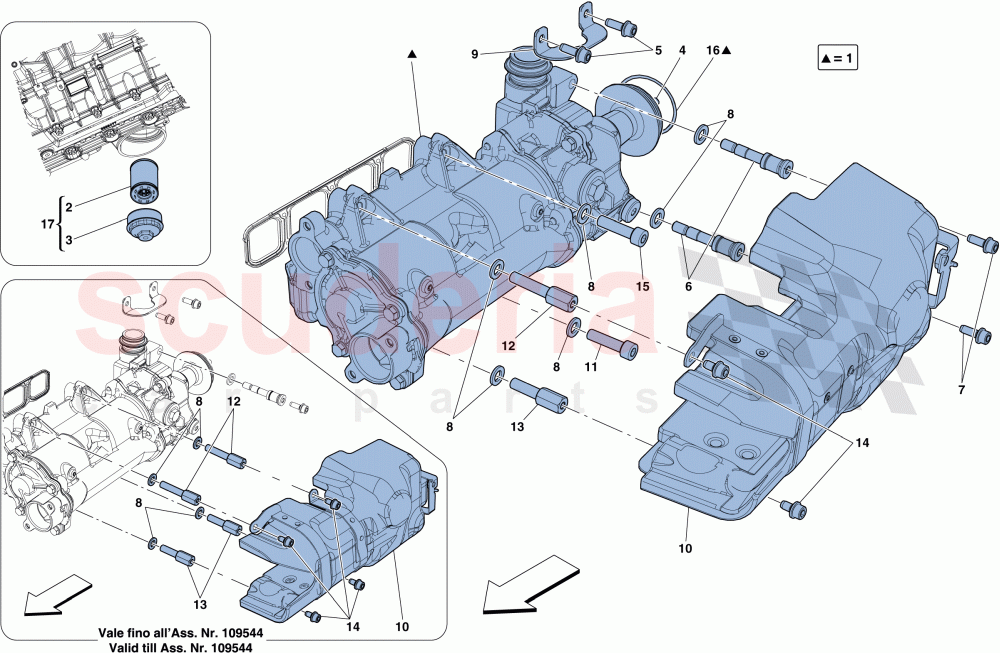

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	280900	OIL FILTER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	286244	OIL FILTER CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295134	HEXAGONAL OIL PUMP DRIVE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292495	CALIBRATED STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263347	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294337	SOUNDPROOFING SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	293410	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294005	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306624	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	123353	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	289950	OIL FILTER	Enquire	IN STOCK

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	280900	OIL FILTER IN STOCK	280900 OIL FILTER IN STOCK	-	1	Enquire
3	286244	OIL FILTER CAP	286244 OIL FILTER CAP After depletion, order compl. filter 289950; Applicable until depletion	-	1	Enquire
4	295134	HEXAGONAL OIL PUMP DRIVE ROD	295134 HEXAGONAL OIL PUMP DRIVE ROD	-	1	Enquire
5	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	2	Enquire
6	292495	CALIBRATED STUD BOLT	292495 CALIBRATED STUD BOLT	-	2	Enquire
7	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18 IN STOCK	-	2	Enquire
8	986899	WASHER	986899 WASHER	-	6	Enquire
9	263347	BRACKET	263347 BRACKET	-	1	Enquire
10	294337	SOUNDPROOFING SHIELD	294337 SOUNDPROOFING SHIELD For vehicles up to engine No. 193955, also order ref. 11 and 15	-	1	Enquire
11	14306424	SCREW IN STOCK	14306424 SCREW Applicable from engine No. 193956 IN STOCK	-	1	Enquire
12	293410	STUD BOLT	293410 STUD BOLT M8 X 35; Q.ty 1 from engine No. 193956	-	2	Enquire
13	294005	STUD BOLT	294005 STUD BOLT M8 X 25; Q.ty 1 from engine No. 193956	-	2	Enquire
14	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12; Q.ty 2 from engine No. 193956	-	4	Enquire
15	14306624	SCREW IN STOCK	14306624 SCREW Applicable from engine No. 193956 IN STOCK	-	1	Enquire
16	123353	O-RING IN STOCK	123353 O-RING IN STOCK	-	1	Enquire
17	289950	OIL FILTER IN STOCK	289950 OIL FILTER IN STOCK	-	1	Enquire
