RIGHT HAND CYLINDER HEAD of Ferrari Ferrari F12 Berlinetta

View All

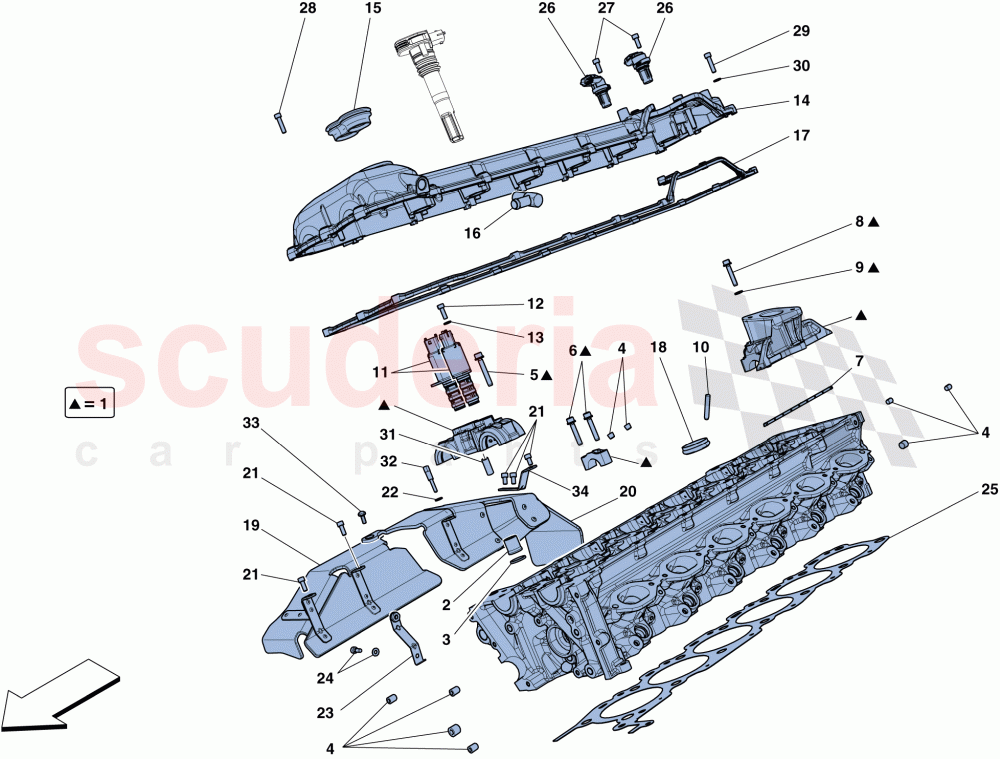

Ferrari F12 Berlinetta - RIGHT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	321187	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282400	THREADED PLUG	Enquire	To Order
	127635	THREADED PLUG	Enquire	To Order
	199760	THREADED PLUG	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	243720	SCREW	Enquire	To Order
	243721	SCREW WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239614	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	Enquire	To Order
	239502	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211641	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304221	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271268	RH CYLINDER HEAD COVER	Enquire	To Order
	292565	RH CYLINDER HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229353	SOLENOID VALVE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271521	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243800	RH HEAD COVER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223982	SPARK PLUG TUBE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293212	FRONT RH HEAD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293211	RH REAR HEAD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order
	11628424	SCREW	Enquire	To Order
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252099	SHIELD MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224573	TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157218	SCREW	Enquire	To Order
	157218	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157218	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200458	NON RETURN VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272344	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291172	RH HEAD HEAT SHIELD BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	321187	NUT	321187 NUT Fastening head to crankcase	-	28	Enquire
3	151117	WASHER 11.25-22X2.5	151117 WASHER 11.25-22X2.5 Fastening head to crankcase	-	28	Enquire
4	282400	THREADED PLUG	282400 THREADED PLUG M12 X 11	-	2	Enquire
4	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5; For rear water orifice cover	-	1	Enquire
4	199760	THREADED PLUG	199760 THREADED PLUG D. 6 X 1	-	7	Enquire
4	282755	THREADED PLUG	282755 THREADED PLUG D. 10 X 1.25; For oil circuit orifices	-	5	Enquire
4	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5; Inspection hole cover	-	12	Enquire
5	243720	SCREW	243720 SCREW M6 X 40	-	2	Enquire
5	243721	SCREW WITH WASHER	243721 SCREW WITH WASHER M6 X 45	-	4	Enquire
6	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 M6 X 35	-	20	Enquire
7	239614	GASKET	239614 GASKET	-	1	Enquire
8	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 M6 X 35	-	4	Enquire
8	239502	SCREW	239502 SCREW M6 X 25	-	1	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
10	211641	STUD BOLT	211641 STUD BOLT M8 X 16; Shank length 24 mm	-	12	Enquire
11	801187	OIL PRESSURE REGULATOR VALVE	801187 OIL PRESSURE REGULATOR VALVE	-	2	Enquire
12	14304221	SCREW	14304221 SCREW M5 X 16	-	2	Enquire
13	11181574	WASHER	11181574 WASHER	-	2	Enquire
14	271268	RH CYLINDER HEAD COVER	271268 RH CYLINDER HEAD COVER Applicable up to engine No. 201497	-	1	Enquire
14	292565	RH CYLINDER HEAD COVER	292565 RH CYLINDER HEAD COVER Applicable from engine No. 201498	-	1	Enquire
15	229353	SOLENOID VALVE GASKET	229353 SOLENOID VALVE GASKET	-	1	Enquire
16	271521	CONNECTOR	271521 CONNECTOR	-	1	Enquire
17	243800	RH HEAD COVER GASKET	243800 RH HEAD COVER GASKET	-	1	Enquire
18	223982	SPARK PLUG TUBE SEAL	223982 SPARK PLUG TUBE SEAL	-	6	Enquire
19	293212	FRONT RH HEAD HEAT SHIELD	293212 FRONT RH HEAD HEAT SHIELD	-	1	Enquire
20	293211	RH REAR HEAD HEAT SHIELD	293211 RH REAR HEAD HEAT SHIELD	-	1	Enquire
21	10977524	SCREW	10977524 SCREW No longer supplied; Replaced by 11628424	-	3	Enquire
21	11628424	SCREW	11628424 SCREW No longer supplied; Replaced by 233600	-	5	Enquire
21	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	5	Enquire
22	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
23	252099	SHIELD MOUNTING BRACKET	252099 SHIELD MOUNTING BRACKET	-	1	Enquire
24	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	1	Enquire
26	224573	TIMING SENSOR	224573 TIMING SENSOR	-	2	Enquire
27	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
28	157218	SCREW	157218 SCREW Applicable up to engine No. 201497	-	1	Enquire
28	157218	SCREW	157218 SCREW M6 X 25; Applicable from engine No. 201498	-	1	Enquire
29	157218	SCREW	157218 SCREW M6 X 25; Fastening cover to cylinder heads	-	17	Enquire
30	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	20	Enquire
31	200458	NON RETURN VALVE	200458 NON RETURN VALVE	-	2	Enquire
32	272344	STUD BOLT	272344 STUD BOLT	-	1	Enquire
33	11625524	SCREW	11625524 SCREW	-	2	Enquire
34	291172	RH HEAD HEAT SHIELD BRACKET	291172 RH HEAD HEAT SHIELD BRACKET	-	1	Enquire
