INTAKE MANIFOLD of Ferrari Ferrari F12 Berlinetta

View All

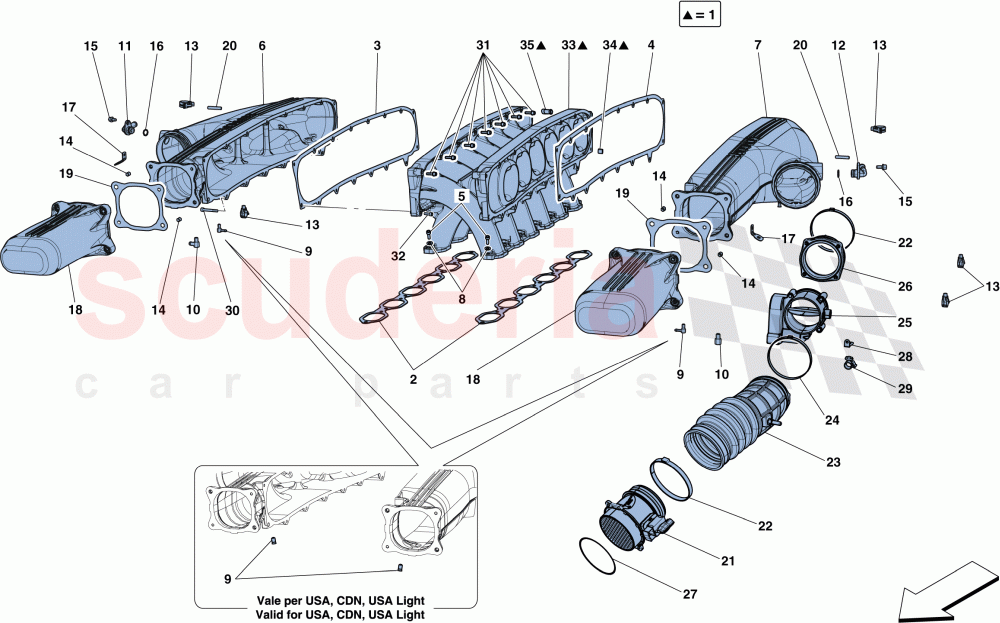

Ferrari F12 Berlinetta - INTAKE MANIFOLD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	288311	INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	983350	RH SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	983336	GUARNIZ.COLLETT.ASP.POLMONE SX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305574	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288308	RH INTAKE PLENUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288310	LH INTAKE PLENUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128016	CONNECTOR	Enquire	To Order
	219786	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174818	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243208	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243207	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222072	CLIP	Enquire	To Order
	198253	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123475	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262736	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288126	RESONATOR BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245028	AIR FLOW METER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	190151	Clamp	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	282238	RH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY	Enquire	To Order
	283689	LH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY	Enquire	To Order
	282239	LH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	900284	SCREW COLLAR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	331005	THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240262	SPACER FOR THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270053	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179243	PLATE	Enquire	To Order
	268987	CABLE RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231626	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288312	INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289886	THREADED CONNECTOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	288311	INTAKE MANIFOLD	288311 INTAKE MANIFOLD No longer supplied	-	1	Enquire
3	983350	RH SEAL	983350 RH SEAL	-	1	Enquire
4	983336	GUARNIZ.COLLETT.ASP.POLMONE SX	983336 GUARNIZ.COLLETT.ASP.POLMONE SX	-	1	Enquire
5	14305574	SCREW	14305574 SCREW M6 X 30	-	24	Enquire
6	288308	RH INTAKE PLENUM	288308 RH INTAKE PLENUM	-	1	Enquire
7	288310	LH INTAKE PLENUM	288310 LH INTAKE PLENUM	-	1	Enquire
8	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	24	Enquire
9	128016	CONNECTOR	128016 CONNECTOR Not for USA, CDN, USA LIGHT	-	2	Enquire
9	219786	THREADED PLUG	219786 THREADED PLUG Applicable for USA, CDN, USA LIGHT	-	2	Enquire
10	174818	CONNECTOR	174818 CONNECTOR	-	2	Enquire
11	243208	CONNECTOR	243208 CONNECTOR On RH plenum	-	1	Enquire
12	243207	CONNECTOR	243207 CONNECTOR On LH plenum	-	1	Enquire
13	222072	CLIP	222072 CLIP	-	3	Enquire
13	198253	CLIP	198253 CLIP	-	2	Enquire
14	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	4	Enquire
15	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
16	123475	GASKET	123475 GASKET	-	2	Enquire
17	262736	BRACKET	262736 BRACKET	-	2	Enquire
18	288126	RESONATOR BODY	288126 RESONATOR BODY	-	2	Enquire
20	11500524	STUD BOLT	11500524 STUD BOLT	-	2	Enquire
21	245028	AIR FLOW METER ARRIVING SOON	245028 AIR FLOW METER ARRIVING SOON	-	2	Enquire
22	190151	Clamp ARRIVING SOON	190151 Clamp ARRIVING SOON	-	4	Enquire
23	282238	RH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY	282238 RH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY Applicable for USA, CDN, USA LIGHT	-	1	Enquire
23	283689	LH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY	283689 LH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY Not for USA, CDN, USA LIGHT	-	1	Enquire
23	282239	LH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY	282239 LH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY Applicable for USA, CDN, USA LIGHT	-	1	Enquire
23	283688	RH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY	283688 RH BELLOW BETWEEN AIR FLOW METER AND THROTTLE BODY Not for USA, CDN, USA LIGHT	-	1	Enquire
24	900284	SCREW COLLAR ARRIVING SOON	900284 SCREW COLLAR ARRIVING SOON	-	2	Enquire
25	331005	THROTTLE BODY	331005 THROTTLE BODY	-	2	Enquire
26	240262	SPACER FOR THROTTLE BODY	240262 SPACER FOR THROTTLE BODY	-	2	Enquire
27	270053	Gasket	270053 Gasket	-	2	Enquire
28	179243	PLATE	179243 PLATE LH side	-	1	Enquire
28	268987	CABLE RETAINER BRACKET	268987 CABLE RETAINER BRACKET RH side; Not for USA, CDN, USA LIGHT	-	1	Enquire
29	178430	FASTENER CLIP	178430 FASTENER CLIP	-	2	Enquire
30	231626	SCREW	231626 SCREW M6 X 70	-	14	Enquire
31	231624	SCREW	231624 SCREW M6 X 45	-	16	Enquire
32	231622	SCREW	231622 SCREW M6 X 35	-	2	Enquire
33	288312	INTAKE MANIFOLD	288312 INTAKE MANIFOLD	-	1	Enquire
34	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	4	Enquire
35	289886	THREADED CONNECTOR	289886 THREADED CONNECTOR	-	2	Enquire
