Left Hand Cylinder Head

Ferrari 612 Scaglietti

Find Your Part

Ferrari 612 Scaglietti - LEFT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
207840 COMPL. LH CYLINDER HEAD $4,379.01 To Order
207840 COMPL. LH CYLINDER HEAD $4,379.01 To Order
203508 LH HEAD $3,318.03 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
154203 RH FRONT CAP Enquire To Order
Photo Part No Description Price (each) Stock
154205 LH FRONT CAP Enquire To Order
Photo Part No Description Price (each) Stock
154206 RH REAR CAP Enquire To Order
Photo Part No Description Price (each) Stock
154204 LH REAR CAP Enquire To Order
Photo Part No Description Price (each) Stock
154207 INTERMEDIATE CAP Enquire To Order
Photo Part No Description Price (each) Stock
13541424 STUD BOLT $0.42 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
198891 LH CYLINDER HEAD COVER Enquire To Order
Photo Part No Description Price (each) Stock
14326101 THREADED PLUG $1.17 To Order
Photo Part No Description Price (each) Stock
198904 THREADED CONNECTOR $28.87 To Order
Photo Part No Description Price (each) Stock
13541124 STUD BOLT $21.80 IN STOCK
Photo Part No Description Price (each) Stock
13525170 THREADED INSERT $0.55 To Order
Photo Part No Description Price (each) Stock
13516824 STUD BOLT $0.47 To Order
Photo Part No Description Price (each) Stock
182409 FRONT COVER $57.75 To Order
Photo Part No Description Price (each) Stock
163987 Camshaft Oil Seal $33.68 IN STOCK
Photo Part No Description Price (each) Stock
158349 O-Ring $5.17 IN STOCK
Photo Part No Description Price (each) Stock
182126 REAR COVER $33.68 IN STOCK
Photo Part No Description Price (each) Stock
182127 COVER SEAL $12.50 IN STOCK
Photo Part No Description Price (each) Stock
13525770 THREADED INSERT $2.87 To Order
Photo Part No Description Price (each) Stock
182406 COVER SEAL $12.82 To Order
Photo Part No Description Price (each) Stock
182407 REAR COVER $107.49 To Order
Photo Part No Description Price (each) Stock
13541124 STUD BOLT $21.80 IN STOCK
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.09 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
13524670 THREADED INSERT $0.73 To Order
Photo Part No Description Price (each) Stock
11500224 STUD BOLT $0.41 To Order
Photo Part No Description Price (each) Stock
183842 COMPLETE TIMING SENSOR $140.52 To Order
Photo Part No Description Price (each) Stock
182931 Cam Cover Gasket $49.73 IN STOCK
Photo Part No Description Price (each) Stock
154647 OIL DRAIN DUCT $64.33 To Order
Photo Part No Description Price (each) Stock
142599 O-RING CYLINDER HEAD $1.12 IN STOCK
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
14304124 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
182703 CABLE RETAINER BRACKET $10.73 To Order
Photo Part No Description Price (each) Stock
156834 ALLEN SCREW M6 X 30 $3.76 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
16043124 SCREW $0.16 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.09 To Order
Photo Part No Description Price (each) Stock
13525470 THREADED INSERT $0.55 IN STOCK
Photo Part No Description Price (each) Stock
13517024 STUD BOLT $0.55 To Order
Photo Part No Description Price (each) Stock
13539424 STUD BOLT $0.75 To Order
Photo Part No Description Price (each) Stock
182434 CENTRING DOWEL $2.01 To Order
Photo Part No Description Price (each) Stock
127635 THREADED PLUG $3.16 To Order
Photo Part No Description Price (each) Stock
156862 CHECK VALVE $15.85 To Order
Photo Part No Description Price (each) Stock
10298460 GASKET $0.15 IN STOCK
Photo Part No Description Price (each) Stock
163714 CAP $30.47 To Order
Photo Part No Description Price (each) Stock
10450690 BRACKET WITH SHEATH $0.70 To Order
Photo Part No Description Price (each) Stock
16043124 SCREW $0.16 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.73 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
View All

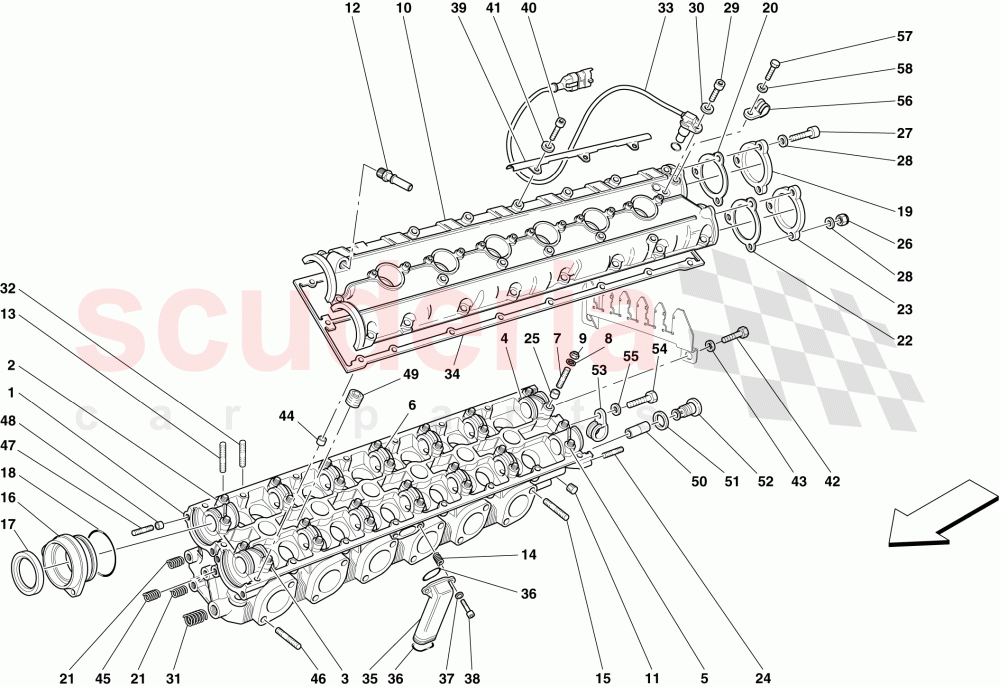

LEFT HAND CYLINDER HEAD of Ferrari Ferrari 612 Scaglietti Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 207840
COMPL. LH CYLINDER HEAD
Not for USA, CDN; Applicable up to Ass. No. 69518 		$4,379.01 1
- 207840
COMPL. LH CYLINDER HEAD
Applicable for USA, CDN; Applicable up to Ass. No. 69400 		$4,379.01 1
- 237928
COMPL. LH CYLINDER HEAD
Not for USA, CDN; Applicable from Ass. No. 69519 		- 1 Enquire
- 237928
COMPL. LH CYLINDER HEAD
Applicable for USA, CDN; Applicable from Ass. No. 69401 		- 1 Enquire
1 207840
COMPL. LH CYLINDER HEAD
With complete cylinder head; Not for USA, CDN; Applicable up to Ass. No. 69518 		$4,379.01 1
1 207840
COMPL. LH CYLINDER HEAD
With complete cylinder head; Applicable for USA, CDN; Applicable up to Ass. No. 69400 		$4,379.01 1
1 203508
LH HEAD
With complete cylinder head; Not for USA, CDN; Applicable from Ass. No. 69519 		$3,318.03 1
1 203508
LH HEAD
With complete cylinder head; Applicable for USA, CDN; Applicable from Ass. No. 69401 		$3,318.03 1
2 154203
RH FRONT CAP
With complete cylinder head 		- 1 Enquire
3 154205
LH FRONT CAP
With complete cylinder head 		- 1 Enquire
4 154206
RH REAR CAP
With complete cylinder head 		- 1 Enquire
5 154204
LH REAR CAP
With complete cylinder head 		- 1 Enquire
6 154207
INTERMEDIATE CAP
With complete cylinder head 		- 10 Enquire
7 13541424
STUD BOLT 		$0.42 (40% off) 28
8 11197774
WASHER
IN STOCK 		$0.06 (80% off) 28
9 14059290
FLANGED NUT M6
IN STOCK 		$1.43 28
10 198891
LH CYLINDER HEAD COVER
With complete cylinder head 		- 1 Enquire
11 14326101
THREADED PLUG 		$1.17 (29.1% off) 1
12 198904
THREADED CONNECTOR 		$28.87 1
13 13541124
STUD BOLT
IN STOCK 		$21.80 12
14 13525170
THREADED INSERT 		$0.55 2
15 13516824
STUD BOLT 		$0.47 (62.4% off) 8
16 182409
FRONT COVER 		$57.75 2
17 163987
Camshaft Oil Seal
IN STOCK 		$33.68 2
18 158349
O-Ring
IN STOCK 		$5.17 2
19 182126
REAR COVER
IN STOCK 		$33.68 1
20 182127
COVER SEAL
IN STOCK 		$12.50 (14.1% off) 1
21 13525770
THREADED INSERT 		$2.87 (21.8% off) 6
22 182406
COVER SEAL 		$12.82 (16.8% off) 1
23 182407
REAR COVER 		$107.49 (26.3% off) 1
24 13541124
STUD BOLT
IN STOCK 		$21.80 4
25 102725
CENTERING DOWEL 		$1.09 (51.6% off) 28
26 14059290
FLANGED NUT M6
IN STOCK 		$1.43 4
27 231619
SCREW
IN STOCK 		$0.31 2
28 11197774
WASHER
IN STOCK 		$0.06 (80% off) 6
29 248334
SCREW 		$0.68 1
30 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
31 13524670
THREADED INSERT 		$0.73 2
32 11500224
STUD BOLT 		$0.41 12
33 183842
COMPLETE TIMING SENSOR 		$140.52 (26.7% off) 1
34 182931
Cam Cover Gasket
IN STOCK 		$49.73 (12.6% off) 1
35 154647
OIL DRAIN DUCT 		$64.33 1
36 142599
O-RING CYLINDER HEAD
IN STOCK 		$1.12 (25.3% off) 2
37 12604178
Washer 		- 2 Enquire
38 14304124
SCREW 		$0.16 (78.7% off) 2
39 182703
CABLE RETAINER BRACKET 		$10.73 1
40 156834
ALLEN SCREW M6 X 30 		$3.76 18
41 11197774
WASHER
IN STOCK 		$0.06 (80% off) 18
42 16043124
SCREW
IN STOCK 		$0.16 1
43 127496
WASHER 		$0.06 (80% off) 1
44 102725
CENTERING DOWEL 		$1.09 (51.6% off) 2
45 13525470
THREADED INSERT
IN STOCK 		$0.55 (78% off) 2
46 13517024
STUD BOLT 		$0.55 4
47 13539424
STUD BOLT 		$0.75 (68.4% off) 4
48 182434
CENTRING DOWEL 		$2.01 4
49 127635
THREADED PLUG 		$3.16 (24.2% off) 4
50 156862
CHECK VALVE 		$15.85 (31.3% off) 1
51 10298460
GASKET
IN STOCK 		$0.15 (88% off) 1
52 163714
CAP 		$30.47 1
53 10450690
BRACKET WITH SHEATH 		$0.70 (58.8% off) 1
54 16043124
SCREW
IN STOCK 		$0.16 1
55 127496
WASHER 		$0.06 (80% off) 1
56 10441790
BRACKET WITH SHEATH 		$0.73 (78.8% off) 1
57 10977524
SCREW 		$0.15 1
58 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
