ENGINE COVERS of Ferrari Ferrari 612 Scaglietti

View All

Ferrari 612 Scaglietti - ENGINE COVERS

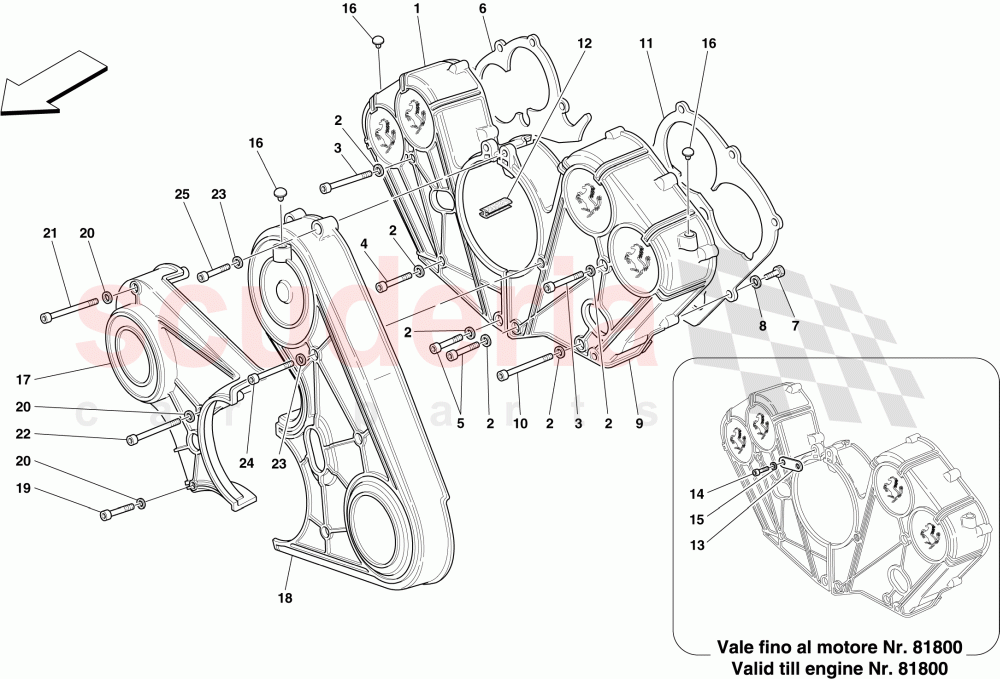

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	155422	RH CASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175732	SCREW -Valid from engine Nr. 81801-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156828	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156830	ALLEN SCREW M6 X 40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155819	RH SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155479	LH CASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156839	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155820	LH SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156786	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199119	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198312	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199118	FASTENING BUTTON	Enquire	To Order
	199118	FASTENING BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209853	COMPRESSOR-ALTERNATOR BELT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155576	WATER/POWER STEERING PUMP BELT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156830	ALLEN SCREW M6 X 40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175732	SCREW -Valid from engine Nr. 81801-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156832	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156831	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156830	ALLEN SCREW M6 X 40	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	155422	RH CASE	155422 RH CASE	-	1	Enquire
2	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
3	175732	SCREW -Valid from engine Nr. 81801-	175732 SCREW -Valid from engine Nr. 81801-	-	2	Enquire
4	156828	SCREW	156828 SCREW	-	1	Enquire
5	156830	ALLEN SCREW M6 X 40	156830 ALLEN SCREW M6 X 40	-	2	Enquire
6	155819	RH SHIELD	155819 RH SHIELD	-	1	Enquire
7	10977724	SCREW	10977724 SCREW	-	11	Enquire
8	12637824	WASHER	12637824 WASHER	-	11	Enquire
9	155479	LH CASE	155479 LH CASE	-	1	Enquire
10	156839	SCREW	156839 SCREW	-	1	Enquire
11	155820	LH SHIELD	155820 LH SHIELD	-	1	Enquire
12	156786	GASKET	156786 GASKET	-	1	Enquire
13	199119	PLATE	199119 PLATE Applicable up to engine No. 81800	-	1	Enquire
14	198312	SCREW	198312 SCREW Applicable up to engine No. 81800	-	2	Enquire
15	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Applicable up to engine No. 81800	-	2	Enquire
16	199118	FASTENING BUTTON	199118 FASTENING BUTTON Applicable up to engine No. 81800	-	2	Enquire
16	199118	FASTENING BUTTON	199118 FASTENING BUTTON Applicable from engine No. 81801	-	3	Enquire
17	209853	COMPRESSOR-ALTERNATOR BELT COVER	209853 COMPRESSOR-ALTERNATOR BELT COVER Applicable from engine No. 81801	-	1	Enquire
18	155576	WATER/POWER STEERING PUMP BELT COVER	155576 WATER/POWER STEERING PUMP BELT COVER Applicable from engine No. 81801	-	1	Enquire
19	156830	ALLEN SCREW M6 X 40	156830 ALLEN SCREW M6 X 40 Applicable from engine No. 81801	-	1	Enquire
20	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Applicable from engine No. 81801	-	3	Enquire
21	175732	SCREW -Valid from engine Nr. 81801-	175732 SCREW -Valid from engine Nr. 81801- Applicable from engine No. 81801	-	1	Enquire
22	156832	SCREW	156832 SCREW Applicable from engine No. 81801	-	1	Enquire
23	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Applicable from engine No. 81801	-	5	Enquire
24	156831	SCREW	156831 SCREW Applicable from engine No. 81801	-	2	Enquire
25	156830	ALLEN SCREW M6 X 40	156830 ALLEN SCREW M6 X 40 Applicable from engine No. 81801	-	2	Enquire
