ENGINE/GEARBOX CONNECTOR PIPE AND INSULATION of Ferrari Ferrari 612 Scaglietti

View All

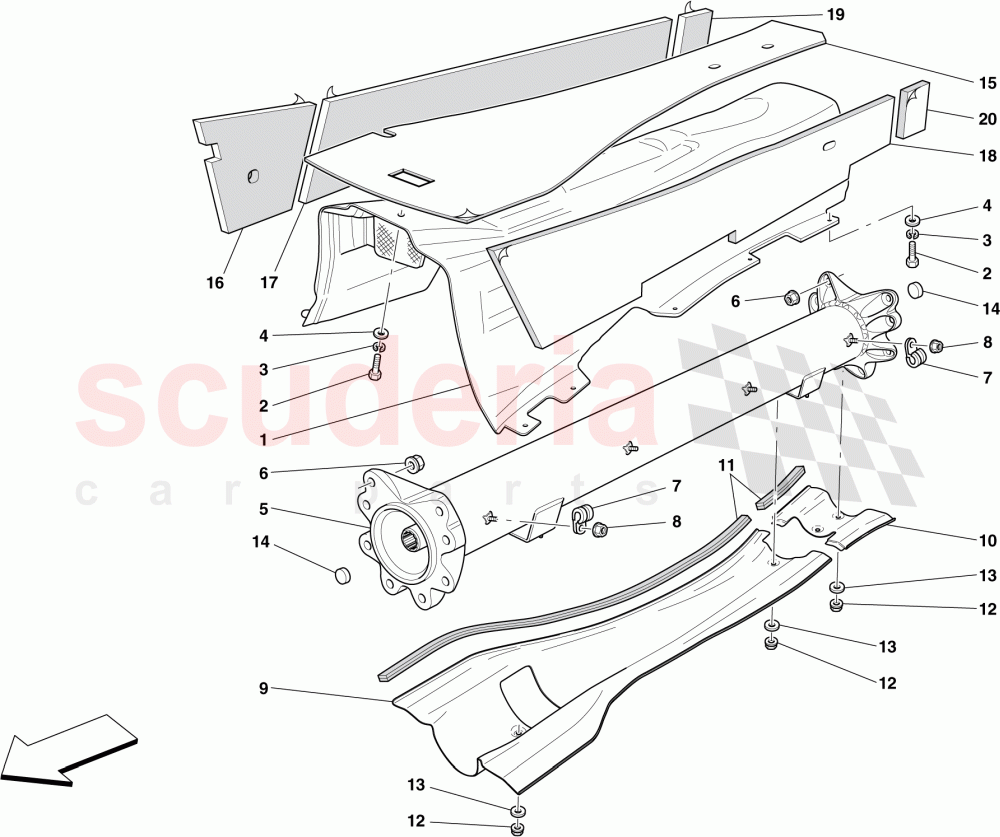

Ferrari 612 Scaglietti - ENGINE/GEARBOX CONNECTOR PIPE AND INSULATION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	68120900	COMPLETE TUNNEL HEAT SHIELD	Enquire	To Order
	68120900	COMPLETE TUNNEL HEAT SHIELD	Enquire	To Order
	80988600	COMPLETE TUNNEL HEAT SHIELD	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	10902380	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198483	ENGINE-GEARBOX CONNECTOR PIPE	Enquire	To Order
	205804	ENGINE-GEARBOX CONNECTOR PIPE	Enquire	To Order
	227907	ENGINE-GEARBOX CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66965500	PIPE SHIELD	Enquire	To Order
	69555100	PIPE SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67663900	REAR UNDERSHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144443	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80987100	UPPER TUNNEL HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80987200	FRONT TUNNEL HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80987300	RH TUNNEL HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80987500	LH TUNNEL HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80987400	RH REAR TUNNEL HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80987600	LH REAR TUNNEL HEAT SHIELD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	68120900	COMPLETE TUNNEL HEAT SHIELD	68120900 COMPLETE TUNNEL HEAT SHIELD Applicable for "60°anniversario"; Applicable up to Ass. No. 74052; Applicable for F1 gearbox	-	1	Enquire
1	68120900	COMPLETE TUNNEL HEAT SHIELD	68120900 COMPLETE TUNNEL HEAT SHIELD Applicable for enhanced and "OTO" versions; Applicable up to Ass. No. 77381; Applicable for F1 gearbox	-	1	Enquire
1	80988600	COMPLETE TUNNEL HEAT SHIELD	80988600 COMPLETE TUNNEL HEAT SHIELD Applicable for "60°anniversario"; Applicable from Ass. No. 74053; Applicable for F1 gearbox	-	1	Enquire
1	80988600	COMPLETE TUNNEL HEAT SHIELD	80988600 COMPLETE TUNNEL HEAT SHIELD Applicable for enhanced and "OTO" versions; Applicable from Ass. No. 77382; Applicable for F1 gearbox	-	1	Enquire
1	68120800	COMPLETE TUNNEL HEAT SHIELD	68120800 COMPLETE TUNNEL HEAT SHIELD Not for enhanced version; Not for F1 gearbox	-	1	Enquire
1	68120800	COMPLETE TUNNEL HEAT SHIELD	68120800 COMPLETE TUNNEL HEAT SHIELD Applicable for enhanced version; Applicable up to Ass. No. 77381; Not for F1 gearbox	-	1	Enquire
1	81192300	COMPLETE TUNNEL HEAT SHIELD	81192300 COMPLETE TUNNEL HEAT SHIELD Applicable for enhanced version; Applicable from Ass. No. 77382; Not for F1 gearbox	-	1	Enquire
2	10902380	SCREW	10902380 SCREW	-	11	Enquire
3	127494	WASHER	127494 WASHER	-	11	Enquire
4	12648978	WASHER	12648978 WASHER	-	11	Enquire
5	198483	ENGINE-GEARBOX CONNECTOR PIPE	198483 ENGINE-GEARBOX CONNECTOR PIPE Applicable for F1 gearbox	-	1	Enquire
5	205804	ENGINE-GEARBOX CONNECTOR PIPE	205804 ENGINE-GEARBOX CONNECTOR PIPE Not for F1 gearbox	-	1	Enquire
5	227907	ENGINE-GEARBOX CONNECTOR PIPE	227907 ENGINE-GEARBOX CONNECTOR PIPE Applicable for Taiwan	-	1	Enquire
6	14059421	NUT	14059421 NUT	-	16	Enquire
7	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	-	4	Enquire
8	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
9	66965500	PIPE SHIELD	66965500 PIPE SHIELD	-	1	Enquire
9	69555100	PIPE SHIELD	69555100 PIPE SHIELD Applicable for CINA; No longer supplied	-	1	Enquire
10	67663900	REAR UNDERSHIELD	67663900 REAR UNDERSHIELD	-	1	Enquire
12	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
13	12648978	WASHER	12648978 WASHER	-	4	Enquire
14	144443	SHIM	144443 SHIM	-	2	Enquire
15	80987100	UPPER TUNNEL HEAT SHIELD	80987100 UPPER TUNNEL HEAT SHIELD	-	1	Enquire
16	80987200	FRONT TUNNEL HEAT SHIELD	80987200 FRONT TUNNEL HEAT SHIELD	-	1	Enquire
17	80987300	RH TUNNEL HEAT SHIELD	80987300 RH TUNNEL HEAT SHIELD	-	1	Enquire
18	80987500	LH TUNNEL HEAT SHIELD	80987500 LH TUNNEL HEAT SHIELD	-	1	Enquire
19	80987400	RH REAR TUNNEL HEAT SHIELD	80987400 RH REAR TUNNEL HEAT SHIELD	-	1	Enquire
20	80987600	LH REAR TUNNEL HEAT SHIELD	80987600 LH REAR TUNNEL HEAT SHIELD	-	1	Enquire
