Name: FUEL SYSTEM
Rating: 5.0 (1 reviews)

View All

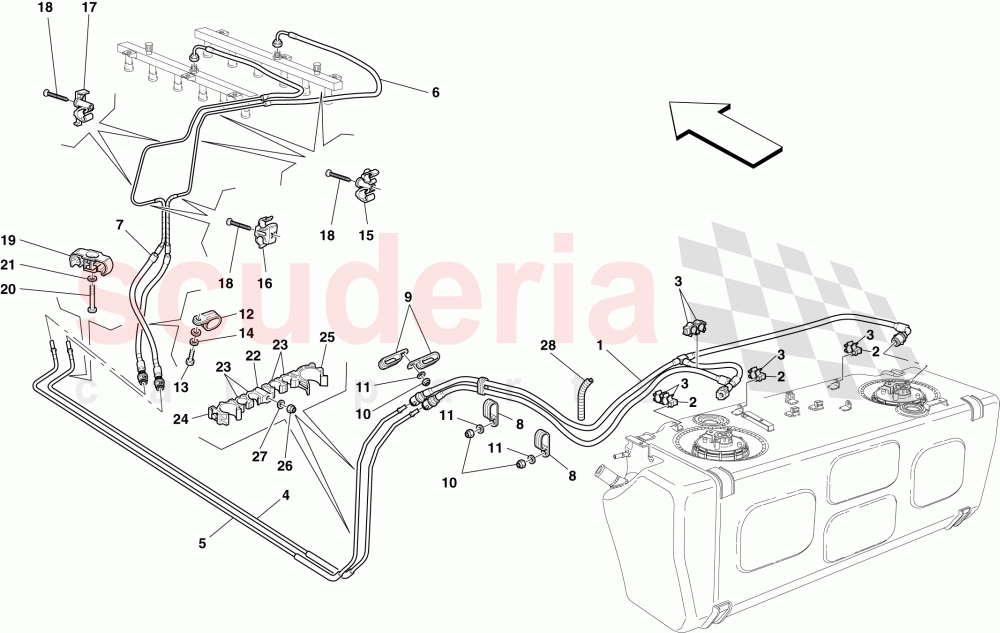

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	140162	ANCHOR FOR CLIP	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	140727	CLIP	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	210090	RH RIGID UNDERBODY PIPE	$86.63	To Order

Photo	Part No	Description	Price (each)	Stock
	210089	LH RIGID UNDERBODY PIPE	$86.63	To Order

Photo	Part No	Description	Price (each)	Stock
	10441390	BRACKET WITH SHEATH	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	61712500	BRACKET WITH SHEATH	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	186950	CLIP	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	232649	CLIP	$1.13	To Order

Photo	Part No	Description	Price (each)	Stock
	187840	CLIP	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	14441024	SCREW	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	205822	CLIP	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	15210824	SCREW	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	12544079	WASHER	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	140162	ANCHOR FOR CLIP	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	141546	CLIP	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	140727	CLIP	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	140730	FASTENER CLIP	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	$770.19	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	65758400	ZAGATO SEAL	$4.96	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
2	140162	ANCHOR FOR CLIP	140162 ANCHOR FOR CLIP	$0.23 MSRP: ~~0.95~~ (75.8% off)	3
3	140727	CLIP	140727 CLIP	$0.28 MSRP: ~~0.75~~ (62.7% off)	6
4	210090	RH RIGID UNDERBODY PIPE	210090 RH RIGID UNDERBODY PIPE	$86.63	1
5	210089	LH RIGID UNDERBODY PIPE	210089 LH RIGID UNDERBODY PIPE	$86.63	1
8	10441390	BRACKET WITH SHEATH	10441390 BRACKET WITH SHEATH	$0.57	2
9	61712500	BRACKET WITH SHEATH	61712500 BRACKET WITH SHEATH	$1.77	2
10	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
11	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	4
12	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	$0.57 MSRP: ~~1.68~~ (66.1% off)	1
13	10977524	SCREW	10977524 SCREW	$0.15	1
14	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	1
15	186950	CLIP	186950 CLIP	$0.11	3
16	232649	CLIP	232649 CLIP	$1.13	2
17	187840	CLIP	187840 CLIP	$1.05	2
18	14441024	SCREW	14441024 SCREW	$0.55	7
19	205822	CLIP	205822 CLIP	$0.41	1
20	15210824	SCREW	15210824 SCREW	$0.21	1
21	12544079	WASHER	12544079 WASHER	$0.24	1
22	140162	ANCHOR FOR CLIP	140162 ANCHOR FOR CLIP	$0.23 MSRP: ~~0.95~~ (75.8% off)	2
23	141546	CLIP	141546 CLIP	$0.23	8
24	140727	CLIP	140727 CLIP	$0.28 MSRP: ~~0.75~~ (62.7% off)	1
25	140730	FASTENER CLIP	140730 FASTENER CLIP	$0.21	1
26	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	$770.19	2
27	12637824	WASHER	12637824 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	2
28	65758400	ZAGATO SEAL	65758400 ZAGATO SEAL	$4.96	1
