Ferrari 612 Scaglietti - LUBRICATION SYSTEM - TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
196276 OIL TANK Enquire To Order
196276 OIL TANK Enquire To Order
Photo Part No Description Price (each) Stock
180320 COPMLETE TANK PLUG Enquire To Order
Photo Part No Description Price (each) Stock
180585 Oil Tank Cap Gasket Enquire IN STOCK
Photo Part No Description Price (each) Stock
199105 DIPSTICK Enquire To Order
Photo Part No Description Price (each) Stock
233118 O-RING Enquire IN STOCK
Photo Part No Description Price (each) Stock
196978 UPPER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
107979 STOP CAP Enquire To Order
Photo Part No Description Price (each) Stock
107978 VIBRATION DAMPER Enquire To Order
Photo Part No Description Price (each) Stock
107980 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
149707 SPACER Enquire IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
194451 INFERIOR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR Enquire IN STOCK
Photo Part No Description Price (each) Stock
153722 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
151684 OIL PICKUP Enquire To Order
Photo Part No Description Price (each) Stock
111352 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
293107 THREADED PLUG Enquire IN STOCK
Photo Part No Description Price (each) Stock
10261460 GASKET Enquire IN STOCK
Photo Part No Description Price (each) Stock
100332 OIL PICKUP FILTER Enquire IN STOCK
Photo Part No Description Price (each) Stock
125521 O-RING D78.97-8X100 Enquire IN STOCK
Photo Part No Description Price (each) Stock
11500524 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire IN STOCK
Photo Part No Description Price (each) Stock
138149 THREADED CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
898271 GASKET Enquire IN STOCK
Photo Part No Description Price (each) Stock
198403 DELIVERY PIPE FROM TANK TO PUMP Enquire To Order
Photo Part No Description Price (each) Stock
138150 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
144487 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
199509 RETURN PIPE FROM RADIATOR TO TANK Enquire To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath Enquire IN STOCK
Photo Part No Description Price (each) Stock
10902224 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
202152 BELLOW Enquire To Order
Photo Part No Description Price (each) Stock
202151 BELLOW Enquire To Order
Photo Part No Description Price (each) Stock
198404 OIL PIPE FROM ENGINE TO RADIATOR Enquire To Order
View All

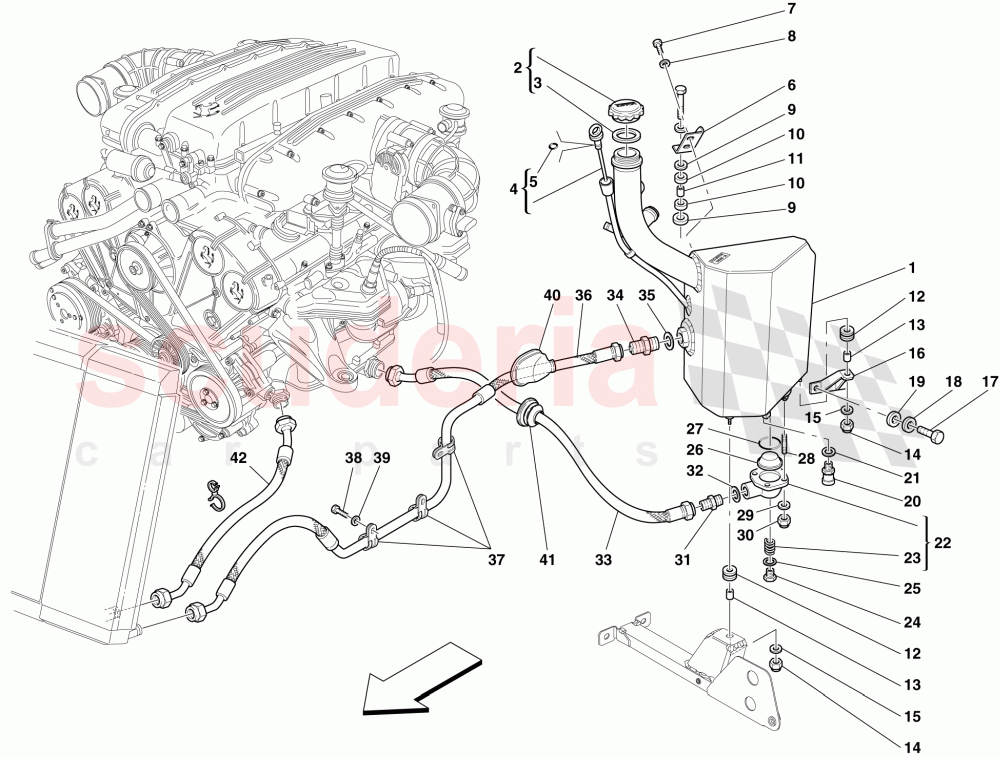

LUBRICATION SYSTEM - TANK of Ferrari Ferrari 612 Scaglietti Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 196276
OIL TANK
Applicable up to Ass. No. 65897 		- 1 Enquire
1 196276
OIL TANK
Applicable from Ass. No. 65898 		- 1 Enquire
2 180320
COPMLETE TANK PLUG 		- 1 Enquire
3 180585
Oil Tank Cap Gasket
IN STOCK 		- 1 Enquire
4 199105
DIPSTICK 		- 1 Enquire
5 233118
O-RING
IN STOCK 		- 1 Enquire
6 196978
UPPER BRACKET 		- 1 Enquire
7 10977524
SCREW 		- 2 Enquire
8 12643724
WASHER
IN STOCK 		- 2 Enquire
9 107979
STOP CAP 		- 2 Enquire
10 107978
VIBRATION DAMPER 		- 2 Enquire
11 107980
SHIM 		- 1 Enquire
12 812273
CABLE GROMMET 		- 2 Enquire
13 149707
SPACER
IN STOCK 		- 2 Enquire
14 14059290
FLANGED NUT M6
IN STOCK 		- 2 Enquire
15 12643724
WASHER
IN STOCK 		- 2 Enquire
16 194451
INFERIOR BRACKET 		- 1 Enquire
17 10902424
SCREW
IN STOCK 		- 2 Enquire
18 12643724
WASHER
IN STOCK 		- 2 Enquire
19 127494
WASHER
IN STOCK 		- 2 Enquire
20 180137
TEMPERATURE SENSOR
IN STOCK 		- 1 Enquire
21 153722
GASKET 		- 1 Enquire
22 151684
OIL PICKUP 		- 1 Enquire
23 111352
THREADED INSERT 		- 1 Enquire
24 293107
THREADED PLUG
IN STOCK 		- 1 Enquire
25 10261460
GASKET
IN STOCK 		- 1 Enquire
26 100332
OIL PICKUP FILTER
IN STOCK 		- 1 Enquire
27 125521
O-RING D78.97-8X100
IN STOCK 		- 1 Enquire
28 11500524
STUD BOLT 		- 4 Enquire
29 11197774
WAVY WASHER D.6.4 X 12 X 1.2
IN STOCK 		- 4 Enquire
30 14059290
FLANGED NUT M6
IN STOCK 		- 4 Enquire
31 138149
THREADED CONNECTOR 		- 1 Enquire
32 898271
GASKET
IN STOCK 		- 1 Enquire
33 198403
DELIVERY PIPE FROM TANK TO PUMP 		- 1 Enquire
34 138150
CONNECTOR 		- 1 Enquire
35 144487
GASKET 		- 1 Enquire
36 199509
RETURN PIPE FROM RADIATOR TO TANK 		- 1 Enquire
37 291225
P clip Bracket With Sheath
IN STOCK 		- 4 Enquire
38 10902224
SCREW
IN STOCK 		- 4 Enquire
39 127494
WASHER
IN STOCK 		- 4 Enquire
40 202152
BELLOW 		- 1 Enquire
41 202151
BELLOW 		- 1 Enquire
42 198404
OIL PIPE FROM ENGINE TO RADIATOR 		- 1 Enquire
