Primary Gearbox Shaft Gears And Gearbox Oil Pump

Ferrari 612 Scaglietti

Find Your Part

Ferrari 612 Scaglietti - PRIMARY GEARBOX SHAFT GEARS AND GEARBOX OIL PUMP

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
144502 PRIMARY SHAFT BEARING, OIL PUMP SIDE Enquire To Order
Photo Part No Description Price (each) Stock
144444 MOUNTING RING Enquire To Order
Photo Part No Description Price (each) Stock
13839224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
195991 PAD FOR SYNCHRONIZER/BALL/ Enquire To Order
Photo Part No Description Price (each) Stock
10269550 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
14452981 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
197563 5th SPEED GEAR Enquire To Order
Photo Part No Description Price (each) Stock
189689 COMPLETE 5th AND 6th SPEED SYNCHRONISER Enquire To Order
Photo Part No Description Price (each) Stock
189657 COMPLETE 3rd AND 4th SPEED SYNCHRONISER Enquire To Order
Photo Part No Description Price (each) Stock
204984 OIL RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
204983 OIL DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
195810 RING Enquire To Order
Photo Part No Description Price (each) Stock
189700 RING Enquire To Order
Photo Part No Description Price (each) Stock
189693 6th SPEED GEAR Enquire To Order
Photo Part No Description Price (each) Stock
189573 CAP Enquire To Order
Photo Part No Description Price (each) Stock
228055 ROLLER BEARING Enquire To Order
Photo Part No Description Price (each) Stock
210495 PRIMARY GEARBOX SHAFT Enquire To Order
210495 PRIMARY GEARBOX SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
14601270 SPRING PIN Enquire To Order
Photo Part No Description Price (each) Stock
109724 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
163684 RING NUT Enquire To Order
Photo Part No Description Price (each) Stock
196155 COMPLETE OIL PUMP BODY Enquire To Order
196155 COMPLETE OIL PUMP BODY Enquire To Order
Photo Part No Description Price (each) Stock
16044321 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
163684 RING NUT Enquire To Order
Photo Part No Description Price (each) Stock
102704 ALIGNMENT DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
14326150 CAP Enquire To Order
Photo Part No Description Price (each) Stock
14303521 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10571379 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
185458 COMPLETE GEARBOX OIL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
137192 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
135770 BALL Enquire To Order
Photo Part No Description Price (each) Stock
171889 SPRING Enquire To Order
Photo Part No Description Price (each) Stock
162315 CAP Enquire To Order
Photo Part No Description Price (each) Stock
11057576 SEEGER RING Enquire To Order
Photo Part No Description Price (each) Stock
150577 CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
10261460 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
137192 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
14453281 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
189570 REVERSE IDLER GEAR Enquire To Order
210496 REVERSE IDLER GEAR Enquire To Order
Photo Part No Description Price (each) Stock
189707 RING NUT Enquire To Order
Photo Part No Description Price (each) Stock
189708 RING NUT Enquire To Order
Photo Part No Description Price (each) Stock
189704 SHIM Enquire To Order
189709 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
109002 ROLLER BEARING CAGE Enquire To Order
Photo Part No Description Price (each) Stock
189705 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
109002 ROLLER BEARING CAGE Enquire To Order
Photo Part No Description Price (each) Stock
195809 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
109002 ROLLER BEARING CAGE Enquire To Order
Photo Part No Description Price (each) Stock
195809 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
109002 ROLLER BEARING CAGE Enquire To Order
Photo Part No Description Price (each) Stock
189656 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
197562 4th SPEED GEAR Enquire To Order
Photo Part No Description Price (each) Stock
189659 3rd SPEED GEAR Enquire To Order
Photo Part No Description Price (each) Stock
211960 PIN Enquire To Order
211960 PIN Enquire To Order
Photo Part No Description Price (each) Stock
158272 SNAP RING Enquire To Order
211962 SNAP RING Enquire To Order
Photo Part No Description Price (each) Stock
193891 SHIM WASHER Enquire To Order
193891 SHIM WASHER Enquire To Order
193892 SHIM WASHER Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
104256 Roller Bearing Cage Enquire To Order
Photo Part No Description Price (each) Stock
228054 ROLLER BEARING Enquire To Order
Photo Part No Description Price (each) Stock
144511 STOP RING Enquire To Order
Photo Part No Description Price (each) Stock
211961 SPACER BUSHING Enquire To Order
View All

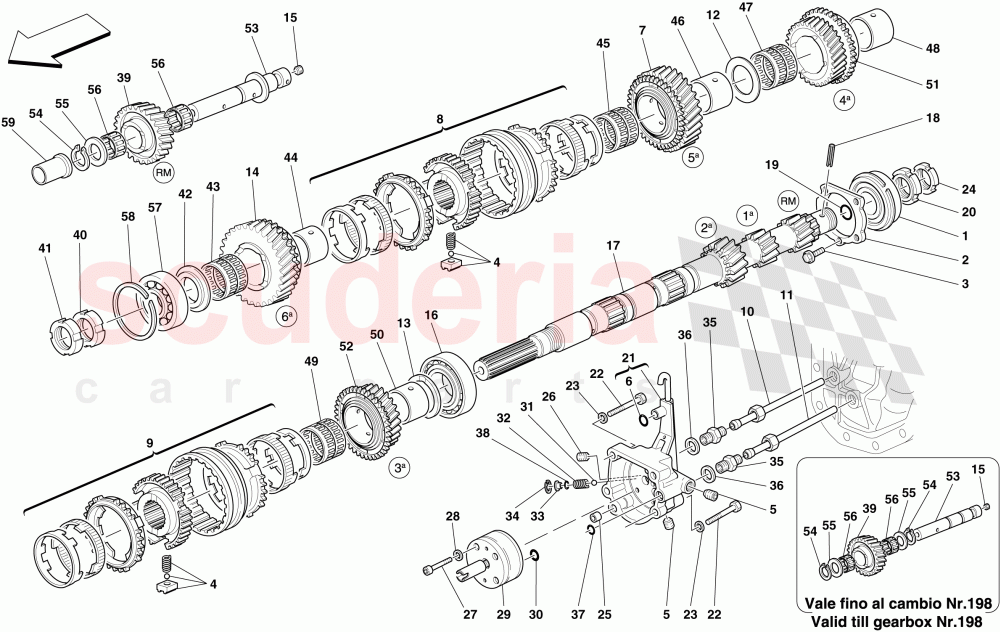

PRIMARY GEARBOX SHAFT GEARS AND GEARBOX OIL PUMP of Ferrari Ferrari 612 Scaglietti Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 144502
PRIMARY SHAFT BEARING, OIL PUMP SIDE 		- 1 Enquire
2 144444
MOUNTING RING 		- 1 Enquire
3 13839224
SCREW 		- 1 Enquire
4 195991
PAD FOR SYNCHRONIZER/BALL/ 		- 2 Enquire
5 10269550
THREADED PLUG 		- 2 Enquire
6 14452981
O-RING 		- 1 Enquire
7 197563
5th SPEED GEAR 		- 1 Enquire
8 189689
COMPLETE 5th AND 6th SPEED SYNCHRONISER 		- 1 Enquire
9 189657
COMPLETE 3rd AND 4th SPEED SYNCHRONISER 		- 1 Enquire
10 204984
OIL RETURN PIPE 		- 1 Enquire
11 204983
OIL DELIVERY PIPE 		- 1 Enquire
12 195810
RING 		- 1 Enquire
13 189700
RING 		- 1 Enquire
14 189693
6th SPEED GEAR 		- 1 Enquire
15 189573
CAP 		- 1 Enquire
16 228055
ROLLER BEARING 		- 1 Enquire
17 210495
PRIMARY GEARBOX SHAFT
Applicable up to gearbox No. 197; Applicable up to engine No. 90177 		- 1 Enquire
17 210495
PRIMARY GEARBOX SHAFT
Applicable from gearbox No. 3; Applicable from engine No. 90178 		- 1 Enquire
18 14601270
SPRING PIN 		- 1 Enquire
19 109724
O-RING 		- 1 Enquire
20 163684
RING NUT 		- 1 Enquire
21 196155
COMPLETE OIL PUMP BODY 		- 1 Enquire
21 196155
COMPLETE OIL PUMP BODY
With complete oil pump body 		- 1 Enquire
22 16044321
SCREW 		- 4 Enquire
23 12601374
WASHER 		- 4 Enquire
24 163684
RING NUT 		- 1 Enquire
25 102704
ALIGNMENT DOWEL 		- 1 Enquire
26 14326150
CAP 		- 1 Enquire
27 14303521
SCREW 		- 4 Enquire
28 10571379
WASHER 		- 4 Enquire
29 185458
COMPLETE GEARBOX OIL PUMP 		- 1 Enquire
30 137192
O-RING 		- 1 Enquire
31 135770
BALL 		- 1 Enquire
32 171889
SPRING 		- 1 Enquire
33 162315
CAP 		- 1 Enquire
34 11057576
SEEGER RING 		- 1 Enquire
35 150577
CONNECTOR 		- 2 Enquire
36 10261460
GASKET 		- 2 Enquire
37 137192
O-RING 		- 1 Enquire
38 14453281
O-RING 		- 1 Enquire
39 189570
REVERSE IDLER GEAR
Applicable up to gearbox No. 197; Applicable up to engine No. 90177 		- 1 Enquire
39 210496
REVERSE IDLER GEAR
Applicable from gearbox No. 3; Applicable from engine No. 90178 		- 1 Enquire
40 189707
RING NUT 		- 1 Enquire
41 189708
RING NUT 		- 1 Enquire
42 189704
SHIM
Th. 3.9 mm 		- 1 Enquire
42 189709
SHIM
Th. 4.15 mm 		- 1 Enquire
43 109002
ROLLER BEARING CAGE 		- 1 Enquire
44 189705
BUSHING 		- 1 Enquire
45 109002
ROLLER BEARING CAGE 		- 1 Enquire
46 195809
BUSHING 		- 1 Enquire
47 109002
ROLLER BEARING CAGE 		- 1 Enquire
48 195809
BUSHING 		- 1 Enquire
49 109002
ROLLER BEARING CAGE 		- 1 Enquire
50 189656
BUSHING 		- 1 Enquire
51 197562
4th SPEED GEAR 		- 1 Enquire
52 189659
3rd SPEED GEAR 		- 1 Enquire
53 211960
PIN
Applicable up to gearbox No. 198 		- 1 Enquire
53 211960
PIN
Applicable from gearbox No. 199 		- 1 Enquire
54 158272
SNAP RING
Applicable up to gearbox No. 198 		- 2 Enquire
54 211962
SNAP RING
Applicable from gearbox No. 199 		- 1 Enquire
55 193891
SHIM WASHER
Th. 4 mm; Applicable up to gearbox No. 198 		- 2 Enquire
55 193891
SHIM WASHER
Th. 4 mm; Applicable from gearbox No. 199 		- 1 Enquire
55 193892
SHIM WASHER
Th. 4.1 mm; Applicable up to gearbox No. 198 		- 2 Enquire
55 193892
SHIM WASHER
Th. 4.1 mm; Applicable from gearbox No. 199 		- 1 Enquire
55 193893
SHIM WASHER
Th. 3.9 mm; Applicable up to gearbox No. 198 		- 2 Enquire
55 193893
SHIM WASHER
Th. 3.9 mm; Applicable from gearbox No. 199 		- 1 Enquire
56 104256
Roller Bearing Cage 		- 2 Enquire
57 228054
ROLLER BEARING 		- 1 Enquire
58 144511
STOP RING 		- 1 Enquire
59 211961
SPACER BUSHING
Applicable from gearbox No. 199 		- 1 Enquire
