FUEL TANK - FILLER NECK AND PIPES of Ferrari Ferrari 612 Scaglietti

View All

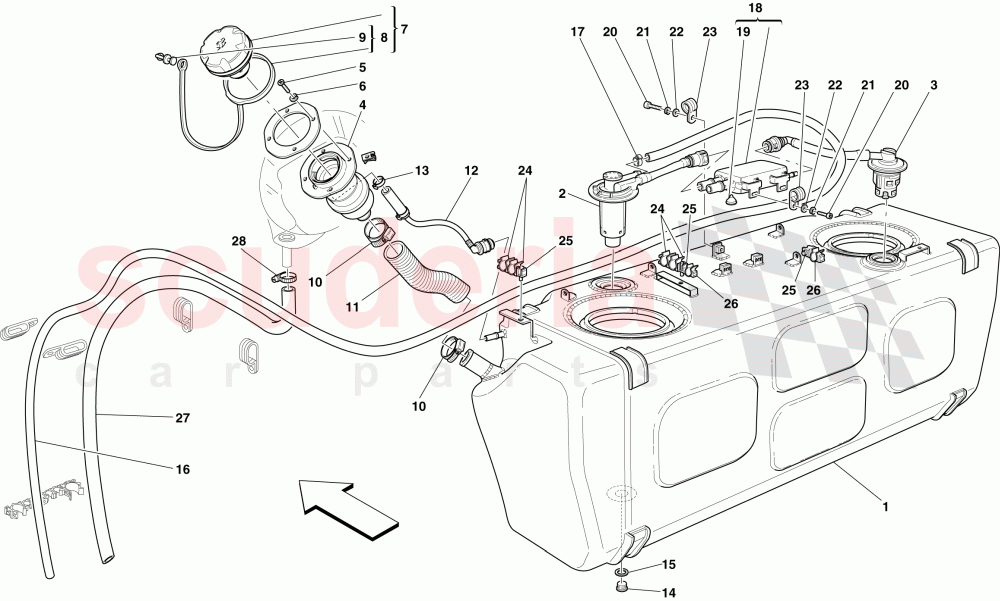

Ferrari 612 Scaglietti - FUEL TANK - FILLER NECK AND PIPES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	261174	MULTIFUNCTION VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187550	TANK BREATHER VALVE	Enquire	To Order
	261175	TANK BREATHER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183431	PIPE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190469	TANK CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196949	RING - FUEL TANK	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	186172	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11449470	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193703	VAPOUR RECIRCULATION PIPE	Enquire	To Order
	255659	VAPOUR RECIRCULATION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148045	FUEL DRAIN PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123622	O-Ring	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191495	VAPOUR SEPARATOR	Enquire	To Order
	255607	VAPOUR SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14622387	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238108	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140727	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140162	ANCHOR FOR CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145543	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208642	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	261174	MULTIFUNCTION VALVE	261174 MULTIFUNCTION VALVE Applicable from Ass. No. 90439	-	1	Enquire
3	187550	TANK BREATHER VALVE	187550 TANK BREATHER VALVE Applicable up to Ass. No. 90438	-	1	Enquire
3	261175	TANK BREATHER VALVE	261175 TANK BREATHER VALVE Applicable from Ass. No. 90439	-	1	Enquire
4	183431	PIPE UNION	183431 PIPE UNION	-	1	Enquire
5	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM	-	4	Enquire
6	62769800	WASHER	62769800 WASHER	-	4	Enquire
7	190469	TANK CAP	190469 TANK CAP	-	1	Enquire
8	196949	RING - FUEL TANK ARRIVING SOON	196949 RING - FUEL TANK ARRIVING SOON	-	1	Enquire
9	186172	CLIP	186172 CLIP	-	1	Enquire
10	11449470	COLLAR	11449470 COLLAR	-	2	Enquire
12	193703	VAPOUR RECIRCULATION PIPE	193703 VAPOUR RECIRCULATION PIPE Applicable up to Ass. No. 90438	-	1	Enquire
12	255659	VAPOUR RECIRCULATION PIPE	255659 VAPOUR RECIRCULATION PIPE Applicable from Ass. No. 90439	-	1	Enquire
13	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	1	Enquire
14	148045	FUEL DRAIN PLUG	148045 FUEL DRAIN PLUG	-	1	Enquire
15	123622	O-Ring ARRIVING SOON	123622 O-Ring ARRIVING SOON	-	1	Enquire
17	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	1	Enquire
18	191495	VAPOUR SEPARATOR	191495 VAPOUR SEPARATOR Applicable up to Ass. No. 90438	-	1	Enquire
18	255607	VAPOUR SEPARATOR	255607 VAPOUR SEPARATOR Applicable from Ass. No. 90439	-	1	Enquire
19	14622387	CAP	14622387 CAP	-	1	Enquire
20	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	3	Enquire
21	238108	WASHER	238108 WASHER	-	3	Enquire
22	14498801	WASHER	14498801 WASHER	-	3	Enquire
23	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	3	Enquire
24	140727	CLIP	140727 CLIP	-	4	Enquire
25	140162	ANCHOR FOR CLIP	140162 ANCHOR FOR CLIP	-	3	Enquire
26	145543	CLIP	145543 CLIP	-	2	Enquire
27	208642	PIPE	208642 PIPE	-	1	Enquire
28	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
