Find Your Part

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 458 Speciale Aperta

View All

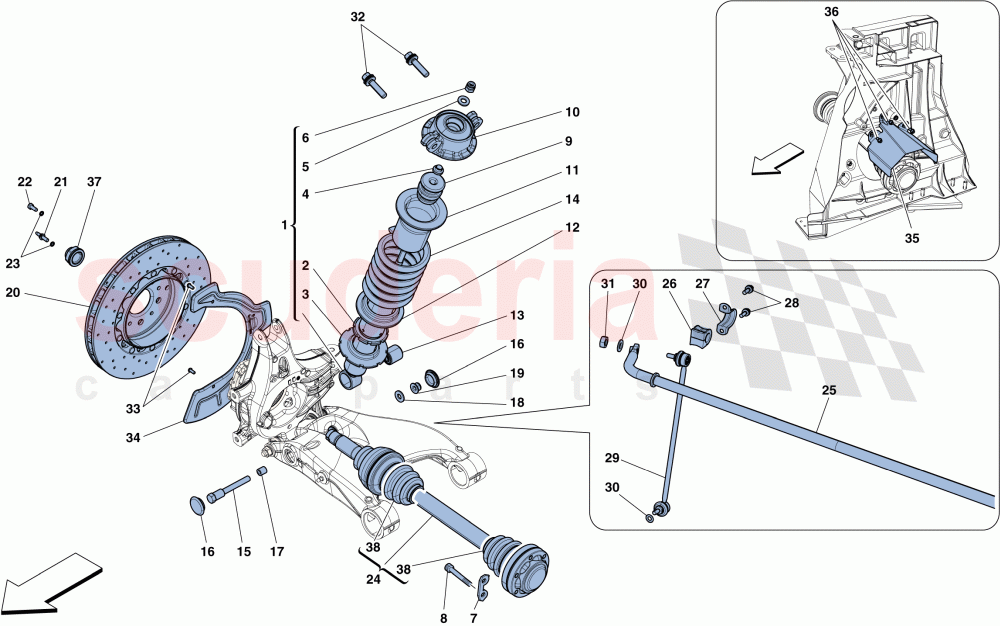

Ferrari 458 Speciale Aperta - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	289729	REAR SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220351	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286402	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220383	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220377	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220378	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220325	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281221	ENDSTOP BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250394	STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212517	UPPER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188996	LOWER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157630	BALL JOINT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	302531	SHOCK ABSORBER SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246962	SPECIAL SCREW M12 X 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14507987	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237821	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255271	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228131	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228132	SPRING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	825203	REAR AXLE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289880	STABILISER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240824	BUSH	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	244778	RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264117	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250452	LH BALL-JOINT TIE-ROD	Enquire	To Order
	250453	RH BALL-JOINT TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10791014	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248790	SCREW M12 X 1.25 X 50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257423	LH REAR DISC SHIELD	Enquire	To Order
	257424	RH REAR DISC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250811	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203780	Hub Nut Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70001388	GAITER REPLACEMENT KIT	Enquire	To Order
	70001387	GAITER REPLACEMENT KIT	Enquire	ARRIVING SOON

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	289729	REAR SHOCK ABSORBER	289729 REAR SHOCK ABSORBER	-	2	Enquire
2	220351	RING NUT	220351 RING NUT	-	2	Enquire
3	286402	CAP	286402 CAP	-	2	Enquire
4	220383	BUSH	220383 BUSH	-	2	Enquire
5	220377	WASHER	220377 WASHER	-	2	Enquire
6	220378	NUT	220378 NUT	-	2	Enquire
7	220325	PLATE	220325 PLATE	-	6	Enquire
8	237590	SCREW	237590 SCREW	-	12	Enquire
9	281221	ENDSTOP BUSH	281221 ENDSTOP BUSH	-	2	Enquire
10	250394	STOP CAP	250394 STOP CAP	-	2	Enquire
11	212517	UPPER SPACER	212517 UPPER SPACER	-	2	Enquire
12	188996	LOWER SPACER	188996 LOWER SPACER	-	2	Enquire
13	157630	BALL JOINT ARRIVING SOON	157630 BALL JOINT ARRIVING SOON	-	2	Enquire
14	302531	SHOCK ABSORBER SPRING	302531 SHOCK ABSORBER SPRING	-	2	Enquire
15	246962	SPECIAL SCREW M12 X 1.25	246962 SPECIAL SCREW M12 X 1.25	-	2	Enquire
16	14507987	PLUG	14507987 PLUG	-	6	Enquire
17	237821	BUSH	237821 BUSH	-	2	Enquire
18	12646921	WASHER	12646921 WASHER	-	2	Enquire
19	255271	NUT	255271 NUT	-	2	Enquire
21	104370	SCREW	104370 SCREW	-	2	Enquire
22	228131	SCREW	228131 SCREW	-	2	Enquire
23	228132	SPRING WASHER	228132 SPRING WASHER	-	4	Enquire
24	825203	REAR AXLE SHAFT	825203 REAR AXLE SHAFT	-	2	Enquire
25	289880	STABILISER BAR	289880 STABILISER BAR	-	1	Enquire
26	240824	BUSH ARRIVING SOON	240824 BUSH ARRIVING SOON	-	2	Enquire
27	244778	RETAINER BRACKET	244778 RETAINER BRACKET	-	2	Enquire
28	264117	SCREW	264117 SCREW	-	4	Enquire
29	250452	LH BALL-JOINT TIE-ROD	250452 LH BALL-JOINT TIE-ROD	-	1	Enquire
29	250453	RH BALL-JOINT TIE-ROD	250453 RH BALL-JOINT TIE-ROD	-	1	Enquire
30	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	4	Enquire
31	10791014	NUT	10791014 NUT	-	2	Enquire
32	248790	SCREW M12 X 1.25 X 50	248790 SCREW M12 X 1.25 X 50	-	4	Enquire
33	250657	SCREW M6 X 14	250657 SCREW M6 X 14	-	6	Enquire
34	257423	LH REAR DISC SHIELD	257423 LH REAR DISC SHIELD	-	1	Enquire
34	257424	RH REAR DISC SHIELD	257424 RH REAR DISC SHIELD	-	1	Enquire
35	250811	SHIELD	250811 SHIELD	-	2	Enquire
36	16286121	SCREW	16286121 SCREW	-	6	Enquire
37	203780	Hub Nut Hex	203780 Hub Nut Hex	-	2	Enquire
38	70001388	GAITER REPLACEMENT KIT	70001388 GAITER REPLACEMENT KIT Wheel/gearbox side	-	1	Enquire
38	70001387	GAITER REPLACEMENT KIT ARRIVING SOON	70001387 GAITER REPLACEMENT KIT Gearbox side ARRIVING SOON	-	1	Enquire
