Name: VEHICLE LIFT SYSTEM
Rating: 4.7 (1 reviews)

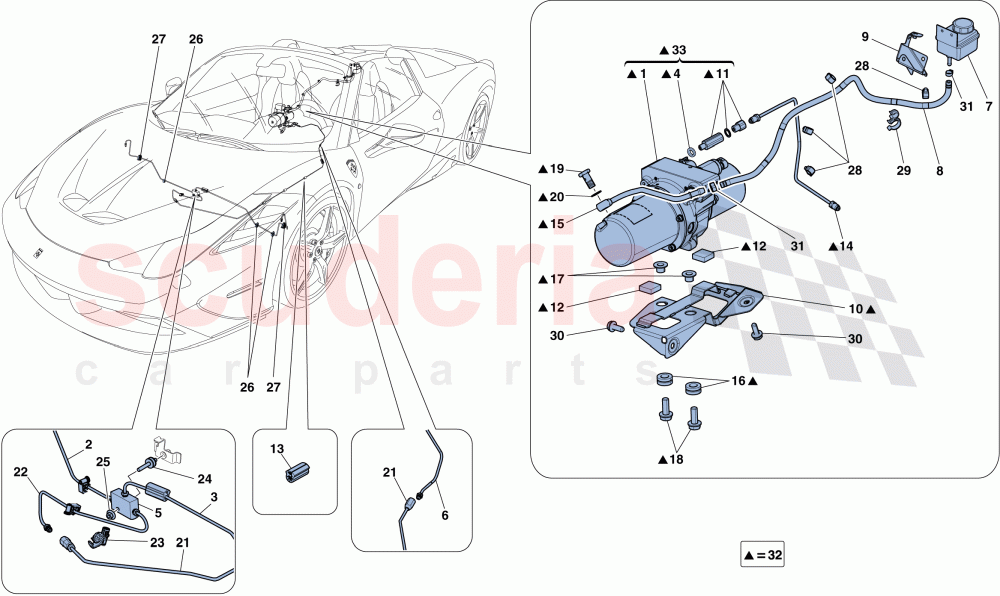

VEHICLE LIFT SYSTEM of Ferrari Ferrari 458 Speciale Aperta

View All

Ferrari 458 Speciale Aperta - VEHICLE LIFT SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	312292	COMPL. ELECTRIC PUMP	$3,950.10	To Order

Photo	Part No	Description	Price (each)	Stock
	263130	FRONT RH RIGID PIPE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	263129	FRONT LH RIGID PIPE	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	256502	GASKET	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	260257	DISTRIBUTOR BLOCK	$91.45	To Order

Photo	Part No	Description	Price (each)	Stock
	263133	REAR RIGID PIPE	$385.09	To Order

Photo	Part No	Description	Price (each)	Stock
	258573	LIFT SYSTEM FILLER TANK	$56.14	To Order

Photo	Part No	Description	Price (each)	Stock
	273310	PIPE FROM DISCONNECTOR UNION TO RESERVOIR	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	277664	RESERVOIR BRACKET	$97.86	To Order

Photo	Part No	Description	Price (each)	Stock
	291589	ELECTRIC PUMP BRACKET	$147.61	To Order

Photo	Part No	Description	Price (each)	Stock
	291590	PLUG	$1.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262737	RUBBER RETAINER	$6.56	To Order

Photo	Part No	Description	Price (each)	Stock
	291588	PIPE FROM PUMP TO DISCONNECTOR UNION	$449.27	To Order

Photo	Part No	Description	Price (each)	Stock
	291587	PIPE FROM PUMP TO REAR RIGID PIPE	$134.77	To Order

Photo	Part No	Description	Price (each)	Stock
	255047	CABLE GROMMET	$3.65	To Order

Photo	Part No	Description	Price (each)	Stock
	255048	GROMMET SHIM	$2.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	304224	SCREW	$13.86	To Order

Photo	Part No	Description	Price (each)	Stock
	259642	HOSE	$18.83	To Order

Photo	Part No	Description	Price (each)	Stock
	260155	GASKET	$3.76	To Order

Photo	Part No	Description	Price (each)	Stock
	265344	RIGID UNDERBODY PIPE	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	265343	RIGID PIPE FROM UNDERBODY TO DISTRIBUTION BLOCK	$290.06	To Order

Photo	Part No	Description	Price (each)	Stock
	265342	CLIP	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	268173	BUSH	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	249650	CLIP	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	249782	CLIP	$1.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	198273	CLIP	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	82051200	CLIP	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	11627724	Screw	$0.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	312292	COMPL. ELECTRIC PUMP	$3,950.10	To Order

Photo	Part No	Description	Price (each)	Stock
	312292	COMPL. ELECTRIC PUMP	$3,950.10	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	312292	COMPL. ELECTRIC PUMP	312292 COMPL. ELECTRIC PUMP After depletion order 312293 ref. 33; Applicable up to Ass. No. 123002; Applicable until depletion	$3,950.10	1
2	263130	FRONT RH RIGID PIPE	263130 FRONT RH RIGID PIPE	$240.67	1
3	263129	FRONT LH RIGID PIPE	263129 FRONT LH RIGID PIPE	$256.72	1
4	256502	GASKET	256502 GASKET	$0.75	1
5	260257	DISTRIBUTOR BLOCK	260257 DISTRIBUTOR BLOCK	$91.45	1
6	263133	REAR RIGID PIPE	263133 REAR RIGID PIPE	$385.09	1
7	258573	LIFT SYSTEM FILLER TANK	258573 LIFT SYSTEM FILLER TANK	$56.14	1
8	273310	PIPE FROM DISCONNECTOR UNION TO RESERVOIR	273310 PIPE FROM DISCONNECTOR UNION TO RESERVOIR	$240.67	1
9	277664	RESERVOIR BRACKET	277664 RESERVOIR BRACKET	$97.86	1
10	291589	ELECTRIC PUMP BRACKET	291589 ELECTRIC PUMP BRACKET	$147.61	1
12	291590	PLUG IN STOCK	291590 PLUG IN STOCK	$1.93	2
13	262737	RUBBER RETAINER	262737 RUBBER RETAINER	$6.56	5
14	291588	PIPE FROM PUMP TO DISCONNECTOR UNION	291588 PIPE FROM PUMP TO DISCONNECTOR UNION	$449.27	1
15	291587	PIPE FROM PUMP TO REAR RIGID PIPE	291587 PIPE FROM PUMP TO REAR RIGID PIPE	$134.77	1
16	255047	CABLE GROMMET	255047 CABLE GROMMET	$3.65	2
17	255048	GROMMET SHIM IN STOCK	255048 GROMMET SHIM IN STOCK	$2.66	2
18	304224	SCREW	304224 SCREW	$13.86	2
19	259642	HOSE	259642 HOSE	$18.83	1
20	260155	GASKET	260155 GASKET	$3.76 MSRP: ~~4.00~~ (6% off)	2
21	265344	RIGID UNDERBODY PIPE	265344 RIGID UNDERBODY PIPE	$481.36	1
22	265343	RIGID PIPE FROM UNDERBODY TO DISTRIBUTION BLOCK	265343 RIGID PIPE FROM UNDERBODY TO DISTRIBUTION BLOCK	$290.06	1
23	265342	CLIP	265342 CLIP	$0.92	1
24	268173	BUSH	268173 BUSH	$40.10	1
25	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.43	1
26	249650	CLIP	249650 CLIP	$0.41	3
27	249782	CLIP IN STOCK	249782 CLIP IN STOCK	$1.09	2
28	198273	CLIP	198273 CLIP	$1.65	4
29	82051200	CLIP	82051200 CLIP	$0.84	1
30	11627724	Screw IN STOCK	11627724 Screw IN STOCK	$0.88	2
31	13432070	HOSE COLLAR IN STOCK	13432070 HOSE COLLAR D. 15.7 IN STOCK	$0.57 MSRP: ~~1.07~~ (46.7% off)	2
32	312292	COMPL. ELECTRIC PUMP	312292 COMPL. ELECTRIC PUMP After depletion, order loose components; Applicable until depletion	$3,950.10	1
33	312292	COMPL. ELECTRIC PUMP	312292 COMPL. ELECTRIC PUMP	$3,950.10	1

Vehicle Lift System

Ferrari 458 Speciale Aperta

Ferrari 458 Speciale Aperta - VEHICLE LIFT SYSTEM
