REAR BRAKE CALLIPERS of Ferrari Ferrari 458 Speciale Aperta

View All

Ferrari 458 Speciale Aperta - REAR BRAKE CALLIPERS

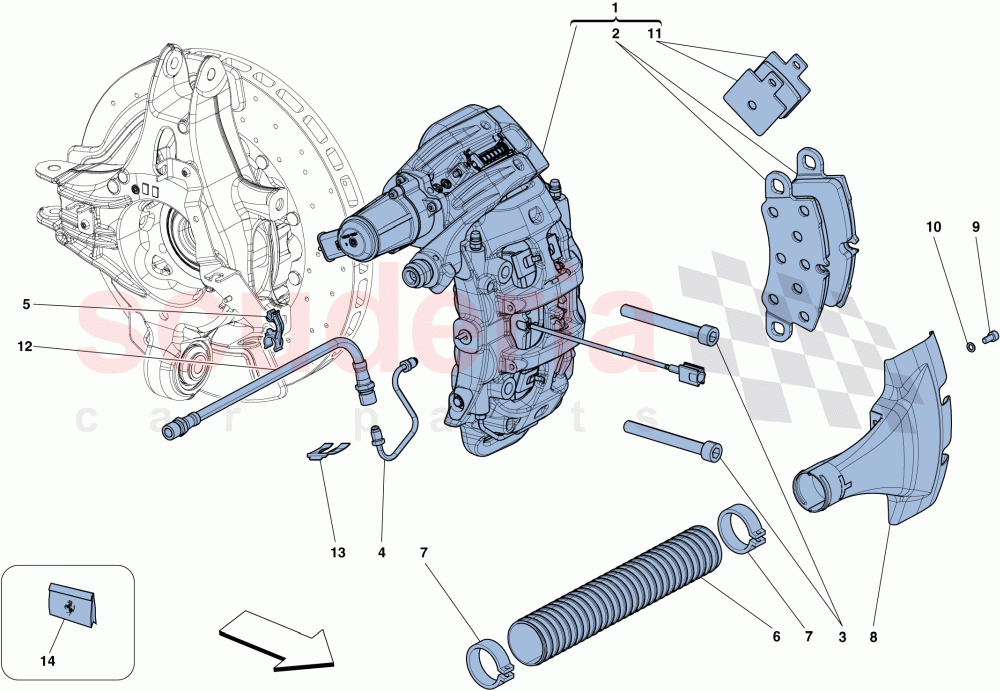

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	314874	REAR RH CALLIPER WITH PADS	Enquire	To Order
	314876	REAR RH CALLIPER WITH PADS	Enquire	To Order
	314878	REAR RH CALLIPER WITH PADS	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	70003656	SET OF REAR PADS	Enquire	To Order
	70003279	REAR PAD SET WITH SPRING	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	195167	SCREW M12 X 1.5 X 95	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299562	COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	Enquire	To Order
	299560	COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300004	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281349	COILED AIR DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	296545	REAR CALLIPER HOUSING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003667	SET OF EPB PADS	Enquire	To Order
	70003191	SET OF EPB PADS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271771	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003493	DUST GAITER KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	314874	REAR RH CALLIPER WITH PADS	314874 REAR RH CALLIPER WITH PADS Glossy Black	-	1	Enquire
1	314876	REAR RH CALLIPER WITH PADS	314876 REAR RH CALLIPER WITH PADS Scuderia Red	-	1	Enquire
1	314878	REAR RH CALLIPER WITH PADS	314878 REAR RH CALLIPER WITH PADS Gold	-	1	Enquire
1	314880	REAR RH CALLIPER WITH PADS	314880 REAR RH CALLIPER WITH PADS Blue	-	1	Enquire
1	314872	REAR RH CALLIPER WITH PADS	314872 REAR RH CALLIPER WITH PADS Anodised Black	-	1	Enquire
1	314873	REAR LH CALLIPER WITH PADS	314873 REAR LH CALLIPER WITH PADS Glossy Black	-	1	Enquire
1	314875	REAR LH CALLIPER WITH PADS	314875 REAR LH CALLIPER WITH PADS Scuderia Red	-	1	Enquire
1	314877	REAR LH CALLIPER WITH PADS	314877 REAR LH CALLIPER WITH PADS Gold	-	1	Enquire
1	314879	REAR LH CALLIPER WITH PADS	314879 REAR LH CALLIPER WITH PADS Blue	-	1	Enquire
1	314881	REAR LH CALLIPER WITH PADS	314881 REAR LH CALLIPER WITH PADS Dark grey	-	1	Enquire
1	314883	REAR LH CALLIPER WITH PADS	314883 REAR LH CALLIPER WITH PADS Aluminium	-	1	Enquire
1	314885	REAR LH CALLIPER WITH PADS	314885 REAR LH CALLIPER WITH PADS Corsa red	-	1	Enquire
1	314887	REAR LH CALLIPER WITH PADS	314887 REAR LH CALLIPER WITH PADS Yellow	-	1	Enquire
1	314871	REAR LH CALLIPER WITH PADS	314871 REAR LH CALLIPER WITH PADS Anodised Black	-	1	Enquire
1	314882	REAR RH CALLIPER WITH PADS	314882 REAR RH CALLIPER WITH PADS Dark grey	-	1	Enquire
1	314884	REAR RH CALLIPER WITH PADS	314884 REAR RH CALLIPER WITH PADS Aluminium	-	1	Enquire
1	314886	REAR RH CALLIPER WITH PADS	314886 REAR RH CALLIPER WITH PADS Corsa red	-	1	Enquire
1	314888	REAR RH CALLIPER WITH PADS	314888 REAR RH CALLIPER WITH PADS Yellow	-	1	Enquire
2	70003656	SET OF REAR PADS	70003656 SET OF REAR PADS Applicable for track usage only	-	1	Enquire
2	70003279	REAR PAD SET WITH SPRING ARRIVING SOON	70003279 REAR PAD SET WITH SPRING ARRIVING SOON	-	1	Enquire
3	195167	SCREW M12 X 1.5 X 95	195167 SCREW M12 X 1.5 X 95	-	4	Enquire
4	299562	COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	299562 COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	-	1	Enquire
4	299560	COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	299560 COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	-	1	Enquire
5	300004	CLIP	300004 CLIP	-	4	Enquire
6	281349	COILED AIR DELIVERY PIPE	281349 COILED AIR DELIVERY PIPE	-	2	Enquire
7	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	4	Enquire
8	296545	REAR CALLIPER HOUSING COVER	296545 REAR CALLIPER HOUSING COVER	-	2	Enquire
9	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	8	Enquire
10	13550224	WASHER	13550224 WASHER	-	8	Enquire
11	70003667	SET OF EPB PADS	70003667 SET OF EPB PADS Applicable from Ass. No. 125268	-	1	Enquire
11	70003191	SET OF EPB PADS	70003191 SET OF EPB PADS Applicable up to Ass. No. 125267	-	1	Enquire
12	271771	PIPE	271771 PIPE	-	2	Enquire
13	116374	CLIP	116374 CLIP	-	2	Enquire
14	70003493	DUST GAITER KIT	70003493 DUST GAITER KIT	-	1	Enquire
